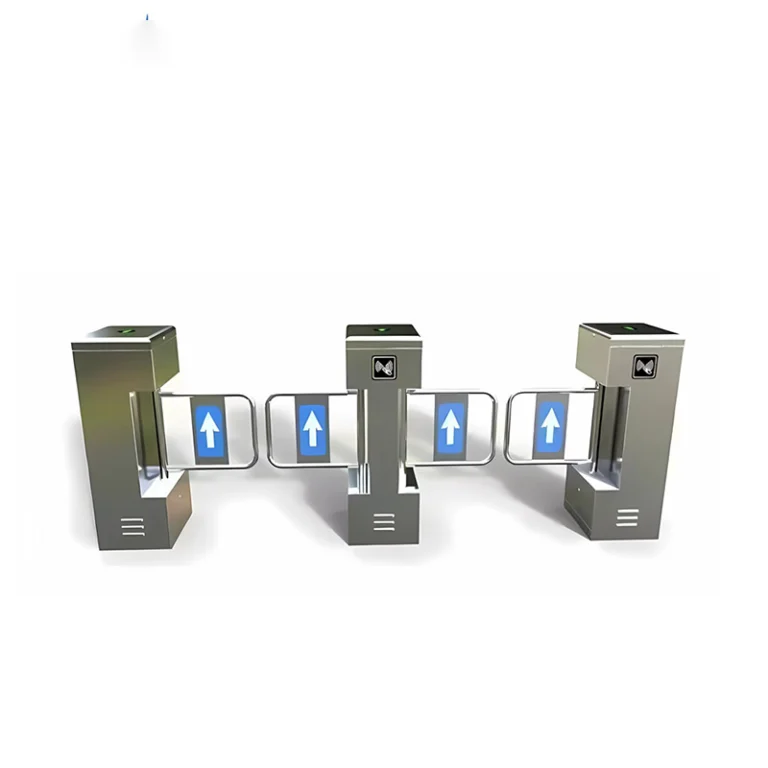

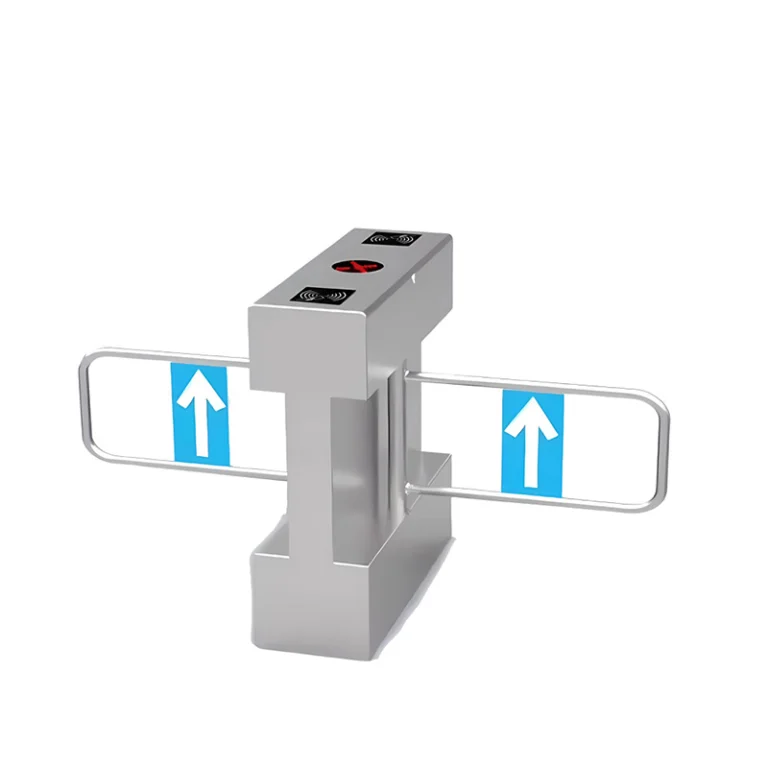

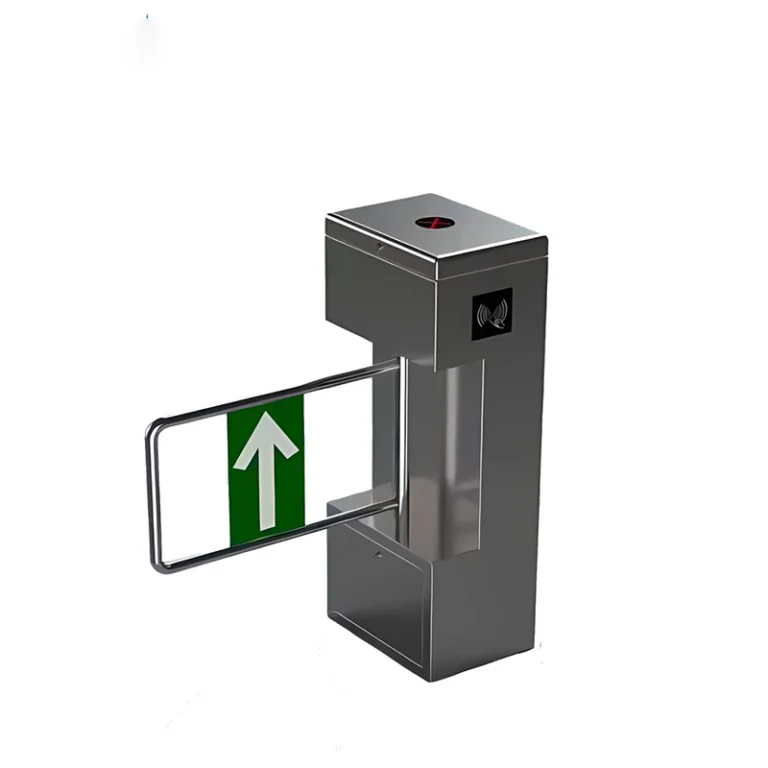

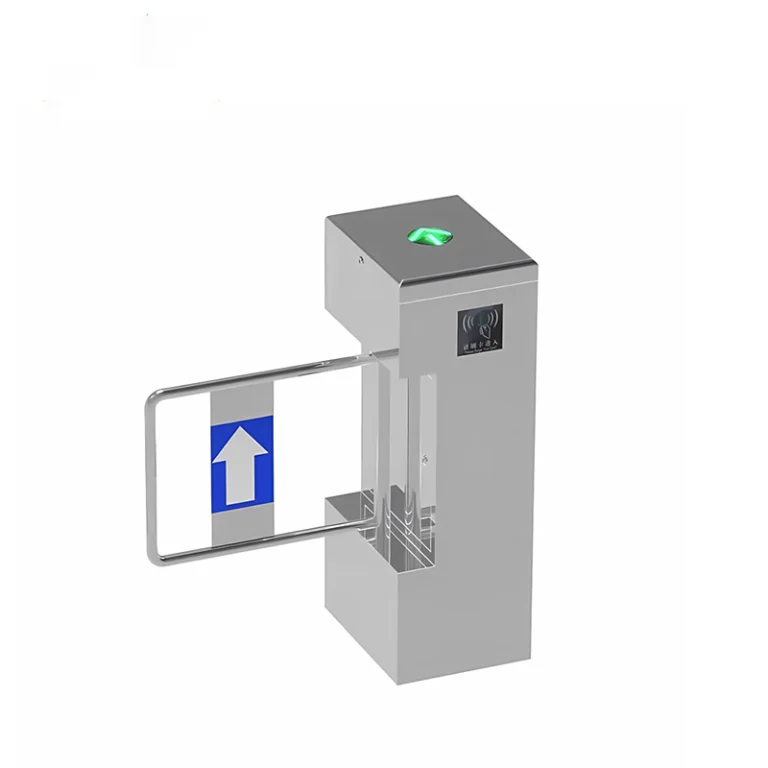

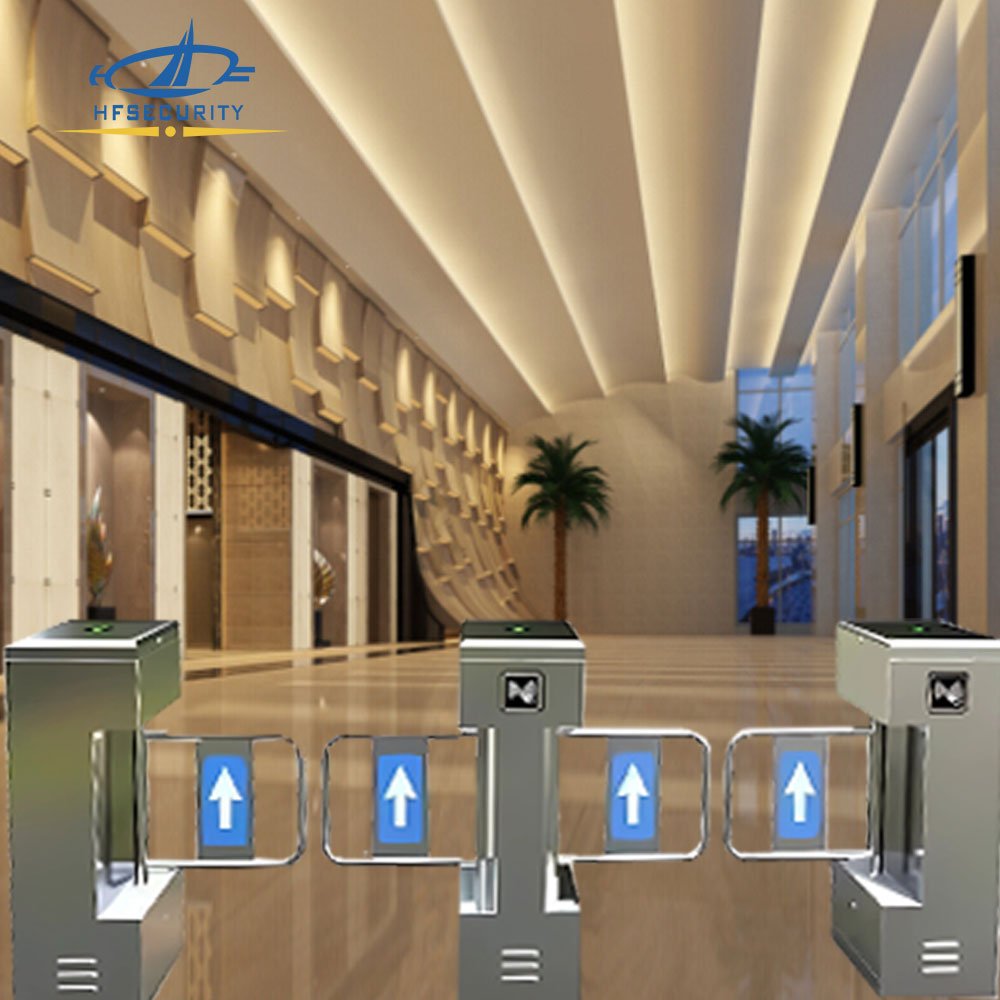

The Vertical Swing Gate HF-SG05 is a highly efficient and robust access control solution designed for various environments. Its vertical swing mechanism allows for smooth, space-saving operation, making it ideal for areas with limited horizontal clearance. Built with high-quality materials for durability and corrosion resistance, this gate provides reliable security while maintaining ease of use. Perfect for pedestrian access points, parking facilities, and restricted areas.Our company has 20 years of manufacturing experience and provides customized gate products.
Our Products
The Vertical Swing Gate HF-SG05 is equipped with advanced features for enhanced safety and convenience. In the event of a power failure, the power-off gate opening function automatically unlocks the gate lever, converting it into a free passage mode for easy evacuation. Additionally, the gate includes an anti-rotation function, which detects strong reverse rotation of the gate bar and automatically locks the system to prevent unauthorized reverse movement.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | 304 stainless steel |
| Power-off gate opening function | after power failure, the gate lever will automatically unlock and become a free passage mode,which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

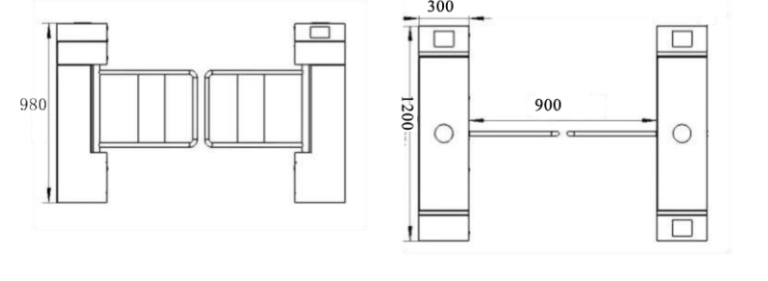

| Physical Dimensions(mm) | L280*W330*1000(mm) |
| Chassis material | 304 stainless steel |
| Channel width(mm) | ≤900 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
Our turnstile gates are designed with both efficiency and security in mind, making them the ideal solution for logistics and packaging industries. Built for high-traffic environments, these gates offer reliable access control while streamlining the movement of personnel and goods. Featuring robust construction and smart technology, they ensure smooth and secure entry and exit, enhancing operational flow.With customizable options such as biometric recognition, RFID, and NFC, our turnstiles provide flexible solutions to meet specific logistics needs. Easy to integrate with existing systems, these gates also ensure real-time monitoring and tracking, boosting both security and efficiency in your warehouse, factory, or packaging facility.
