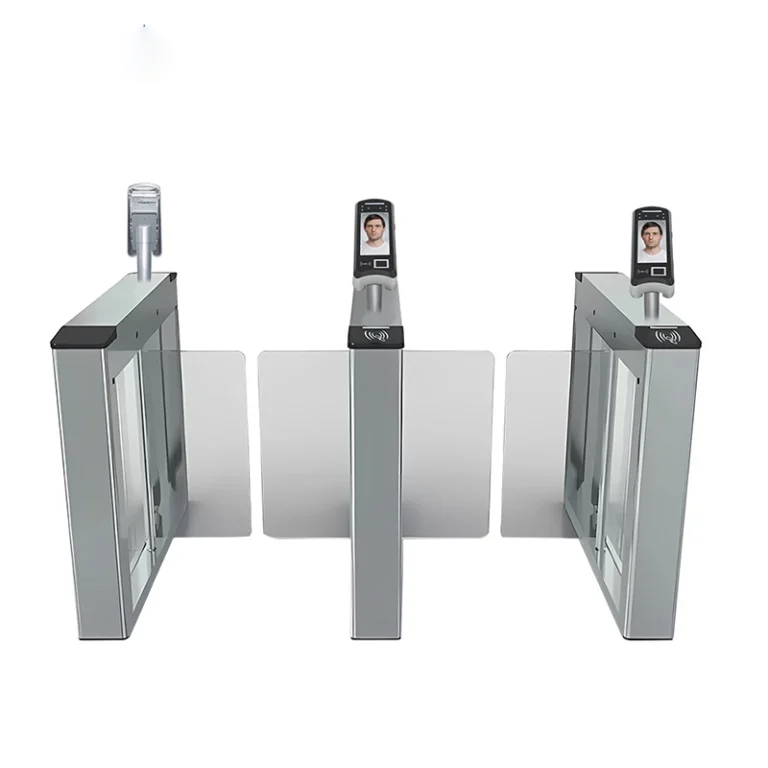

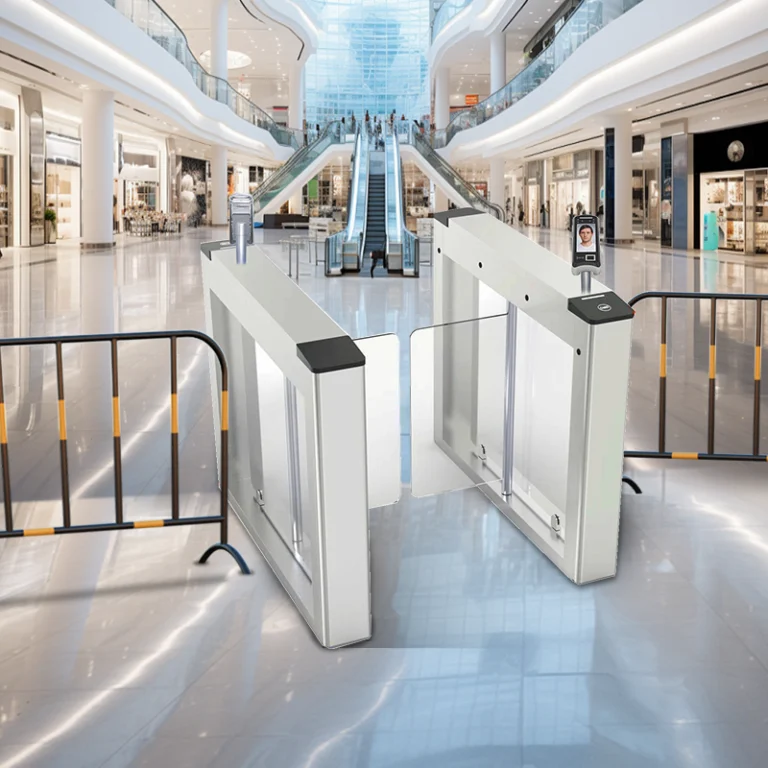

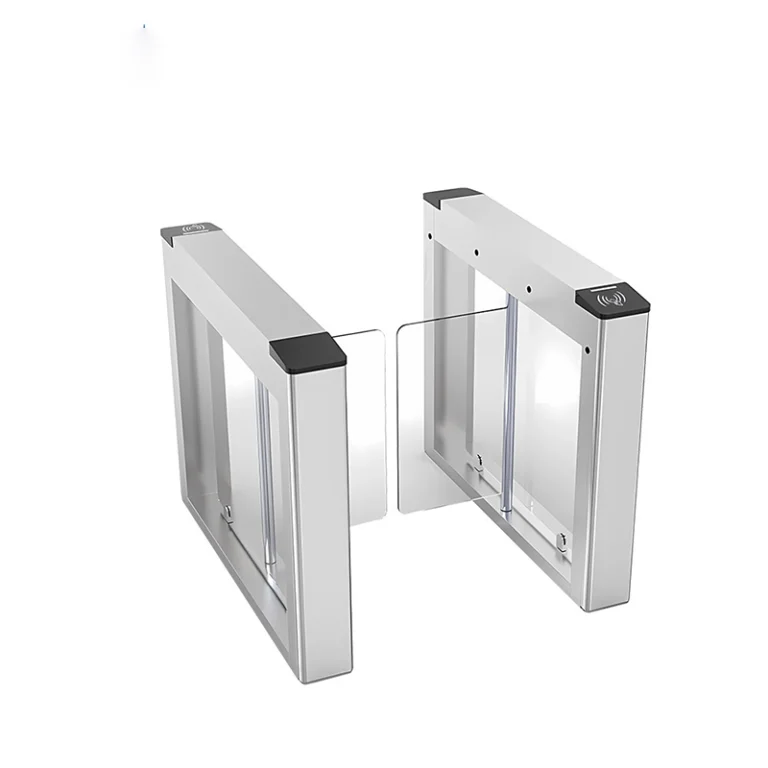

HF-SG03 Supermarket Vertical Swing Gate is a smart and efficient access control solution designed specifically for high-traffic retail environments. With its sleek design, smooth swing mechanism, and reliable performance, it helps manage customer flow while enhancing security and convenience. Whether used at supermarket entrances, exits, or staff-only areas, the HF-SG03 offers durability, easy integration, and a professional appearance that complements any modern retail space.
Our products
The HF-SG03 Supermarket Vertical Swing Gate offers smooth, space-saving access control for retail settings. It supports integration with HFSECURITY’s biometric systems such as facial recognition and fingerprint access, ensuring secure and contactless entry.
| Power supply: AC220V+20%V，50Hz |
| Working temperature:-40°C~70°C |
| Relative humidity: less than 95%, no condensation;. Passing speed: 30 people/minute (IC card) |
| Passing speed: 30 people/minute (IC card) |
| Input interface: standard switch signal |
| Communication interface: RS485 electrical standardCommunication distance: <1200 meters |
| The chassis is made of 304 stainless steel |
| Power-off gate opening function: after power failure, the gate leverwill automatically unlock and become a free passage mode, which isconvenient for evacuating people |
| Anti-rotation function: After the gate bar is rotated to a certain anglestrong reverse rotation of the gate bar will be regarded as reversedriving, and the system will automatically lock to prevent pedestriansfrom reverse driving |

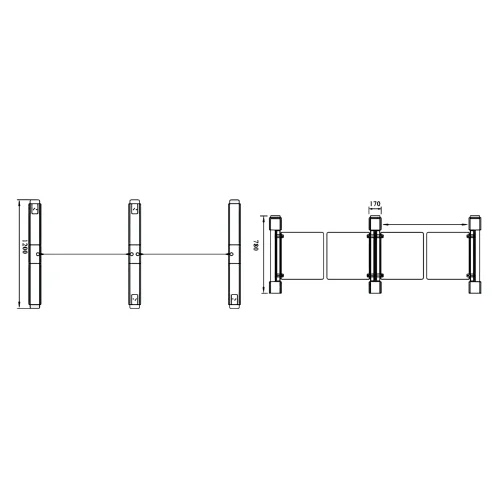

| Physical dimensions(mm) | L1200*W200*H980mm |
| Box material | SUS304 stainless steel |
| Network port | AC220+10%V 50+10%HZ |
| Power wastage | 100W |
| Working environment | -10°C~709C |
| Relative humidity | <90% |
| Rotary rod transmission angle | 120 |
| Rotary rod direction | One way or two way |
| Gate opening and closing time | 0.8-1 second adjustable |
| Traffic speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| The time required to enter thepass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90+5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, distance < 1200 meters |
| Input interface | Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Input power | DC24V |
| Communication function | Communication with PC via RS485 |
| Indicating function | Red (alarm), green (work) indicator light |
| Use/storage temperature | 45°C/-20°C-55°C |
| Use/storage temperature | 40%-80%/0%-90% |
| Vibration/impact resistance | 4.9m/s2/19.6m/s2 |
| Altitude | <1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5V+0.25 |
| Current consumption | 150mA |
| Responding speed | 60ORPM |
| Output method | Z pulse |
| Operating temperature | -40°C-125°C |
| Storage temperature | -40°C-125°C |
| Vibration resistant | 49m/s |
| Shock proof | 980m/s |
| Torque | 100Nm |
| Swing arm | 304 stainless steel material |
| Material | 304 stainless steel |
| Thickness | 8-12mm |
| Length | 600-1200mm |
| Weights | Approx. 42KG in solid weight |
At HFSECURITY, we ensure every turnstile gate is securely packaged with durable, protective materials to prevent damage during shipping. With years of export experience, our logistics team provides fast and reliable delivery worldwide. Whether by air, sea, or express, we work with trusted carriers to guarantee your turnstile gate arrives safely and on time. We also offer OEM packaging, custom labels, and pallet or wooden crate options to meet your specific requirements.
