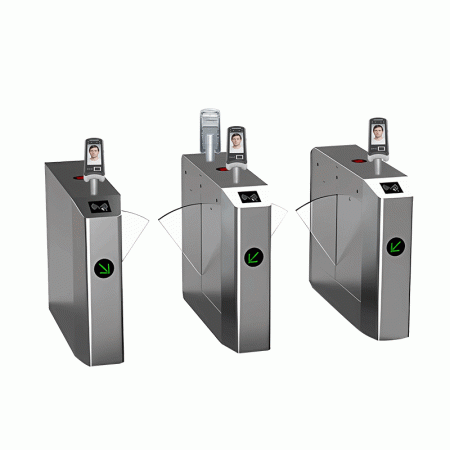

The HF-FI01 is a high-performance standard octagonal flap gate, constructed with premium 304 stainless steel for durability, corrosion resistance, and sleek aesthetics. Designed for high-traffic access control applications, it ensures smooth and secure passage.With over 20 years of manufacturing expertise, we specialize in delivering reliable and customizable solutions—supporting both OEM and ODM services to meet diverse client needs. The HF-FI01 is fully compatible with our advanced access control systems, making it an ideal choice for integrated security solutions across commercial, industrial, and public facilities.
Our Products
The HF-FI01 is a robust flap gate made from high-quality 304 stainless steel, designed for smooth and secure pedestrian access. In the event of a power failure, the gate automatically unlocks and enters free-passage mode, allowing quick and safe evacuation. It also features an advanced anti-rotation function—once the gate bar is turned past a set angle, any strong reverse rotation is detected as reverse entry and the system locks automatically to prevent it, ensuring orderly one-way traffic control.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |
| Physical Dimensions(mm) | L1200*W300*H980 |
| Chassis material | 304 stainless steel |
| Channel width(mm) | 580 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
All units are carefully packed using high-quality, export-standard wooden crates reinforced with foam padding and protective materials to ensure maximum protection against shocks, moisture, and damage during transportation. The packaging is designed for easy handling and stacking, meeting international shipping requirements. We offer flexible logistics solutions including sea freight, air freight, and express delivery to accommodate different timelines and budgets. Each shipment undergoes thorough quality checks before dispatch to guarantee that products arrive safely and in perfect condition.

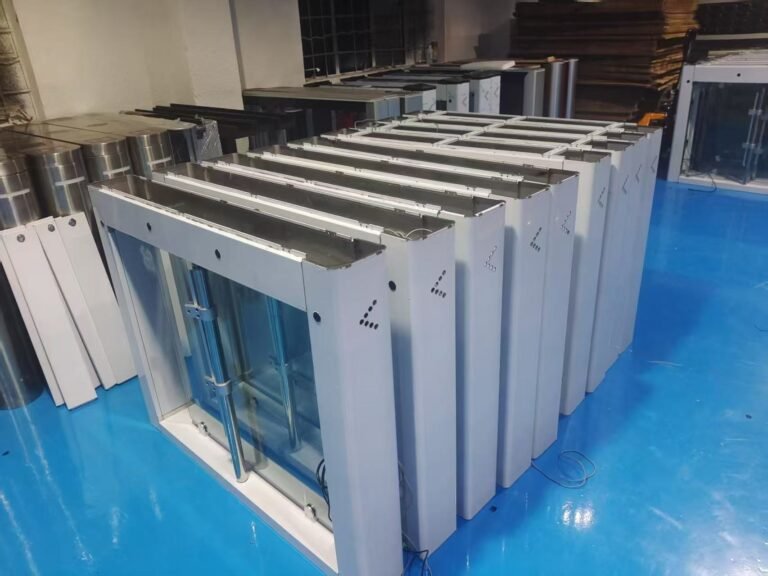

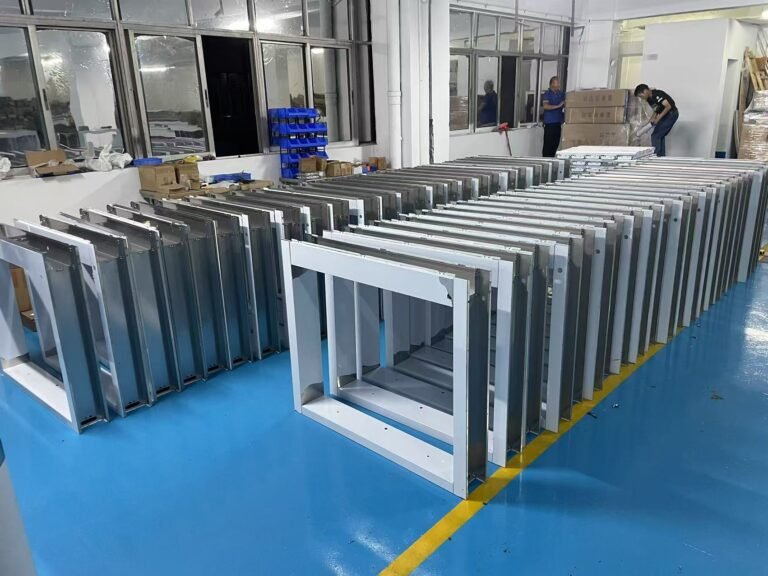

Factory Showcase
