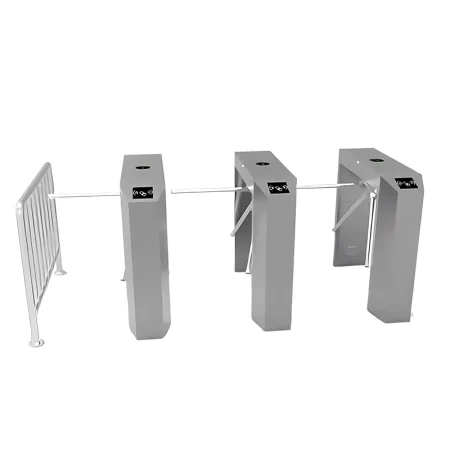

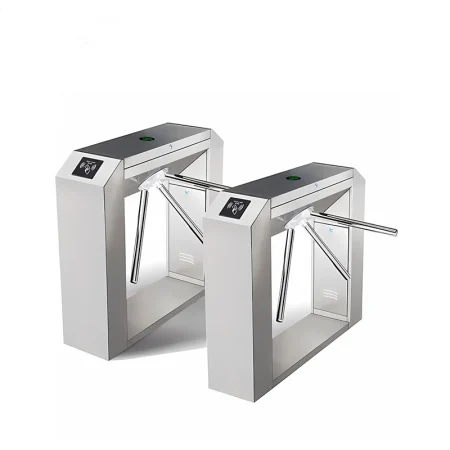

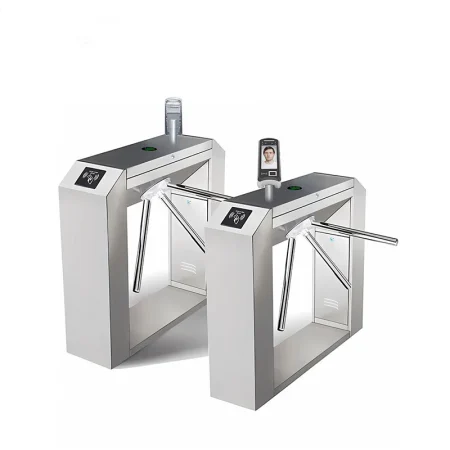

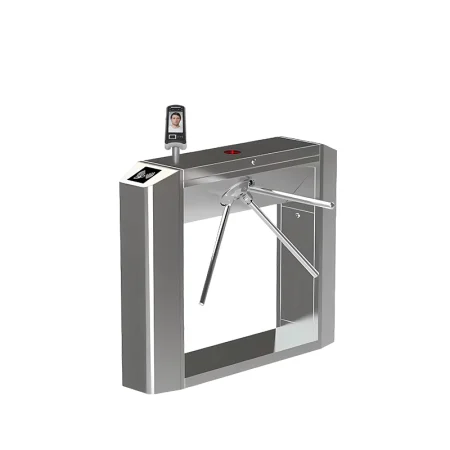

The Standard Bridge Tripod Turnstile HF-TR04 is a reliable and efficient access control solution designed for high-traffic environments. Featuring a sturdy bridge structure, this turnstile ensures smooth and secure passage while maintaining durability. Made from high-quality 304 stainless steel, it is built to withstand continuous use in both indoor and outdoor settings. With over 20 years of manufacturing experience, our company offers expert craftsmanship and customization options, including OEM & ODM services to meet your specific requirements. The HF-TR04 seamlessly integrates with our proprietary access control systems, providing a complete security solution for office buildings, commercial complexes, and public spaces.
Our Products

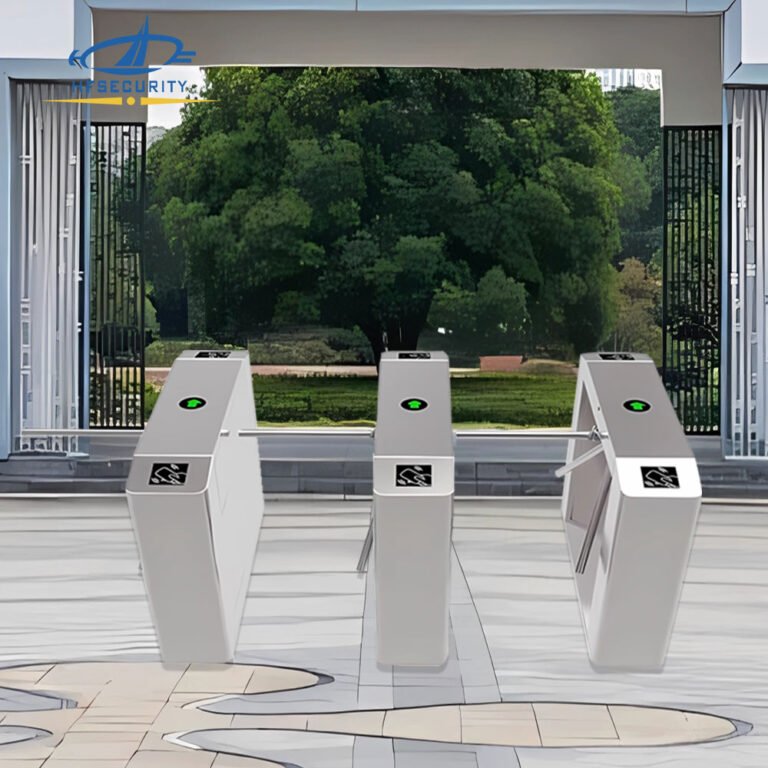

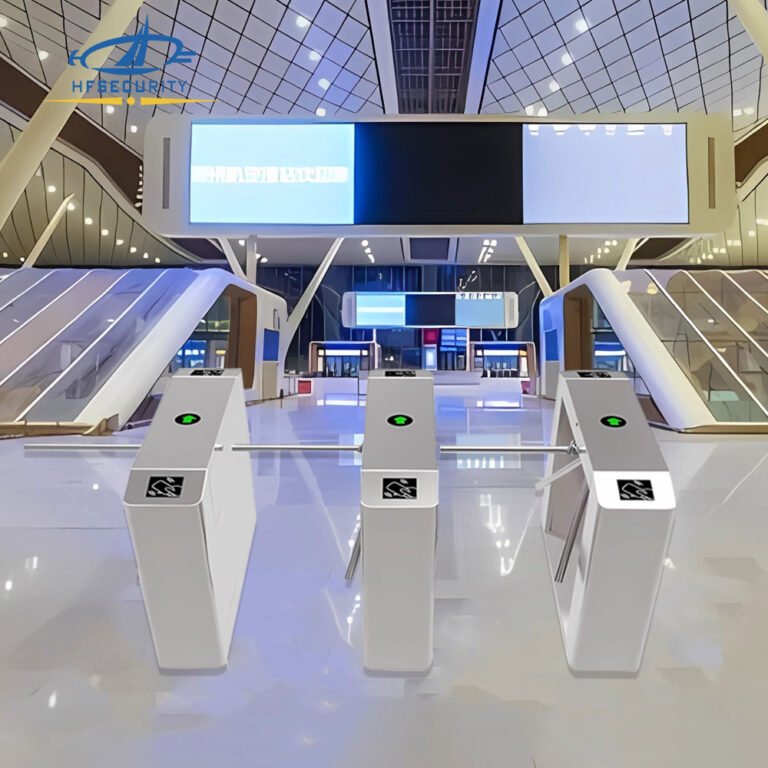

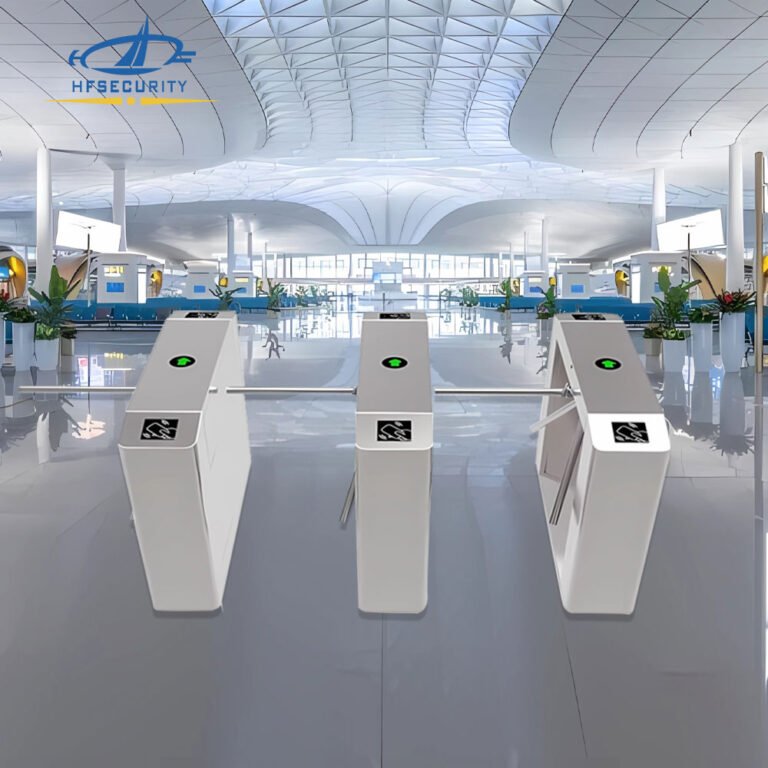

This product is a robust and efficient access control solution designed for high-traffic areas. Its bridge design ensures strong support and stability, while the tripod structure allows for smooth, controlled passage. Built for durability and reliability, this turnstile is ideal for environments that require secure entry and exit management, such as office buildings, commercial spaces, and public facilities. Its compact design saves space without compromising performance, making it a perfect choice for both indoor and outdoor installations.
| Working environment temperature | -40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Traffic speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485,232 protocol, standard communication distance of electrical appliances: <1200 meters |
| Chassis material | 304 stainless steel |
| Electrical control | Motor drive |
| Power-off gate opening function | After power off, the gate bar will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar rotates a certain angle, the strong reverse rotation of the gate bar will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |
| Physical Dimensions(mm) | 1200*280*980 |
| Box material | 304 stainless steel, cover steel 1.2MM thickness / side body 1.0mm |
| Material thickness(mm) | 1.2 |
| Channel width(mm) | ≤550mm |
| Passing speed | ≥50 people/min (normally closed mode) |
| Application environment | Indoor |
| Working temperature | -30℃~60℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Average power consumption（W） | 60 |
Each unit is carefully packaged to ensure safe delivery and smooth installation. The turnstile is wrapped in durable, scratch-resistant film to protect its surface and sensitive components from any damage during transit. Custom high-density foam inserts are used to secure the structure and internal mechanisms, minimizing movement and reducing the risk of impact or vibration. The robust packaging allows for efficient stacking and optimized shipping, while integrated lifting points ensure easy handling and secure transport. This ensures that your unit arrives in perfect condition, ready for installation and long-term use.
