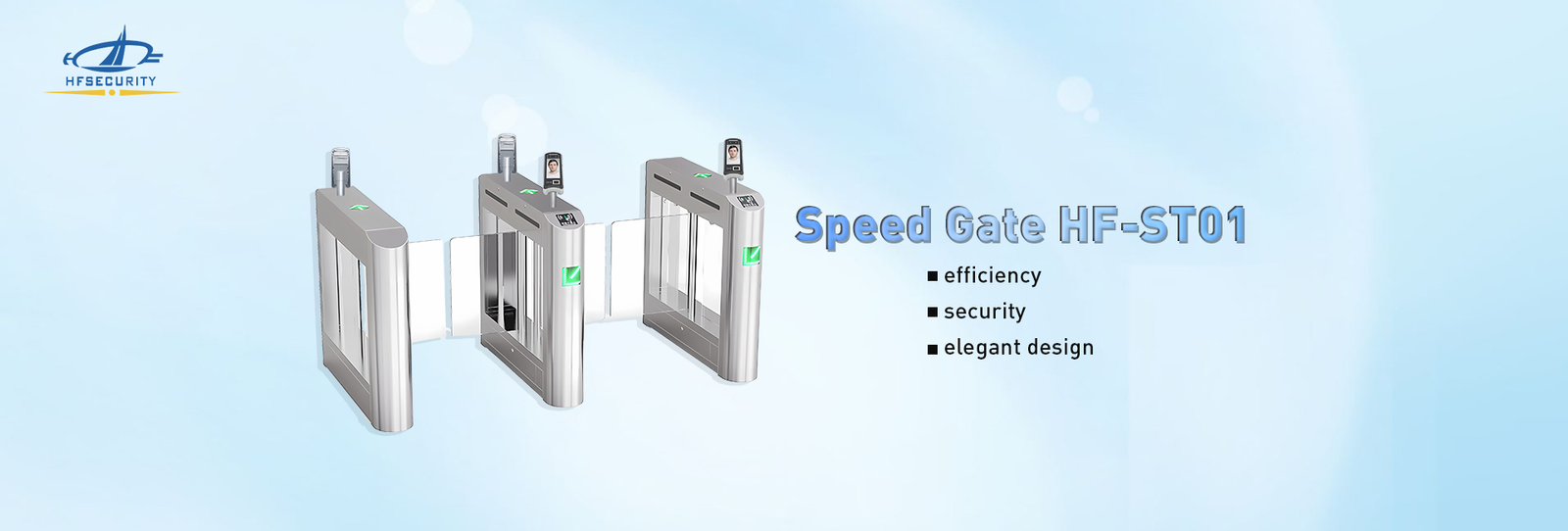

Speed Gate HF-ST01
The HF-ST01 Speed Gate features a durable aluminum alloy chassis, providing lightweight yet strong protection with corrosion resistance. This sleek and modern design makes it perfect for high-traffic areas like offices, airports, and stadiums. The gate supports various authentication methods such as facial recognition, fingerprint scanning, IC cards, and QR codes, ensuring secure and efficient access control. With its fast operation and anti-tailgating features, the HF-ST01 offers both security and smooth user experience.
product video
The aluminum alloy base of the HF-ST01 Speed Gate undergoes anodized treatment, which enhances its durability and corrosion resistance. This process creates a protective oxide layer on the surface, making it more resistant to wear, scratches, and environmental factors such as moisture or harsh weather. The anodized finish also gives the product a sleek, modern appearance and ensures long-lasting performance in both indoor and outdoor environments. This feature significantly improves the gate’s lifespan and aesthetic appeal, making it an ideal solution for high-traffic areas.
Product Features
Aluminum Alloy Chassis
Built with a high-quality aluminum alloy, the chassis ensures lightweight durability while offering superior strength and resistance to corrosion. This robust construction makes the turnstile ideal for both indoor and outdoor applications.
Anodized Surface Treatment
The aluminum base undergoes an anodized process, creating a protective oxide layer that enhances scratch resistance, wear resistance, and overall durability. It also provides a modern, sleek finish, giving the turnstile an elegant appearance while improving its longevity.
Multiple Authentication Options
The HF-ST01 Speed Gate supports a variety of advanced authentication methods, including facial recognition, fingerprint scanning, IC cards, QR codes, and NFC. This flexibility allows seamless integration into various access control systems to meet specific security needs..
Fast and Smooth Operation
The HF-ST01 is engineered for high-speed operation, ensuring that users can pass through quickly, reducing wait times in high-traffic areas. The smooth flap movement ensures a pleasant user experience while maintaining strict access control.
Anti-Tailgating and Anti-Reverse
The system is equipped with anti-tailgating and anti-reverse technology, which ensures that only one person can pass at a time. This significantly reduces the risk of unauthorized access and ensures secure and controlled entry.
Space-Efficient Design
With its compact and streamlined design, the HF-ST01 Speed Gate is ideal for spaces with limited room. Despite its compact size, it offers high performance without sacrificing security.
Product Information
| Chassis material | Cold-rolled plate paint process, cover steel thickness 1.2mm/side tube body 1.0mm |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |
| Dimensions | L1400*W120*H990mm, size can be customized |
Swing arm transmission angle | 180° |
Swing direction | one-way or two-way |
| Working environment | Indoor and outdoor (shade shed) -10°C～70°CRelative humidity: 90%, no condensation |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
| Time required to enter the traffic state after power-on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, distance＜1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Speedgate’s new multi-function self-test motherboard |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, distance＜1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -20°C~50°C |
| Storage temperature | -20°C~50°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 21W |
| Torque | 100Nm |
| Swing arm | Acrylic new material |
| Material | Aluminum alloy |
| Thickness | 8-12mm |
| Length | 275-400mm |
Product display
FAQ Schema
The following are common questions about buying a tripod turnstile:
The HF-ST01 Speed Gate is constructed with a durable aluminum alloy chassis and features an anodized finish, making it resistant to corrosion, scratches, and wear.
The HF-ST01 supports various authentication methods including facial recognition, fingerprint scanning, IC cards, QR codes, and NFC.
Yes, the HF-ST01 Speed Gate is weather-resistant, making it suitable for both indoor and outdoor installations.
The HF-ST01 operates quickly and smoothly, allowing for fast access and efficient movement of users, ideal for high-traffic areas.
Yes, the speed gate is equipped with anti-tailgating and anti-reverse features to ensure that only one person passes at a time, preventing unauthorized access.
The HF-ST01 has built-in sensors to detect obstacles and ensure safe passage, while the automatic reset function helps maintain security.
Yes, the HF-ST01 Speed Gate can be integrated with various access control systems and customized to fit specific security needs and preferences.
