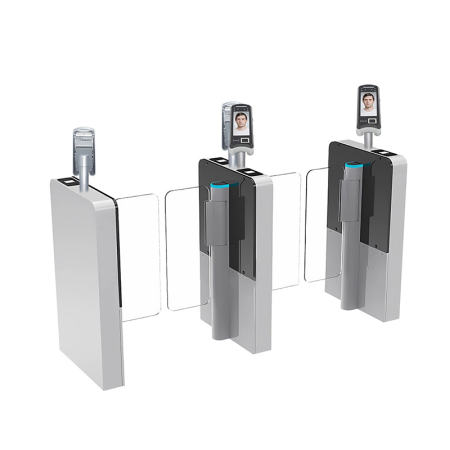

The HF-ST01 is a high-performance speed gate, specifically engineered for rapid, efficient, and secure pedestrian access in high-traffic environments. To ensure durability and aesthetics, the chassis is crafted using an aluminum alloy oxidation process, which offers a lightweight structure along with excellent corrosion resistance and a refined, modern appearance. With over 20 years of manufacturing expertise, we not only provide reliable products but also offer customizable solutions—supporting both OEM and ODM services to meet a wide range of client needs. Moreover, the HF-ST01 integrates seamlessly with advanced access control systems, making it a smart and dependable choice for contemporary access management.
Our Products

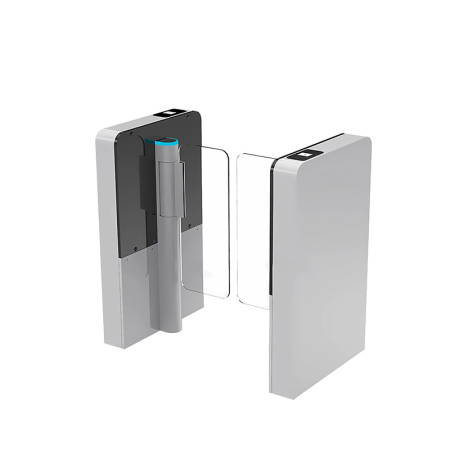

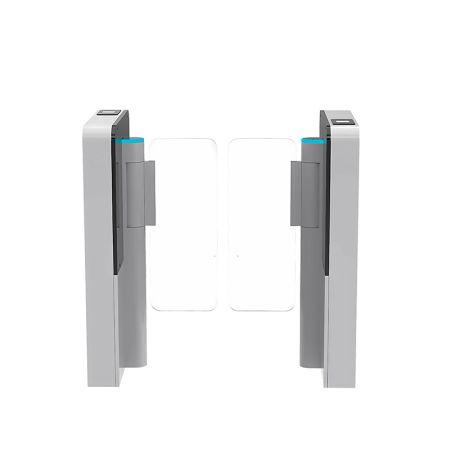

HF-ST01 Speed Gate features a sleek chassis made with an aluminum alloy oxidation process, offering a lightweight yet durable and corrosion-resistant structure. It supports power-off gate opening, automatically unlocking in case of power failure to allow free passage for emergency evacuation. Additionally, the gate is equipped with an anti-rotation function that detects and locks against reverse passage attempts, enhancing overall security and traffic control.
| power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | Aluminum Alloy |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

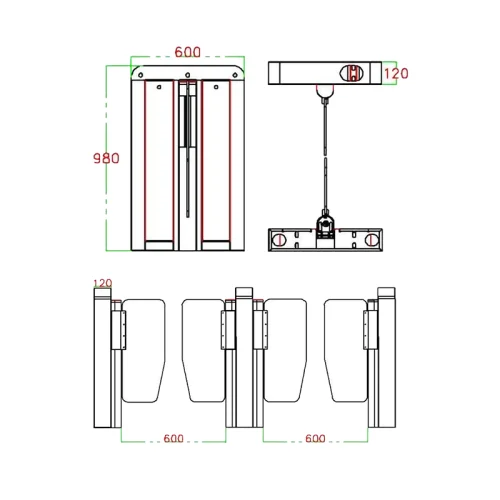

| Physical Dimensions(mm) | L600*W120*H980mm |
| Box material: Chassis material | Chassis material: 304 stainless steel, cover steel 1.2mm thick / side body 1 .0mm thick |
| Swing arm length | 600 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | Indoor |
| Operating temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Communication interface | standard RS485 interface, distance ≤ 1200 meters |
The product are packaged with a strong emphasis on safety, structure, and transport efficiency. Each unit is individually protected using high-density foam and anti-scratch wrapping, then enclosed in moisture-resistant cartons. For added security during long-distance or international transport, the components are placed in reinforced wooden crates that meet export standards, reducing the risk of damage from impact, vibration, or humidity. All parts are clearly labeled and organized to streamline installation and site handling.We will coordinate appropriate transportation and documentation according to the delivery region and customer needs, helping ensure a smooth and professional end-to-end process.
