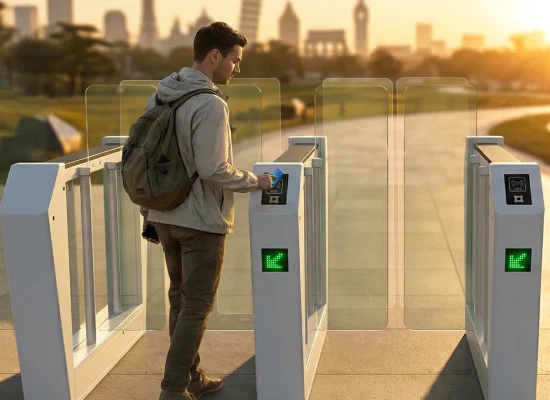

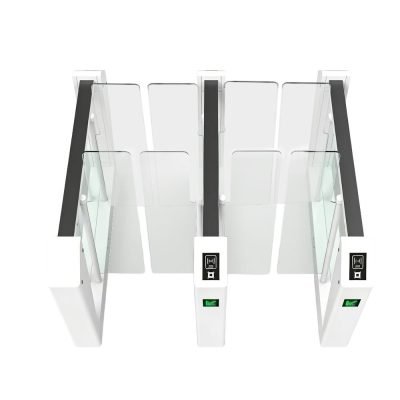

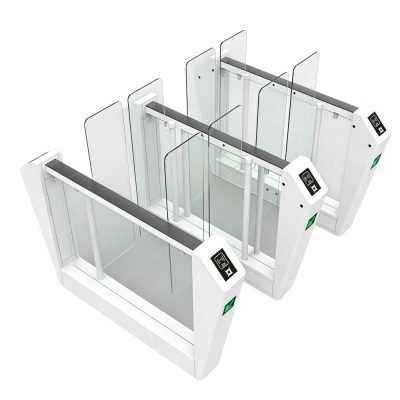

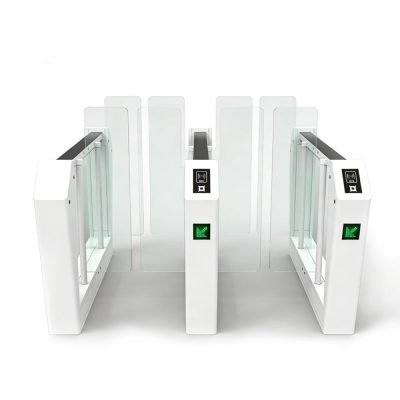

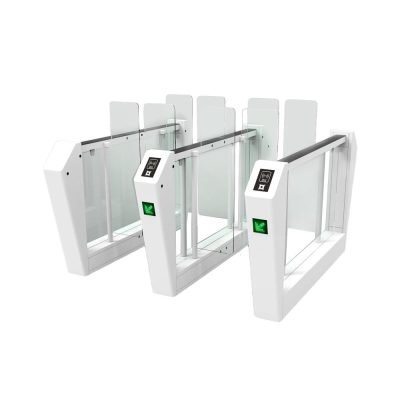

The HFSecurity SI04 AB Turnstile Gate is a professional access control device designed to prevent unauthorized entry, such as tailgating, backtracking, and illegal intrusion, at the source. The device is equipped with a multi-mode identity verification system featuring high-precision infrared sensing, facial recognition, and card swiping, offering fast recognition speeds and high accuracy to quickly complete access authentication. It also features multiple safety protection functions, including anti-pinch protection, emergency door opening, and audible and visual alarms for abnormal conditions, ensuring a safe and hazard-free passage. It supports integration with access control, time and attendance, visitor management, and surveillance systems, meeting the dual needs of digital security and efficient management.
Our Products

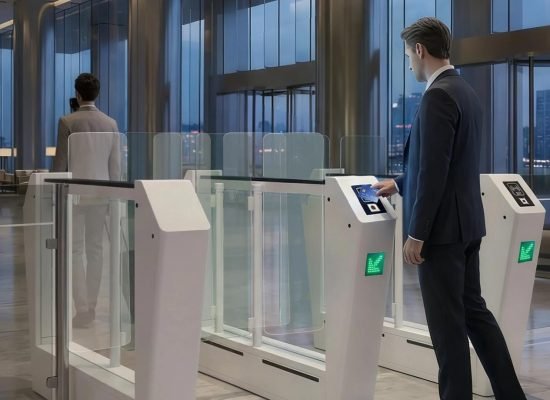

SI04 AB turnstiles are widely used in various personnel access control scenarios. In office settings, they are used for daily attendance tracking and access control in office buildings and corporate campuses; in public service settings, they support personnel security management in schools, hospitals, and government agencies; in industrial production settings, they facilitate standardized personnel access management in factories and industrial parks; and in commercial public settings, they are suitable for crowd control and security protection in venues and commercial complexes, making them the core equipment for modern, all-scenario access management.
| Logical Algorithm | Accurately judge passage situations such as hand swinging, tailgating, retrograde movement and midway exit based on the passage logic judgment algorithm of more than 12 pairs of independent points |
| Input Power Supply | DC24V |
| Feedback | Linear Hall sensor built in brushless motor |
| Analog Command Input | -10v~10v, input impedance 10KΩ |
| Pulse Output Signal | Differential output of Hall A, B, Z phases |
| Input Signal | Enable, alarm clear, forward rotation limit, reverse rotation limit, control mode |
| Output Signal | Positioning completion, voice alarm |
| Protection Function | Alarms for overcurrent, overvoltage, undervoltage, overload, abnormal position, etc. |
| Monitoring Function | Rotational speed, current position, current pulse frequency, position deviation, motor current, analog input value, etc. |
| Operating/Storage Temperature | 45℃/-20℃~55℃ |
| Operating/Storage Humidity | 40%~80%/0%~90% (no condensation) |
| Protection Grade | IP54 |
| Vibration/Impact Resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m, derating use for altitude above 1000m |
| Atmospheric Pressure | 86/106kpa |
| Chassis Material | Domestic standard 304 stainless steel / iron plate baking finish, national standard steel thickness of 1.5mm, high-precision grooving process for the whole machine |
| Working Voltage | AC220±10%V 50±10%HZ |
| Power Consumption | 200W in static state, 350W in dynamic state |
| Drive Motor | 24V DC brushless motor with linear Hall encoder positioning for precise positioning |
| Movement | High-precision CNC anti-collision movement |
| Overall Dimensions | L2800*W180*H1000mm, customizable dimensions |
| Voice Function | Chinese voice prompts |
| Swing Direction | Unidirectional or bidirectional |
| Working Environment | Indoor, outdoor (canopy) -10℃～70℃, Relative Humidity: ≤90%, no condensation |
| Gate Opening & Closing Time | Adjustable from 0.8 to 1 second |
| Passage Speed | 30 persons/minute (normally open), 25-30 persons/minute (normally closed) |
| Start-up Time to Passage State | 3 seconds |
| Automatic Reset Time after Malfunction | 10 seconds |
| Normal Service Life | More than 10 million continuous rotations |
| Gate Opening Angle | 90±5 degrees |
HFSecurity AB Gate packaged in industrial-grade reinforced wooden boxes, strictly following the logistics transportation packaging standards. The main body, accessories and vulnerable parts of the security gate are fully fixed. The box is made of high-strength materials and is combined with protective materials, effectively resisting collisions, compressions, jolts and dampness during transportation, ensuring the equipment remains intact.
