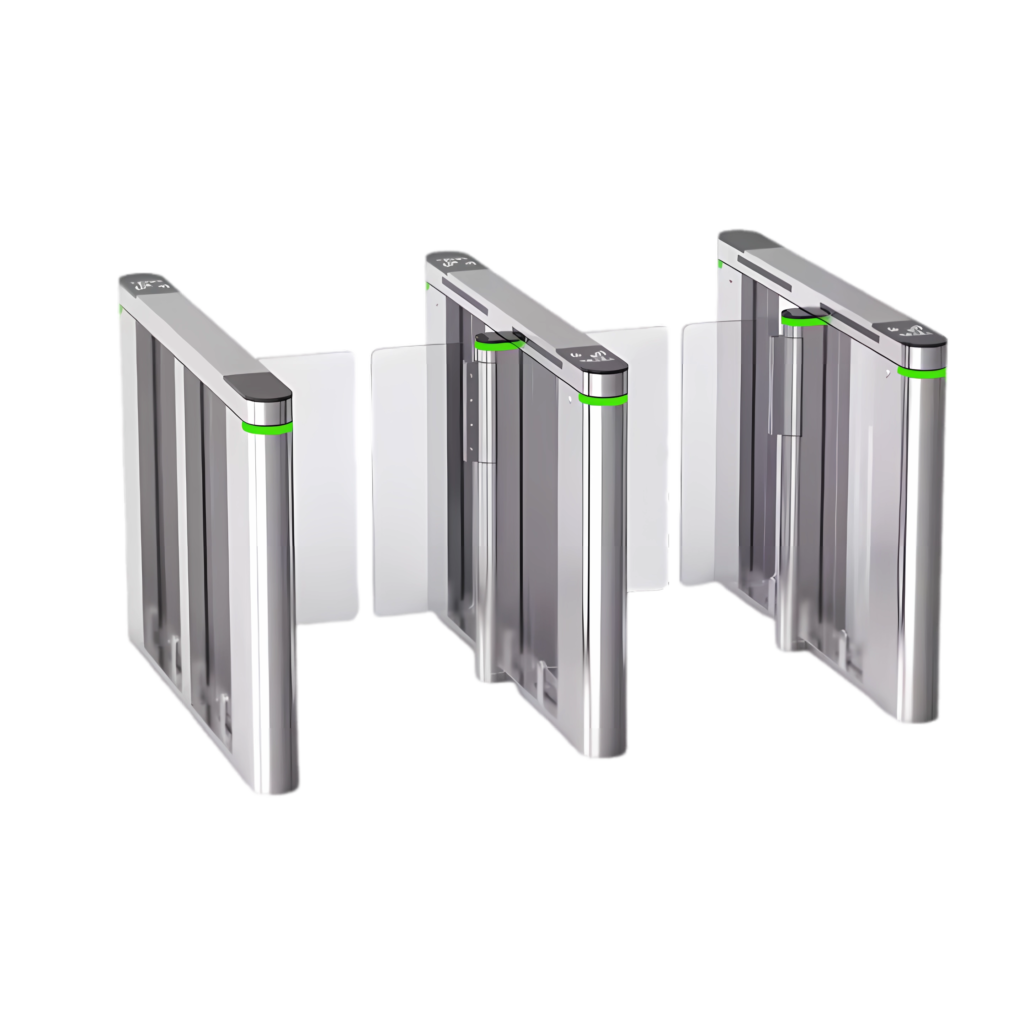

Safety speed gate HF-ST05
The Safety Speed Gate HF-ST05 is a high-performance access control solution designed to ensure both security and efficiency in managing pedestrian flow. Built with advanced technology and durable materials, the HF-ST05 is ideal for a variety of environments, including office buildings, transportation hubs, and public venues. Its robust construction and user-friendly design make it a reliable choice for high-traffic areas, providing seamless and secure access control.
Product Features
Communication Interface
Equipped with a standard RS485 interface, the HF-ST05 supports communication distances of up to 1200 meters, ensuring reliable integration with existing access control systems.
Energy Efficiency
Powered by AC220V±20%, 50Hz, the HF-ST05 is an energy-efficient choice, helping to reduce operational costs while maintaining high performance.
Low Maintenance
Thanks to its high-quality construction and reliable components, the HF-ST05 requires minimal maintenance, reducing long-term operational costs and downtime.
Customizable Options
The speed gate can be adjusted to fit channel widths of 600-900mm, making it adaptable to various installation requirements.
User-Friendly Design
The sleek and modern design of the HF-ST05 not only enhances the aesthetic appeal of any location but also ensures ease of use for both operators and pedestrians.
Versatile Application
Suitable for indoor environments, the HF-ST05 operates effectively in a wide temperature range from -40°C to 70°C and can handle relative humidity up to 90% without condensation.
Product Application
-
Office Buildings: The HF-ST05 is ideal for managing access in corporate environments. It ensures secure entry for employees and visitors while maintaining a professional appearance. Its efficient operation helps streamline the flow of people during peak hours.
-
Transportation Hubs: Airports, train stations, and bus terminals require reliable access control to manage large volumes of passengers. The HF-ST05’s high-capacity performance and quick operation make it perfect for these settings, ensuring smooth and orderly movement.
-
Stadiums and Event Venues: During large events, controlling entry and exit points is crucial for security and crowd management. The HF-ST05’s robust design and advanced security features make it suitable for such high-demand environments.
-
Shopping Malls: Managing the flow of shoppers is essential for maintaining a pleasant shopping experience. The HF-ST05 helps regulate access, ensuring security while enhancing the overall ambiance with its sleek design.
-
Educational Institutions: Schools, colleges, and universities need reliable access control to ensure the safety of students and staff. The HF-ST05 provides a secure and efficient solution for managing access to campus buildings and facilities.
-
Hospitals and Healthcare Facilities: In healthcare settings, controlling access to sensitive areas is critical. The HF-ST05 helps manage the flow of patients, visitors, and staff, ensuring a secure and organized environment.
-
Residential Complexes: Gated communities and apartment buildings benefit from the HF-ST05’s secure access control. It enhances resident safety and privacy while providing a modern and aesthetically pleasing entrance.
-
Industrial Facilities: Factories and warehouses often have restricted areas that require controlled access. The HF-ST05 ensures that only authorized personnel can enter, enhancing security and operational efficiency.
-
Public Venues: Museums, libraries, and government buildings require reliable access control to manage visitor flow. The HF-ST05 offers a secure and efficient solution, ensuring a pleasant experience for all visitors.
-
Commercial Complexes: Mixed-use developments with offices, retail spaces, and recreational areas need versatile access control solutions. The HF-ST05’s adaptability and high performance make it suitable for such diverse environments.
product information

1.Physical Dimensions:L1200*W120*H990mm
2.Chassis material: 304 stainless steel,
3.Channelwidth(mm):600~900mm
4.Gate opening and closing time: 0.8-1 second adjustable
5.Passing speed:≥30 people/minute
6.Application environment: indoor, outdoor
(shade)-10C~70’C
7.Relative humidity: <90%, no condensation
8. Working temperature:-40~125°C
9. Working humidity: <90%, no condensation
10.Power supply:AC220±10%V ,50±10%HZ
10.Average power consumption(W): 100W
- Details
- Packing
- Dimensions
- Technical Parameters
- Control System
- Packing
Chassis material | Aluminum alloy |
product type | speed gate |
Working voltage | AC220±10%V 50±10%HZ |
channel width | 600-900mm |
Power consumption | 100W |
Rotary rod transmission angle | 120° |
Working environment | -40~125℃ |
Gate opening and closing time | 0.8-1 second |
adjustablePassing speed | 30 people/minute(normally open),25-30 people/minute(normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
Normal service life | Continuous rotation more than 5 million times |
Gate opening angle | 90±5 |
Noise | <50DB |
Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
Control technology | Speedgate’s new multi-function self-test motherboard |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, distance<1200 meters |
Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | <50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
Atmospheric pressure | 86/106kpa |
Voltage | DC5v±0.25 |
Current consumption | 150mA |
Responding speed | 600RPM |
Output way | ZPulse |
Operating temperature | -20°C~50°C |
Storage temperature | -20°C~50°C |
Vibration resistant | 49m/s |
Impact resistance | 980m/s |
Speed gates offer a wide range of control system options, making them adaptable to various environments and existing access control setups. Whether you need biometric integration, card-based systems, or mobile solutions, speed gates provide the flexibility and security you need.
Fingerprint Scanners: Compatible with most fingerprint recognition systems for secure and personalized access.
Facial Recognition: Integrates with advanced facial recognition technology for touchless entry.
Iris Scanning: Supports high-security iris recognition systems for sensitive environments.
RFID Cards: Works with RFID technology for quick and contactless access.
NFC Cards: Compatible with NFC-enabled devices for modern, seamless entry.
QR Code Scanning: Allows access via QR codes scanned from smartphones or printed tickets.
Access Control Software: Compatible with most access control management software for centralized control.
Third-Party Systems: Easily integrates with existing biometric, card, or mobile-based systems.
Customizable APIs: Offers API support for seamless integration with custom or proprietary systems.
Mobile Apps: Integrates with mobile apps for virtual credentials and remote access control.
Anti-Tailgating Detection: Uses sensors to prevent unauthorized entry by detecting multiple people trying to pass with one credential.
Real-Time Monitoring: Provides real-time data and alerts for enhanced security and management.
Remote Control: Allows administrators to control the gates remotely via software or mobile apps.
Modular Design: Can be expanded or upgraded to support new technologies as needed.
Multi-Device Compatibility: Works with a wide range of biometric, card, and mobile systems for future-proof solutions.
Our turnstiles are securely packed in wooden crates, designed to withstand the rigors of transit. Efficient, reliable, and built to protect—your order is in safe hands.

For safe and efficient shipping, we pack our turnstiles in high-quality wooden crates. Your product’s protection is our priority.

Related products
FAQ Schema
The following are common questions about buying a tripod turnstile:
The HF-ST05 Speed Gate is constructed with a durable aluminum alloy chassis and features an anodized finish, making it resistant to corrosion, scratches, and wear.
The HF-ST05 supports various authentication methods including facial recognition, fingerprint scanning, IC cards, QR codes, and NFC.
Yes, the HF-ST05 Speed Gate is weather-resistant, making it suitable for both indoor and outdoor installations.
The HF-ST05 operates quickly and smoothly, allowing for fast access and efficient movement of users, ideal for high-traffic areas.
Yes, the speed gate is equipped with anti-tailgating and anti-reverse features to ensure that only one person passes at a time, preventing unauthorized access.
The HF-ST05 has built-in sensors to detect obstacles and ensure safe passage, while the automatic reset function helps maintain security.
Yes, the HF-ST05 Speed Gate can be integrated with various access control systems and customized to fit specific security needs and preferences.
