HF7000 Capacitive FBI Fingerprint Scanner
HF7000 Capacitive FBI Fingerprint Scanner
Biometric and fingerprint scanners
New : Type C Interface(optional)
1. Support: ISO/ANSI/WSQ
2. Compatible with NADRA
3. Certificate: FBI,CE,RoHS
4.OS: Windows, Andriod, IOS, Linux
5. Development Language: Java,C++,VB,VB.net and so on
6. Application: Election, Telecom, Bank, School, Attendance system, Access control system
HF7000 fingerprint scanner definition biometric
HF7000 is the first Bluetooth fingerprint reader in the world, HFSecurity’s patent product. It aims to solve the connection problem in the use of traditional fingerprint reader and make it more convenient to use. Also supports Android, Windows, IOS, Linux. As one of our best selling fingerprint scanners, it has been widely used for elections, telecom, banking, e ID, e-passport, etc.

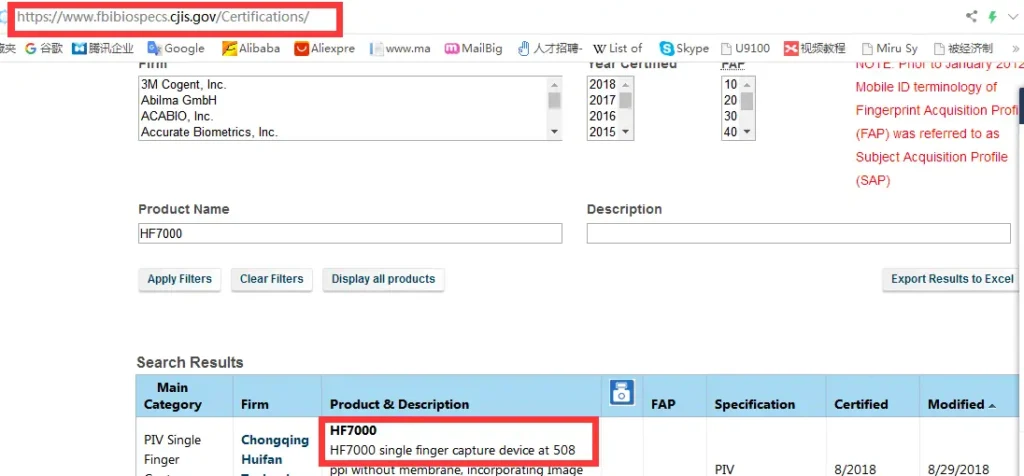

FBI Certified Fingerprint Scanners
The HF7000 usb fingerprint scanner is certified by the FBI and has an FBI certificate
HF7000 USB Fingerprint Reader built in recharable lithium battery
Built-in rechargeable lithium battery, small size, can be carriedaround,
collect fingerprints anytime, anywhere
Take it with you and collect fingerprints anytime, anywhere
HF7000 508DPI Capture Fingerprint Sensor
High quality image capture with up to 508DPI resolution Support private fingerprint feature point template format and ISO
international standard fingerprint feature point template format
HF7000 Living Fingerprint Recognition
HF7000 Fingerprint Scanner android living fingerprint recognition, effective identification of fake fingerprints
Using semiconductor live fingerprint recognition technology, it can effectively identify artificial fingerprints with high security level
HF7000 Biometric Capacitive Fingerprint Scanner Algorithm
Advanced fingerprint matching algorithm, high fingerprint recognition rate and fast matching speed Applicability to a variety of fingerprint types, dry fingers, wet fingers, shallow texture fingerprints can be accurately identified, complete matching within 1 second
| Hardware | |
| Dimensions | 83 (L) * 42.5 (W) *16 (H) mm |
| Supporting Cards | Mifare Card (13.56MHz card) , NFC 13.56Mhz card |
| Working Currency | Maxim 100mA |
| Working Voltage | Built-in 3.7V lithium battery (1000mAh) |
| Working Temperature | -20℃~70℃ |
| Working Hunidity | 0-90% (no frosty) |
| Fingerprint Sensor | |
| Sensor | Capacitive |
| Fingerprint Collection | Reject fake fingers,live finger detection,LFD |
| FRR | 0.01% |
| FAR | 0.0001% |
| Fingerprint Verification Time | <1S |
| Image Size | 256*360 pixels |
| Image Resolution | 508DPI |
| Gray Scale | 8-bit (256 levels) |
| Image Array | 18mm*12.8mm |
| Anti-static Electric Capacity | IEC6100-4-2 standard 15KV |
| Fingerprint Standard | ISO19794-2/-4,ANSI378 |
| Image Format | WSQ, BMP, RAW, etc |
| Software | |
| OS | Android, Windows, Linux, IOS |
| Communication | |
| USB | Type C |
| Bluetooth | Support |
