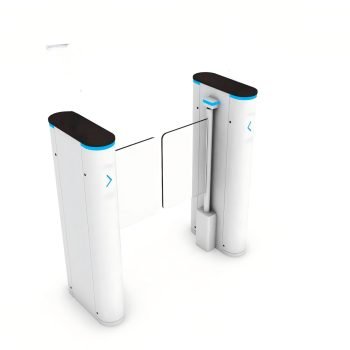

The EG-S01 Luxury Swing Gate is a sophisticated access control solution that seamlessly integrates mechanical, electronic, and intelligent control technologies. It supports a variety of optional identity recognition systems and is equipped with reliable safety protection devices, alarm systems, directional indicators, and a user-friendly LED display interface. This combination ensures efficient and intelligent management of access channels while providing a secure and orderly passage for personnel.
Our Products
The EG-S01 intelligent turnstile can accommodate multiple identification methods, including IC cards, ID cards, barcode cards, and fingerprint recognition, making it ideal for diverse environments. It is widely used in stations, ports, subways, factories, commercial buildings, smart communities, hotels, clubs, enterprises, and institutions where intelligent passageway management and advanced access control are required.
| Contactless Face & Palm Power Supply | AC 220V ±20%, 50Hz; |
| Working environment temperature | -20℃~50℃ |
| Relative humidity | less than 95%, no condensation; |
| Speed | 30 people per minute (IC card); |
| Input interface | standard switch signal; |
| Communication interface | RS485 electrical standard communication distance: <1200 meters； |
| Chassis constructed with cold-rolled steel plate and baked paint finish; |
| Electromagnetic drive control system ensures safety and reliability; |
| Power failure unlock function: After power loss, the barrier arm automatically unlocks, switching to free passage mode for crowd evacuation; |
| Anti-reverse rotation function: After rotating a certain angle, forceful reverse rotation of the barrier arm is detected as unauthorized entry, triggering automatic locking to prevent backtracking; |
| Color: Customizable exterior design with optional color selection. |
| Chassis Material | Cold-rolled steel with baked enamel finish, front panel steel thickness 1.2mm / side panels and base 1.0mm |
| Operating Voltage | AC220±10%V 50±10%HZ |
| Power Consumption | 100W |
| Fully automatic brushless motor and clutch mechanism | |
| Shape Size | L455*W222*H1080mm, size can be customized |
| Arm Swing Angle | 180 degrees |
| Swing Direction | one-way or two-way |
| Operating conditions | Indoors and outdoors (in shade) -10℃ to 70℃, with relative humidity ≤90% and no condensation. |
| Gate opening and closing time | 0.8-1 second adjustable |
| Flow rate | 30 people/min (always open), 25-30 people/min (always closed) |
| Time to Enter Pass Mode after Poweron | 2 seconds |
| Automatic Door Opening in Case of Failure | |
| Normal Service Life | more than 5 million consecutive rotations |
| Turnstile Opening Angle | 90±5 |
| Noise | ＜50DB |
| Communication Interface | Standard RS485 interface, distance ≤1200 meters |
| Side liquidity channel indicator light | |
| Input Interface | Relay switch signal, 12V level signal, or 12V pulse signal with pulse width>100ms, and drive current> 10mA |
| Supported Software | HFIMS Cloud Software |
| Installation | Wall-mount |
| control Technique | Advanced motion drive algorithm technology |
| Input power | DC24V |
| Communication | Communicate with the PC via RS485 |
| Deictic Function | Red (alarm) and green (working) indicator lights |
| Usage/Storage Temperature | 45℃/-20℃~55℃ |
| Use/Store Humidity | 40%~80%/0%~90% (no condensation) |
| Levels of Protection | IP10 |
| Shock and Vibration Resistance | 4.9m/s²/19.6m/s² |
| Above Sea Level | <1000m, use with reduced capacity above 1000m |
| Atmospheric Pressure | 86/106kpa |
| Supply Voltage | DC5V±0.25 |
| Power Consumption | 150mA |
| Response Speed | 600RPM |
| Output Method | Z impulse |
| Flow rate | 30 people/min (always open), 25-30 people/min (always closed) |
| Working Temperature | -20~50℃ |
| Storage Temperature | -20~50℃ |
| Vibration Resistance | 49m/s |
| Impact Resistance | 980m/s |
