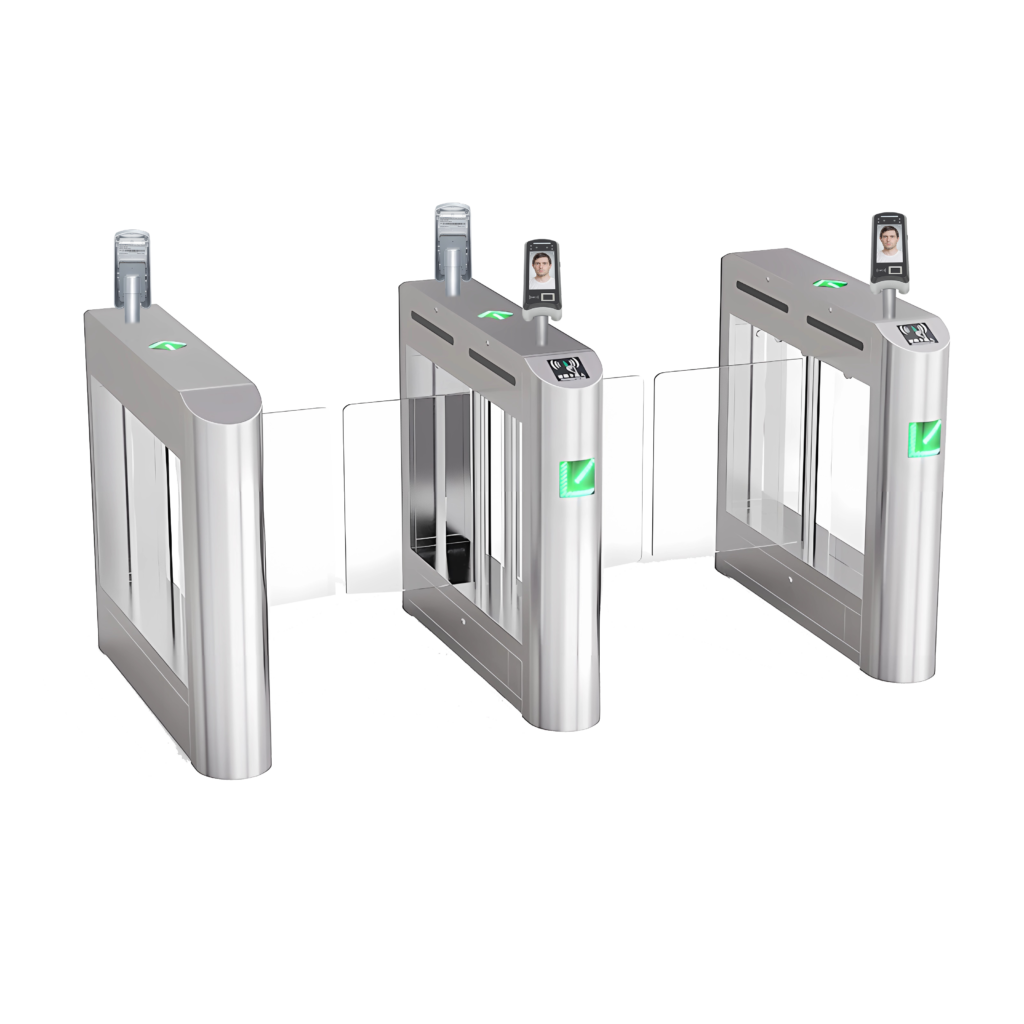

HF-SG10 Box type circular swing gate
The HF-SG10 Box Type Circular Swing Gate is a modern and intelligent access control solution designed for high-traffic environments. With its circular design, smooth operation, and durable construction, this gate ensures efficient pedestrian flow and enhanced security in any facility.
our factory
Our factory is working hard to carefully package and ship our high-quality turnstiles and speed gates to customers worldwide! Each unit is securely packed to ensure safe transportation and flawless performance upon arrival.
At HFSECURITY, we are committed to delivering top-tier access control solutions with precision, durability, and reliability. Stay tuned for more updates as we bring advanced security technology to your doorstep!
Unique Circular Box Design
A modern and space-efficient structure that blends seamlessly into various architectural environments.
High-Durability & Weather Resistance
Made from 304 stainless steel, ensuring long-lasting performance in both indoor and outdoor settings.
Fast & Smooth Passage
Adjustable opening and closing speed (0.8-1 second) for optimized flow management.
Supports up to 30 persons per minute, making it ideal for high-footfall areas.
Automatic Unlock in Power Failure
Ensures uninterrupted emergency evacuation by unlocking the gate automatically during a power outage.
Enhanced Security Mechanism
Features anti-backflow protection, preventing unauthorized reverse entry.
Seamless Integration with Modern Access Systems
Compatible with RFID, facial recognition, fingerprint authentication, QR code scanning, and other access control technologies.
product information
The box – type inclined swing gate features a sleek and modern appearance. Its inclined design gives it a distinct look that can enhance the overall aesthetics of any installation site, whether it’s a high – end office building, a shopping mall, or a transportation hub. The box – shaped housing not only provides a clean and integrated look but also helps to protect the internal components from damage. In terms of space utilization, these gates are relatively compact. They can be installed in narrow corridors or areas with limited space, as the swing – type operation requires less lateral clearance compared to some other types of gates.
With its superior durability, high security, and flexible deployment, the Vertical Swing Gate HF-SG10 is the perfect choice for businesses and institutions seeking a reliable, modern, and efficient access control solution. Upgrade your security with HF-SG10 today!
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |

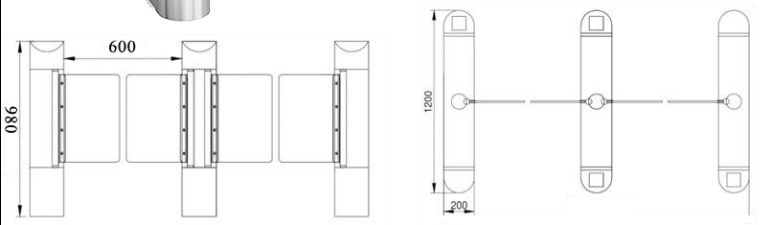

| Dimensions | L1200*W200*H980mm,Size can be customized |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 21W |
| Torque | 100Nm |
| Swing arm | 304 Stainless Steel |
| Material | 304 Stainless Steel |
| Thickness | 8-12mm |
| Length | 275-400mm |
We use sturdy wooden crates to pack our turnstile products, providing unmatched safety during transit. Your order arrives in perfect condition, every time.
FAQ Schema
The swing gate supports multiple authentication methods including card swipe, QR code scanning, fingerprint recognition, and facial recognition.
The swing gate uses advanced sensors to ensure that only one person can pass through at a time. If a person tries to follow closely behind without proper authentication, the gate will prevent entry.
Yes, our swing gates are highly versatile and can be used in various high-traffic areas like shopping malls, train stations, airports, and office buildings.
The swing gate is powered by a reliable electrical system designed for continuous operation in high-traffic environments.
Yes, the swing gate is designed for easy installation and can be configured to suit different operational needs.
Yes, it can be customized for one-way or two-way access depending on your needs.
The swing gate uses a smooth, silent mechanism that ensures minimal noise during operation, making it ideal for use in public spaces.
The swing gate requires minimal maintenance. Regular cleaning and occasional checks to ensure smooth operation are recommended.
