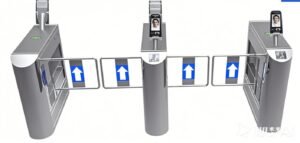

HF-SG09 Arc swing gate
our factory
The HF-SG09 Arc Swing Gate is a modern and intelligent access control solution designed to provide smooth and secure pedestrian passage. With its sleek arc-shaped design, high durability, and advanced security features, it is perfect for locations requiring both aesthetics and efficiency.
Take a look at how we carefully package each turnstile in heavy-duty wooden crates, built to withstand the toughest shipping conditions. Our commitment to quality doesn’t stop at manufacturing – it extends to every step of the journey. Trust us to protect your investment!
Elegant Arc-Shaped Design
- Enhances the visual appeal of any facility while ensuring seamless access control.
Durable & Weather-Resistant Construction
- Built with 304 stainless steel, providing corrosion resistance and long-lasting durability for indoor and outdoor use.
Fast & Efficient Access
- Adjustable opening/closing speed (0.8-1 second) to accommodate different security requirements.
- Supports up to 30 persons per minute, optimizing pedestrian flow.
Automatic Unlock in Power Failure
- The gate automatically unlocks during a power outage, allowing free passage for emergency evacuations.
Anti-Backflow & High-Security Mechanism
- Prevents unauthorized reverse entry, ensuring strict access control.
Seamless Integration with Access Control Systems
- Supports RFID, fingerprint recognition, facial recognition, QR code scanning, and other authentication technologies.
Applications
Corporate Offices & Commercial Buildings
Hospitals & Healthcare Facilities
Universities, Research Centers & Educational Institutions
Public Transport Stations & Airports
Government & High-Security Facilities
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |
| Dimensions | L1200*W200*H980mm,Size can be customized |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 21W |
| Torque | 100Nm |
| Swing arm | 304 Stainless Steel |
| Material | 304 Stainless Steel |
| Thickness | 8-12mm |
| Length | 275-400mm |
FAQ Schema
The swing gate is made of 304 stainless steel, ensuring durability and resistance to corrosion, making it suitable for both indoor and outdoor use.
Yes, the swing gate is equipped with anti-reversal functionality, preventing unauthorized backward passage and enhancing security.
The gate allows a smooth flow of up to 30 people per minute, making it ideal for high-traffic areas like supermarkets.
It is perfect for supermarkets, malls, transit stations, and other places requiring efficient crowd control and security.
Yes, the 304 stainless steel construction ensures long-term durability, even in high-frequency use environments.
