HF-FI11 translation gate
The HF-FI11 Translation Gate, a cutting-edge access control solution designed to meet the demands of modern high-traffic environments. Built with premium 304 stainless steel, this gate combines durability, efficiency, and advanced security features to ensure seamless pedestrian flow and robust access management. Whether for commercial complexes, transportation hubs, or public venues, the HF-FI11 Translation Gate delivers unmatched performance and reliability.
Product Video
Premium Build Quality: Constructed with 304 stainless steel, the gate is highly durable and resistant to corrosion, making it suitable for both indoor and outdoor use. Its robust design ensures long-lasting performance even in high-traffic environments.
Efficient Operation: The gate boasts a quick opening and closing time of 0.8 to 1 second, ensuring smooth and efficient pedestrian flow. This minimizes wait times and enhances the overall user experience.
High-Capacity Performance: Capable of handling up to 30 people per minute, the HF-FI11 is ideal for busy locations such as office buildings, metro stations, stadiums, and event venues. It ensures quick and seamless access control.
Safety Features: The gate includes a power-off release function, allowing it to unlock automatically during power outages. This feature facilitates safe and easy evacuation in emergencies, ensuring public safety.
Anti-Reverse Mechanism: Equipped with an advanced anti-reverse function, the gate automatically locks if an attempt is made to forcefully reverse it. This prevents unauthorized access and enhances security.
Adaptable to Extreme Conditions: Designed to operate in a wide temperature range from -40°C to 70°C and withstand relative humidity up to 90%, the HF-FI11 is suitable for various climates and environments, ensuring consistent performance year-round.
Versatile Application: Whether installed in commercial complexes, transportation hubs, or public venues, the HF-FI11 Translation Gate offers a versatile solution for managing pedestrian flow efficiently and securely.
Energy Efficient: With an average power consumption of just 100W, this gate is an energy-efficient choice, helping to reduce operational costs while maintaining high performance.
User-Friendly Design: The sleek and modern design of the HF-FI11 Translation Gate not only enhances the aesthetic appeal of any location but also ensures ease of use for both operators and pedestrians.
Product application
Office Buildings: Ensure secure and efficient access for employees and visitors, maintaining a professional and controlled environment.
Transportation Hubs: Manage high pedestrian traffic at airports, train stations, and bus terminals, ensuring smooth and orderly movement.
Stadiums and Event Venues: Control entry and exit points during large events, enhancing security and crowd management.
Shopping Malls: Regulate the flow of shoppers, providing a secure and pleasant shopping experience.
Educational Institutions: Monitor and control access to schools, colleges, and universities, ensuring the safety of students and staff.
Hospitals and Healthcare Facilities: Manage the flow of patients, visitors, and staff, maintaining a secure and organized environment.
Residential Complexes: Provide secure access to gated communities and apartment buildings, enhancing resident safety and privacy.
Industrial Facilities: Control access to restricted areas within factories and warehouses, ensuring only authorized personnel can enter.
Public Venues: Manage entry at museums, libraries, and government buildings, ensuring a secure and orderly environment for all visitors.
product information
- It functions as an effective access control device, allowing only authorized personnel to pass through. It can be integrated with a variety of access control systems, including card – reading systems, fingerprint recognition systems, or facial recognition systems. Only when a valid credential is presented or the recognition is successful will the gate open to permit entry.
- It plays a crucial role in regulating the flow of people. In crowded areas, it ensures an orderly flow of pedestrians, preventing over – congestion and chaos. It can also limit the number of people passing through within a specific time period, which is beneficial for managing the capacity of public places.
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |

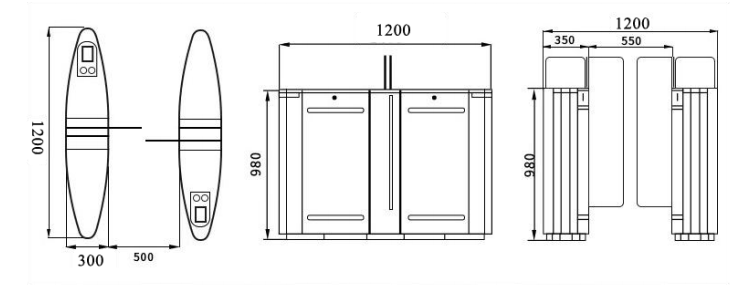

| Dimensions | L1200*W300*H980mm |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
Warranty and maintenance | We can provide warranty and maintenance for our products within a certain period of time. |
| Usage training | Provide user manuals and instructional videos, as well as online training. |
| Support technology development | our engineers to support during your development, and there is developing guide provided. |
| Customized services | Customized according to customer needs. |
| Office Buildings |
| Public Transportation Hubs |
| Commercial Complexes & Shopping Malls |
| Government & Institutional Facilities |
| Factories & Industrial Areas |
| Schools & Universities |
| Residential & Gated Communities |
| Stadiums & Event Venues |
| Hospitals & Medical Facilities |
| Data Centers & High-Security Zones |
Our turnstile products are securely packed in high-quality wooden crates, ensuring safe and efficient delivery. Trust us to protect your investment every step of the way!
HFSECURITY provides you with a full solution system
The gate machine can have several recognition methods to confirm the user’s identity. Here are some common recognition methods:
Access card/ID card recognition: Users can use access cards or ID cards for recognition by placing the card or ID card on the card reader for verification.
Fingerprint recognition: Gate machines can be equipped with fingerprint recognition devices, and users only need to place their fingers on the fingerprint sensor for recognition.
Face recognition: Modern gate machines often come with high-precision face recognition technology, which identifies users’ facial features through a camera.
Palm Vein Recognition: Users can recognize and verify themselves by palm vein
Iris Recognition: Some gate machines can recognize iris
QR code/barcode recognition: Users can use QR codes or barcodes on their mobile phones for recognition by placing them in the scanning area of the gate machine.
It is important to note that different models of gate machines may support different recognition methods, depending on the user’s needs and the system’s configuration.
FAQ Schema
Yes, the FI11 is designed for both indoor and outdoor environments. It operates reliably in extreme temperatures ranging from -40°C to 125°C and is built with weather-resistant 304 stainless steel.
Absolutely. The FI11 seamlessly integrates with various systems, including RFID, biometric scanners (facial recognition, fingerprint, palm vein), and card readers, making it a versatile solution for modern access control needs.
The FI11 is equipped with a power-off release function, allowing the barriers to open automatically in case of a power failure, ensuring safe and uninterrupted passage.
The FI11 supports a high-speed throughput of up to 30 people per minute, making it ideal for high-traffic areas like transit hubs and stadiums.
Thanks to its durable 304 stainless steel construction, the FI11 requires minimal maintenance. Regular cleaning and occasional checks for smooth operation are usually sufficient.
The FI11 is designed for straightforward installation. However, we recommend professional installation to ensure optimal performance and integration with existing systems.
Yes, the FI11 is equipped with advanced sensors and anti-tailgating features to ensure only one person can pass at a time, effectively preventing unauthorized access.
Yes, the FI11 can integrate with biometric systems such as fingerprint, facial recognition, and palm vein scanners for advanced security.
Upgrade your access control system with the HF-FI11 Translation Gate – where innovation meets durability. With its rapid operation, high-capacity performance, and advanced safety features, this gate is the perfect choice for ensuring secure and efficient pedestrian management. Choose the HF-FI11 Translation Gate for a smarter, safer, and more reliable access control solution.
