Half arc turnstile HF-FH04

HF-FH04 Half Arc Turnstile is a modern, high-performance entry control system designed for smooth, secure, and efficient pedestrian flow management. Featuring a sleek half-arc design, this turnstile seamlessly combines aesthetic appeal with robust security, making it an ideal choice for premium commercial and institutional spaces.

our factory

Take a look at our factory in action! Here’s a glimpse of our team carefully packaging the HF-FH04 Half Arc Turnstile , ensuring it arrives at your doorstep in perfect condition. From meticulous quality checks to secure packaging, every step reflects our commitment to delivering excellence.

product features

Sophisticated Half Arc Design

A stylish, space-efficient structure that enhances the modern look of any facility while maintaining high security.

Durable Stainless Steel Construction

Built with 304 stainless steel, ensuring corrosion resistance, stability, and long-lasting durability for indoor and outdoor environments.

Fast & Adjustable Access Control

Opening/closing speed adjustable (0.8-1 second) to manage pedestrian flow effectively.
Supports up to 30 persons per minute, ensuring smooth entry for high-traffic locations.

Automatic Unlock in Power Failure

Enhances safety and emergency evacuation by automatically unlocking during power outages.

Anti-Backflow Security Mechanism

Prevents unauthorized reverse passage, ensuring one-way controlled access.

Seamless Integration with Smart Access Systems

- - Compatible with RFID, fingerprint recognition, facial recognition, QR code scanning, and other security authentication methods.

The single – person full – height turnstile excels in traffic management. It’s designed to handle individuals one by one accurately, which is crucial for crowd control in busy spots like subway stations during rush hours or stadium entrances.

Its mechanical or electro – mechanical mechanisms enable smooth and rapid operation. The opening and closing speeds can be adjusted based on expected footfall. In a bustling transportation hub, it can be set to operate quickly to facilitate a high volume of passengers passing through. The one – person – at – a – time function prevents overcrowding and bottlenecks. Moreover, it precisely counts the number of people entering or leaving, providing useful data for occupancy monitoring in buildings or foot traffic analysis in commercial areas.

With its half-arc modern design, fast operation, and advanced security features, the HF-FH04 Half Arc Turnstile is a perfect access control solution for businesses and institutions looking to enhance both security and user experience.

product information

Details

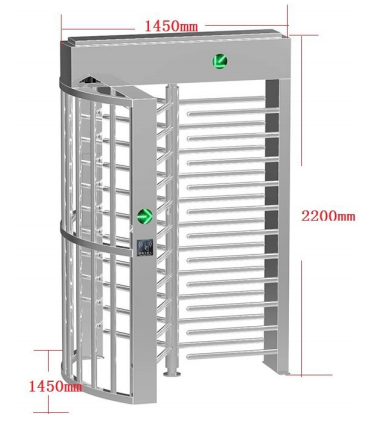

Dimensions
Packing

Technical Parameters
Control System
Technical

Chassis material	SUS304 stainless steel
Working voltage	AC220±10%V 50±10%HZ
Power consumption	100W
Rotary rod transmission angle	120°
Rotary rod direction	one-way or two-way
Working environment	-40~125℃
Gate opening and closing time	0.8-1 second
adjustablePassing speed	30 people/minute(normally open),25-30 people/minute(normally closed)
The time required to enter the pass state after powering on	2 seconds
Normal service life	Continuous rotation more than 5 million times
Gate opening angle	90±5
Noise	<50DB
Communication interface	Standard RS485 interface, 232 protocol, distance ≤1200 meters
Input interface	Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA

Control technology	Advanced motion drive algorithm technology
Responding speed	600RPM
Communication Interface	Standard RS485 interface, 232 protocol, distance ≤1200 meters
Indication function	Red (alarm), green (work) indicator light
Use/storage temperature	45°C/-20°C~55°C
Use/storage temperature	40%~80%/0%~90% (no condensation)
Noise	＜50DB
Vibration/impact resistance	4.9m/s²/19.6m/s²
Altitude	＜1000m
Atmospheric pressure	86/106kpa
Voltage	DC5v±0.25
Current consumption	150mA
Responding speed	600RPM
Output way	ZPulse
Operating temperature	-40°C~125°C
Storage temperature	-40°C~125°C
Vibration resistant	49m/s
Impact resistance	980m/s

Warranty and maintenance	We can provide warranty and maintenance for our products within a certain period of time.
Usage training	Provide user manuals and instructional videos, as well as online training.
Support technology development	our engineers to support during your development, and there is developing guide provided.
Customized services	Customized according to customer needs.

Our turnstiles are carefully packed in durable wooden crates, guaranteeing safe and efficient shipping. From our facility to your doorstep, we’ve got you covered.

FAQ Schema

Can full-height turnstiles integrate with existing access control systems?

Yes, full-height turnstiles can be integrated with existing access control systems such as card readers, biometric devices, and alarm systems.

What materials is the FH04 turnstile made of?

The HF-FH04 is equipped with a power-off release function, allowing the turnstile to open automatically for safe passage during emergencies or power failures.

Are full-height turnstiles easy to install?

Yes, they are designed for easy installation with standard power connections and communication interfaces, making setup straightforward.

What environments is the HF-FH04 best suited for?

The HF-FH04 is ideal for a wide range of settings, including corporate offices, gyms, schools, public transportation hubs, and other medium to high-traffic areas.

What access methods do they support?

HFsecurity full-height turnstiles support IC/ID cards, fingerprint, facial recognition, QR codes, and NFC.

Does the HF-FH04 prevent tailgating?

Yes, its smooth 90-degree rotation and robust design ensure controlled access, effectively preventing tailgating and unauthorized entry.
