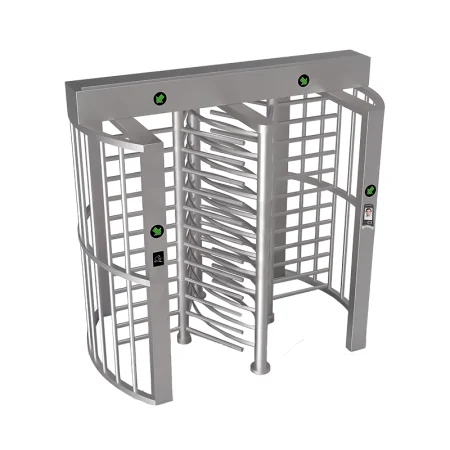

The HF-FH09 Half-Arc Dual Channel Full Height Turnstile stands out with its sleek, modern circular arc top design and robust dual-channel structure. Constructed from high-quality 304 stainless steel, it offers exceptional durability and corrosion resistance, ensuring long-term performance even in demanding environments. Moreover, the dual-lane configuration enhances pedestrian flow efficiency while maintaining a high level of access control security, making it particularly well-suited for use in office buildings, commercial complexes, and industrial facilities.With over two decades of manufacturing expertise, we are well-equipped to provide fully customizable OEM and ODM solutions to meet a wide range of project requirements.
Our Products
The HF-FH09 Half-Arc Dual Channel Full Height Turnstile features a sleek arc-shaped top and dual-lane design, combining modern aesthetics with robust security. Made from durable 304 stainless steel, it ensures long-term corrosion resistance and strength. Ideal for high-traffic areas such as office buildings, factories, and commercial facilities, it supports integration with RFID, biometric, and QR code systems for reliable access control.
| Power supply | AC220V±20%V，50Hz |
| Working environment temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passage speed | 30 persons/min(IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard communication distance:<1200 meters |
| Power-off opening function | after the power is off, the gate is automatically unlocked, into a free passage mode, convenient for evacuation of crowd |
| Anti-rotation function | After the brake lever rotates a certain angle, the strong reverse rotation brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |
| Chassis material | 304 stainless steel technology |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passage speed | 30 people/min (normally open),25-30 people/min (normally closed) |
| Application environment | indoor and outdoor (shadow shed)-10 ℃ ~ 70 ℃, relative humidity: ≤ 90%, no condensation |
| Working temperature | -40~125 ℃ |
| Working humidity | ≤ 90%, no condensation |
| Power supply | AC 220±10% V 50±10% HZ |
| Average power consumption (W) | 100W |
To ensure safe and secure delivery, each unit undergoes a careful packaging process. Initially, it is wrapped in protective plastic film and reinforced with thick foam padding to prevent scratches, moisture exposure, and impact damage. It is then placed into a sturdy, custom-made wooden crate, offering excellent stability during transport. Clear labeling and organized packing make unloading and on-site installation more efficient. Before leaving the facility, every unit is thoroughly inspected to confirm it meets our quality standards. Designed for durability, the packaging is suitable for long-distance transportation by sea, air, or land, helping to ensure the product reaches its destination in perfect condition.

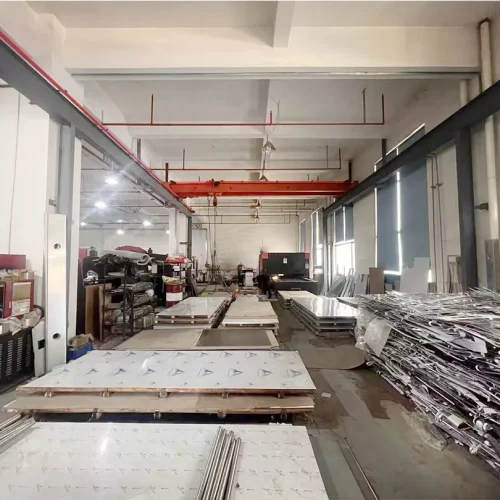

Factory Showcase
