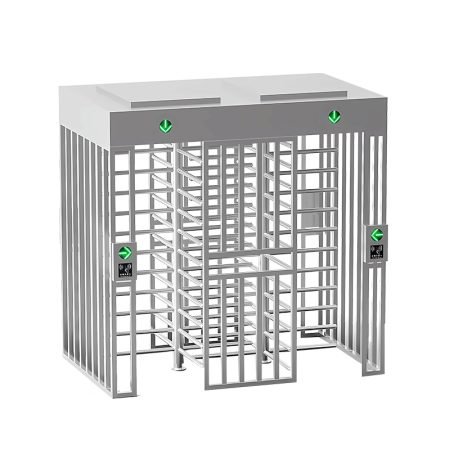

The HF-FH04 is a durable and secure dual-channel full-height turnstile, designed with a modern square frame and made from 304 stainless steel for excellent corrosion resistance and long-term use. Moreover, its dual-lane structure improves pedestrian flow while maintaining strict access control, making it ideal for stadiums, factories, and high-security facilities.With over twenty years of manufacturing experience, we offer OEM and ODM customization to meet diverse project needs. In addition, the HF-FH04 seamlessly integrates with our full range of access control systems, including IC/ID cards, facial recognition, and QR code scanning—providing a complete and reliable security solution.
Our Products
The HF-FH04 is a full-height turnstile with a dual-channel square design, built for high-traffic and high-security environments. Constructed from 304 stainless steel, it offers strong durability and resistance to corrosion. Its dual-lane structure allows for efficient two-way pedestrian access while maintaining strict entry control. Ideal for stadiums, industrial sites, and restricted zones, the HF-FH04 ensures safety, stability, and compatibility with various access control systems.
| Power supply | AC220V±20%V，50Hz |
| Working environment temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passage speed | 30 persons/min(IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard communication distance:<1200 meters |
| Power-off opening function | after the power is off, the gate is automatically unlocked, into a free passage mode, convenient for evacuation of crowd |
| Anti-rotation function | After the brake lever rotates a certain angle, the strong reverse rotation brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |
| Chassis material | 304 stainless steel technology |

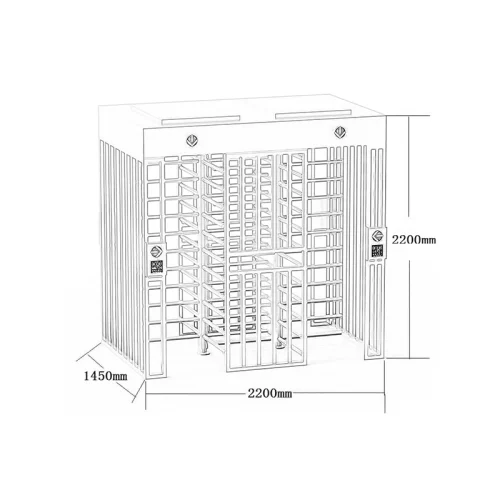

| Channel width (mm) | 600 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passage speed | 30 people/min (normally open),25-30 people/min (normally closed) |
| Application environment | indoor and outdoor (shadow shed)-10 ℃ ~ 70 ℃, relative humidity: ≤ 90%, no condensation |
| Working temperature | -40~125 ℃ |
| Working humidity | ≤ 90%, no condensation |
| Power supply | AC 220±10% V 50±10% HZ |
| Average power consumption (W) | 100W |
Each unit is securely packaged using high-strength materials to ensure full protection during long-distance transport. To begin with, the components are wrapped in shockproof foam and sealed in reinforced wooden cases to prevent damage from impact or moisture. Additionally, all parts are sorted and labeled clearly to simplify on-site installation. Depending on the destination and project timeline, we offer flexible shipping options such as sea freight, air freight, or express delivery. Thanks to our two decades of export experience, we ensure fast, safe, and reliable delivery to clients around the world.

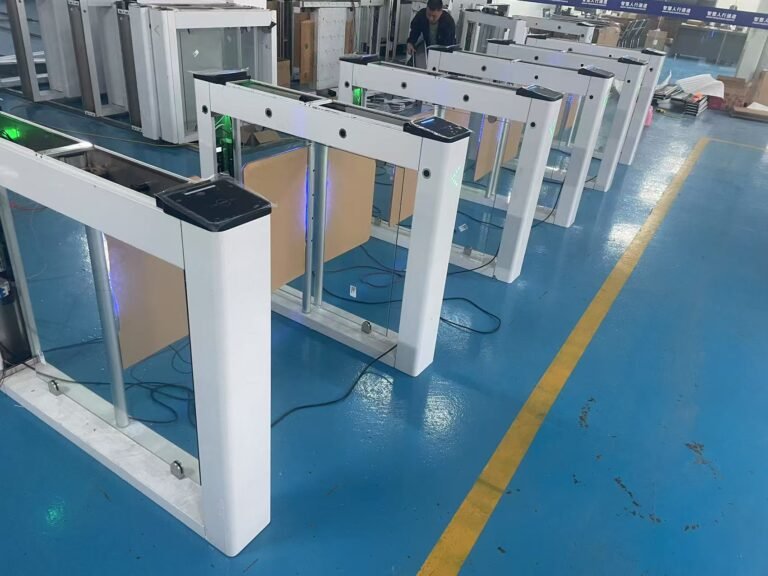

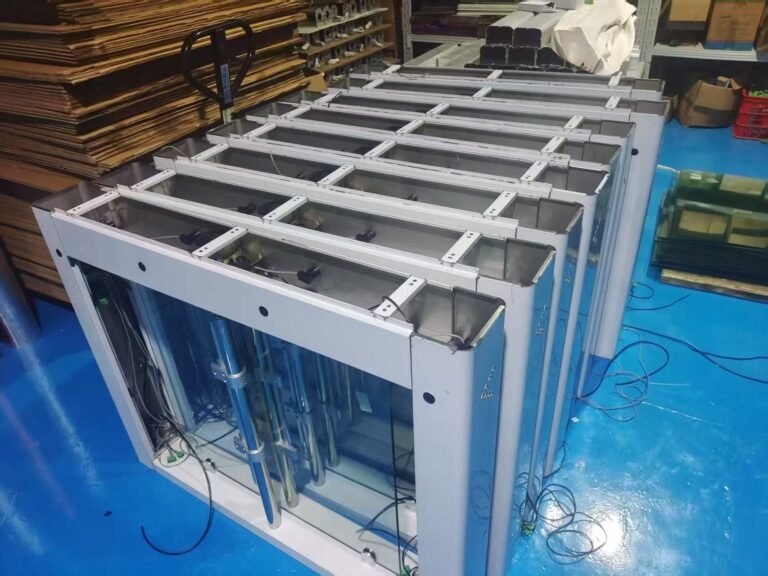

Factory Showcase
