Electrostatic wing gate HF-FIE01

Electrostatic wing gate HF-FIE01

Electrostatic wing gate HF-FIE01

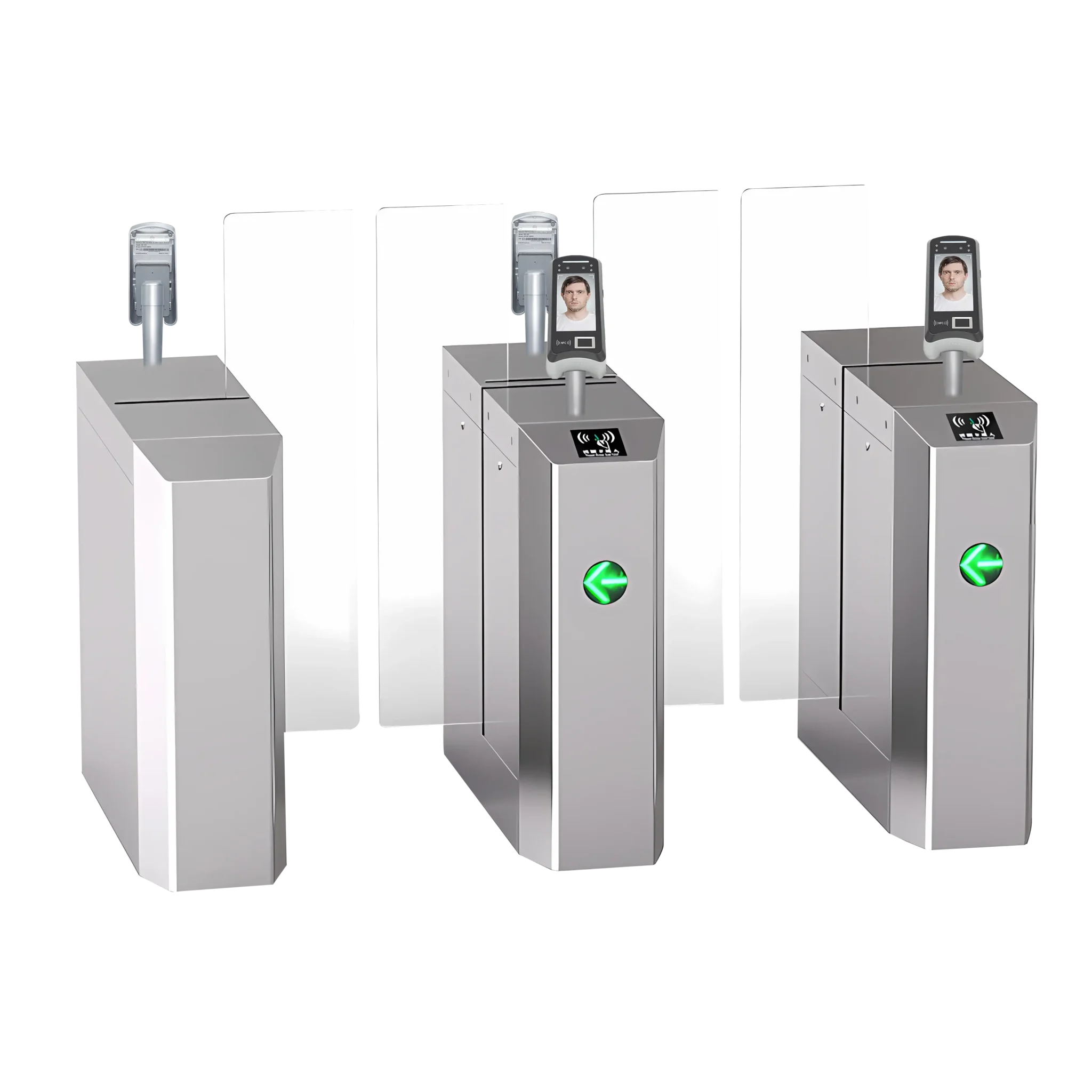

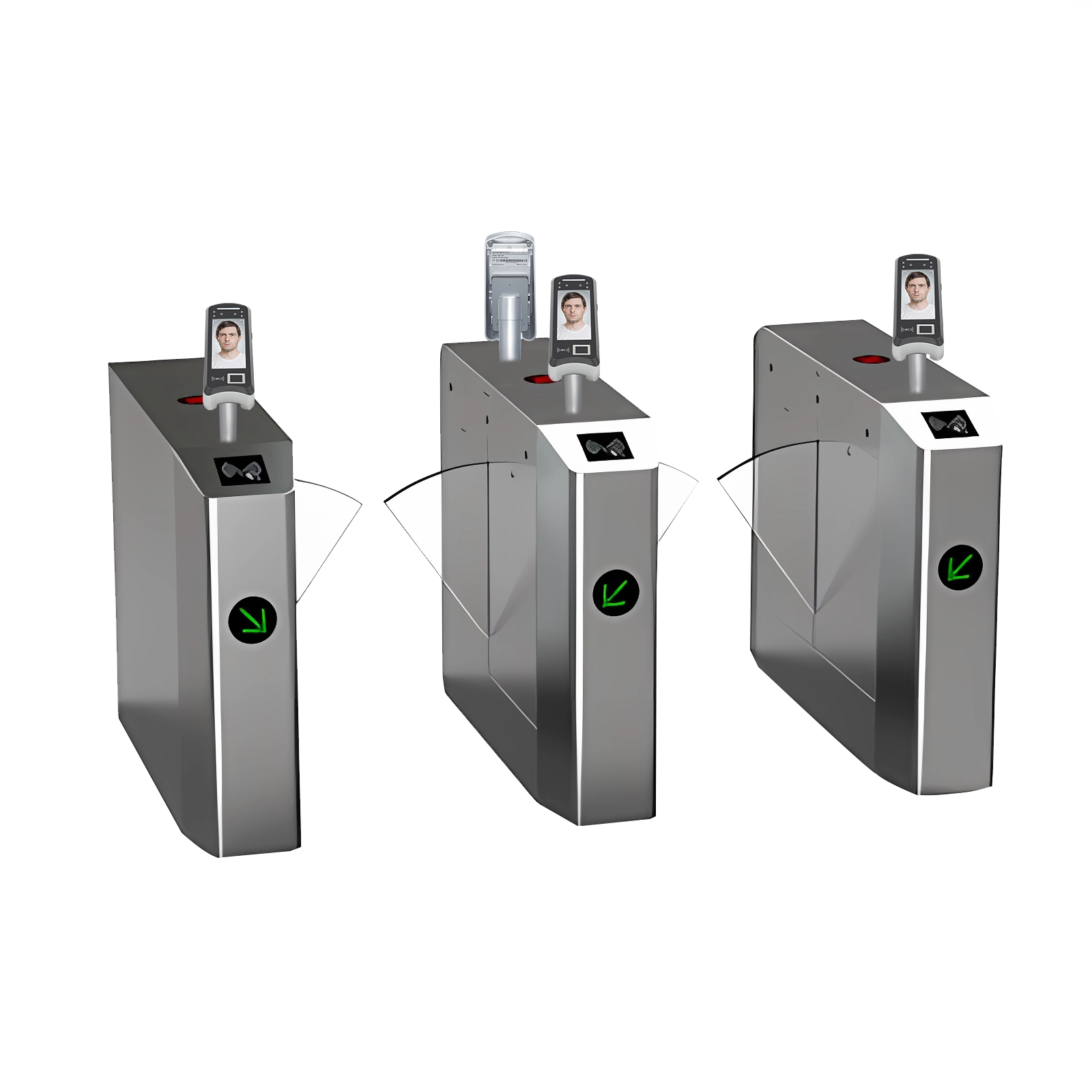

The HFSECURITY Electrostatic Wing Gate HF-FIE01 is a state-of-the-art pedestrian access control system designed to provide high security, fast passage, and intelligent authentication. Built with premium 304 stainless steel, it ensures durability, anti-corrosion protection, and smooth operation for various high-traffic environments. Featuring advanced electrostatic control technology, this gate enhances security while maintaining an efficient and user-friendly experience.

Related videos

1. Electrostatic Control Technology

  • Uses advanced electrostatic sensing to enable smooth, responsive, and precise gate operation.
  • Reduces mechanical wear and tear, enhancing durability and reliability.

2. Intelligent Access Control System

  • Supports multiple authentication methods: IC card, NFC, QR code, fingerprint, and facial recognition.
  • Easily integrates with third-party access control and attendance systems.

3. High-Speed & Efficient Passage

  • Capable of handling up to 30 persons per minute, ensuring smooth pedestrian flow.
  • Features automated reset and anti-tailgating detection for enhanced security.

4. Advanced Safety Features

  • Equipped with anti-pinch and anti-collision sensors to prevent accidental injuries.
  • Automatically opens during emergencies (e.g., power failures) to ensure safety.

5. Premium Build & Modern Design

  • Constructed with 304 stainless steel, offering corrosion resistance, durability, and a sleek aesthetic.
  • LED indicators provide clear guidance for users.

6. Wide Application & Versatile Use

  • Suitable for corporate offices, government institutions, transportation hubs, educational facilities, and residential communities.
  • Can operate in indoor and semi-outdoor environments with a wide temperature range (-10°C to 70°C).

7. Seamless Integration & Smart Control

    • Easily connects to existing security and attendance management systems.
    • Supports remote monitoring and management for efficient operation.

product information

The Electrostatic Wing Gate is a high-security access control solution designed for smooth, quiet, and efficient operation. It features anti-reverse functionality, preventing unauthorized entry and ensuring a one-person-per-pass system. With low noise performance, it provides a seamless and comfortable user experience. Built for durability and reliability, the Electrostatic Wing Gate is an ideal choice for secure and high-traffic environments.

Product Application

    • Government Agencies and Offices
      The Electrostatic Wing Gate is ideal for government offices, embassies, and law enforcement buildings where strict access control is required. Integrated with biometric technologies such as facial recognition and fingerprint scanning, the Electrostatic Wing Gate can effectively prevent unauthorized access, ensuring a high level of security.

    • Financial Institutions
      In banks, securities companies, and other financial institutions, the Electrostatic Wing Gate helps maintain high security by controlling access. When paired with identity verification systems (like fingerprint recognition or ID card scanning), it ensures that only authorized personnel are allowed entry, safeguarding both clients and employees.

    • Large Enterprises and Industrial Parks
      The Electrostatic Wing Gate is an excellent choice for large companies and industrial parks that need to monitor employee and visitor access. It provides efficient access control, especially when integrated with other identification technologies, helping manage both employee and visitor permissions with ease.

    • Transportation Hubs
      Airports, metro stations, and train stations are high-traffic areas that require secure yet efficient access management. The Electrostatic Wing Gate, when integrated with electronic ticketing systems, can streamline the passenger flow, reduce congestion, and ensure that only valid ticket holders pass through, enhancing overall security.

    • High-End Residential Communities and Commercial Centers
      The Electrostatic Wing Gate is also well-suited for use in high-end residential areas and commercial centers. It provides a secure barrier that prevents unauthorized entry while maintaining smooth access for residents, employees, and visitors. The gate’s advanced security features make it an ideal choice for locations with high security demands.

The Electrostatic Wing Gate HF-FIE01 is a high-security, intelligent access control solution that is widely applicable in various environments requiring stringent access management.

product information

Chassis material

SUS304 stainless steel

Working voltage

AC220±10%V  50±10%HZ

Power consumption100W
Dimensions

L1200*W300*H980mm

Rotary rod transmission angle

120°

Rotary rod direction

one-way or two-way
Working environment

-10℃~70℃

Gate opening and closing time0.8-1 second adjustable
Passing speed30 people/minute(normally open),25-30 people/minute
(normally closed)

The time required to enter the pass state after powering on

2 seconds
Normal service life

Continuous rotation more than 5 million times

Gate opening angle90±5
Noise<50DB
Communication interface

Standard RS485 interface, 232 protocol, distance ≤1200 meters

Input interface

Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA

Control technology

Advanced motion drive algorithm technology

Responding speed

600RPM

Communication Interface

Standard RS485 interface, 232 protocol, distance ≤1200 meters

Indication function

Red (alarm), green (work) indicator light

Use/storage temperature

45°C/-20°C~55°C

Use/storage temperature

40%~80%/0%~90% (no condensation)

Noise

<50DB

Vibration/impact resistance

4.9m/s²/19.6m/s²

Altitude

<1000m

Atmospheric pressure86/106kpa
VoltageDC5v±0.25
Current consumption150mA
Responding speed600RPM
Output wayZPulse
Operating temperature

-40°C~125°C

Storage temperature

-40°C~125°C

Vibration resistant

49m/s
Impact resistance980m/s
FIE01-SIZE
FIE01-SIZE

Warranty and maintenance
We can provide warranty and maintenance for our products within a certain period of time.
Usage trainingProvide user manuals and instructional videos, as well as online training.
Support technology developmentour engineers to support during your development, and there is developing guide provided.
Customized servicesCustomized according to customer needs.
Office Buildings
Public Transportation Hubs
Commercial Complexes & Shopping Malls
Government & Institutional Facilities
Factories & Industrial Areas
Schools & Universities
Residential & Gated Communities
Stadiums & Event Venues
Hospitals & Medical Facilities
Data Centers & High-Security Zones

Related products

FAQ Schema

Yes, wing gates are low-maintenance. Regular cleaning and occasional checks on the sensors and motors are usually enough.

Wing gates have anti-forced entry features. If someone tries to push through, the system will lock or trigger an alarm.

The FIE01 is equipped with a power-off release function, allowing the barriers to open automatically in case of a power failure, ensuring safe and uninterrupted passage.

The FIE01 supports a high-speed throughput of up to 30 people per minute, making it ideal for high-traffic areas like transit hubs and stadiums.

Yes, wing gates can usually be integrated with systems like RFID, biometrics, or QR codes.

With proper care, wing gates can last for many years, even in high-traffic areas.
