Children's small swing gate HF-SG03
Ensure a safe and delightful experience for the little ones with our Child-Friendly Swing Gate HF-SG03. Designed specifically for children, this swing gate combines safety, functionality, and an adorable appearance to create a perfect access control solution for kid-centric environments.
our factory
At our state-of-the-art facility, every Swing Gate is carefully packaged with precision and care to ensure it reaches you in perfect condition. Our dedicated team works tirelessly to guarantee that each product is securely prepared for transport, reflecting our commitment to quality and customer satisfaction.
From the production line to your doorstep, we prioritize efficiency and reliability. Watch as our team expertly handles the final steps before dispatch, ensuring that your order is ready for a seamless journey. Trust us to deliver not just a product, but a promise of excellence.
Choose HF-SG03 for a secure, reliable, and delightful access control solution, backed by our unwavering dedication to quality and service.
Child-Safe Design: The HF-SG03 is tailored for children with a lower height and a charming design, making it both safe and appealing for young users.
Durable Construction: Built with cold-rolled steel, the gate features a robust 12mm thick chassis and 1.0mm side body, ensuring long-lasting durability and resistance to wear and tear.
Efficient Operation: With a quick gate opening and closing time of 0.8 to 1 second, the HF-SG03 ensures smooth and efficient passage, handling up to 30 children per minute in normally open mode and 25-30 in normally closed mode.
Advanced Safety Features: The gate includes an anti-reverse function that automatically locks if a forceful reverse rotation is detected, preventing unauthorized access and enhancing security.

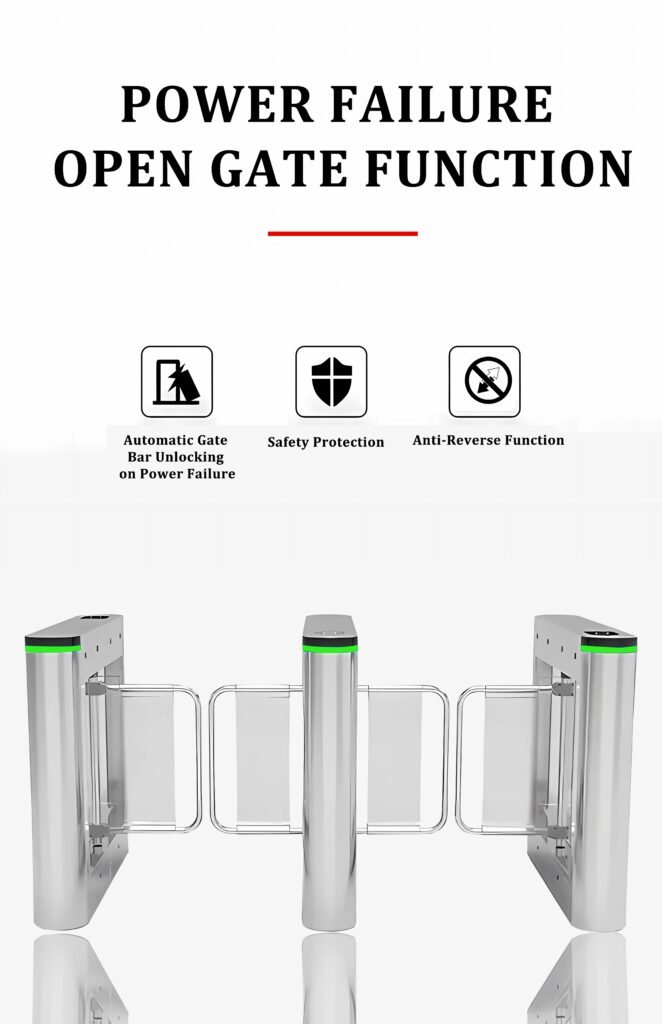

Power-Off Release: In the event of a power outage, the gate automatically unlocks, allowing free passage and ensuring safe evacuation.
Versatile Application: Suitable for both indoor and outdoor environments, the HF-SG03 operates effectively in a wide temperature range from -40°C to 70°C and can handle relative humidity up to 90% without condensation.
User-Friendly Design: The sleek and modern design of the HF-SG03 not only enhances the aesthetic appeal of any location but also ensures ease of use for both operators and children.
Low Maintenance: Thanks to its high-quality construction and reliable components, the HF-SG03 requires minimal maintenance, reducing long-term operational costs and downtime.
Energy Efficiency: Powered by AC220V±10W, 50±10KHZ, the HF-SG03 is an energy-efficient choice, helping to reduce operational costs while maintaining high performance.
Communication Interface: Equipped with a standard RS485 interface, the HF-SG03 supports communication distances of up to 1200 meters, ensuring reliable integration with existing access control systems.
Applications
Amusement Parks: Ensure safe and controlled access for children in play areas and attractions.
Schools and Daycares: Provide secure entry and exit points for young students and toddlers.
Family Entertainment Centers: Manage the flow of children in interactive play zones and activity areas.
Zoos and Aquariums: Control access to kid-friendly exhibits and interactive sections.
Shopping Malls: Regulate entry to children’s play areas and family zones.
Related products
product information
Our Child-Friendly Swing Gate is specially designed with children in mind, offering a perfect blend of safety, durability, and functionality. Tailored to meet the needs of young users, this swing gate ensures a secure and enjoyable experience in environments like schools, playgrounds, and family entertainment centers.
| Chassis material | 304 Stainless Steel |
| product type | speed gate |
| Working voltage | AC220±10%V 50±10%HZ |
| channel width | 600-900mm |
| Power consumption | 100W |
| Rotary rod transmission angle | 120° |
| Working environment | -40~125℃ |
| Gate opening and closing time | 0.8-1 second |
| adjustablePassing speed | 30 people/minute(normally open),25-30 people/minute(normally closed) |
| The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Control technology | Speedgate’s new multi-function self-test motherboard |
| Responding speed | 600RPM |
| Communication Interface | Standard RS485 interface, distance＜1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
| Use/storage temperature | 45°C/-20°C~55°C |
| Use/storage temperature | 40%~80%/0%~90% (no condensation) |
| Noise | ＜50DB |
| Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -20°C~50°C |
| Storage temperature | -20°C~50°C |
| Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 21W |
| Torque | 100Nm |
| Swing arm | 304 Stainless Steel |
| Material | 304 Stainless Steel |
| Thickness | 8-12mm |
| Length | 275-400mm |
Our turnstiles are packed in durable wooden crates, ensuring they reach you safely and efficiently. We deliver peace of mind with every order.
FAQ Schema
The swing gate supports multiple authentication methods including card swipe, QR code scanning, fingerprint recognition, and facial recognition.
The swing gate uses advanced sensors to ensure that only one person can pass through at a time. If a person tries to follow closely behind without proper authentication, the gate will prevent entry.
Yes, our swing gates are highly versatile and can be used in various high-traffic areas like shopping malls, train stations, airports, and office buildings.
The swing gate is powered by a reliable electrical system designed for continuous operation in high-traffic environments.
Yes, the swing gate is designed for easy installation and can be configured to suit different operational needs.
Yes, it can be customized for one-way or two-way access depending on your needs.
The swing gate uses a smooth, silent mechanism that ensures minimal noise during operation, making it ideal for use in public spaces.
The swing gate requires minimal maintenance. Regular cleaning and occasional checks to ensure smooth operation are recommended.
The Child-Friendly Swing Gate HF-SG03 is the perfect blend of safety, efficiency, and charm. Its child-safe design, durable construction, and advanced features make it an ideal choice for any environment catering to young users. Choose the HF-SG03 for a secure, reliable, and delightful access control solution that ensures the safety and happiness of children.
