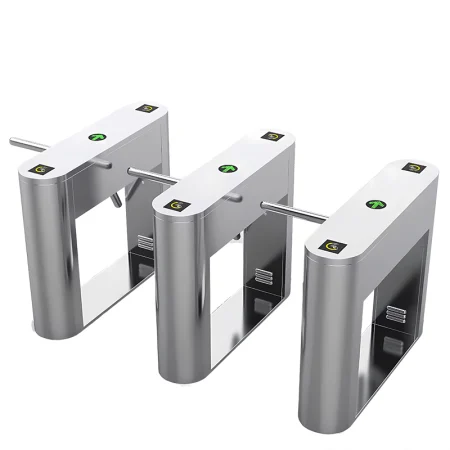

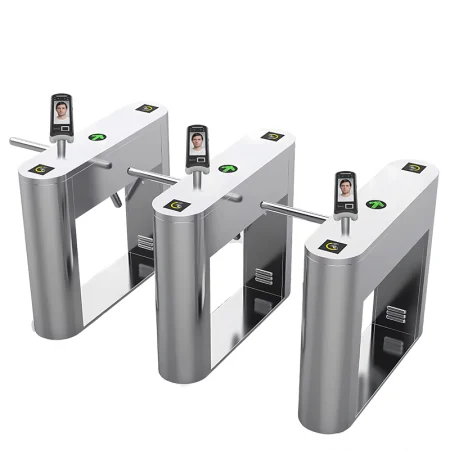

The HF-TR06 combines advanced design with robust security features, making it a perfect solution for high-traffic areas. Its bridge-type circular arc plane structure ensures smooth and stable passage while providing secure access control. Crafted from high-quality 304 stainless steel, this turnstile is durable, corrosion-resistant, and built to withstand continuous use in various environments. With over 20 years of manufacturing experience, we offer OEM & ODM customization to meet your specific needs. The HF-TR06 seamlessly integrates with our proprietary access control systems, providing a complete and reliable security solution for office buildings, commercial complexes, and public spaces.
Our Products

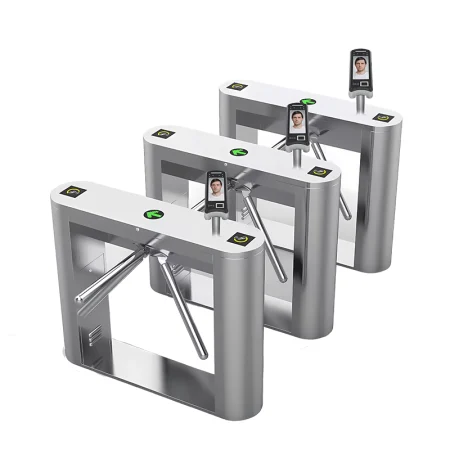

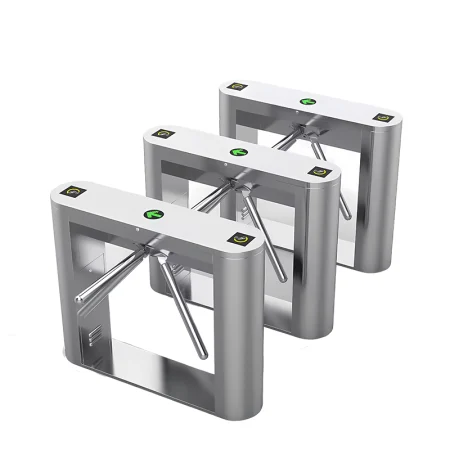

The HF-TR06 features a sleek bridge-type circular arc plane design, offering both stability and smooth passage for efficient access control. Its tripod structure ensures secure entry and exit management, ideal for high-traffic areas. The turnstile is built for durability, providing reliable performance in both indoor and outdoor environments. With its modern design and secure functionality, the HF-TR06 is perfect for use in office buildings, commercial spaces, and public facilities, making it an ideal choice for any access control system.
| Working environment temperature | -40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Traffic speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485,232 protocol, standard communication distance of electrical appliances: <1200 meters |
| Chassis material | 304 stainless steel |
| Electrical control | Motor drive |
| Power-off gate opening function | After power off, the gate bar will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar rotates a certain angle, the strong reverse rotation of the gate bar will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |

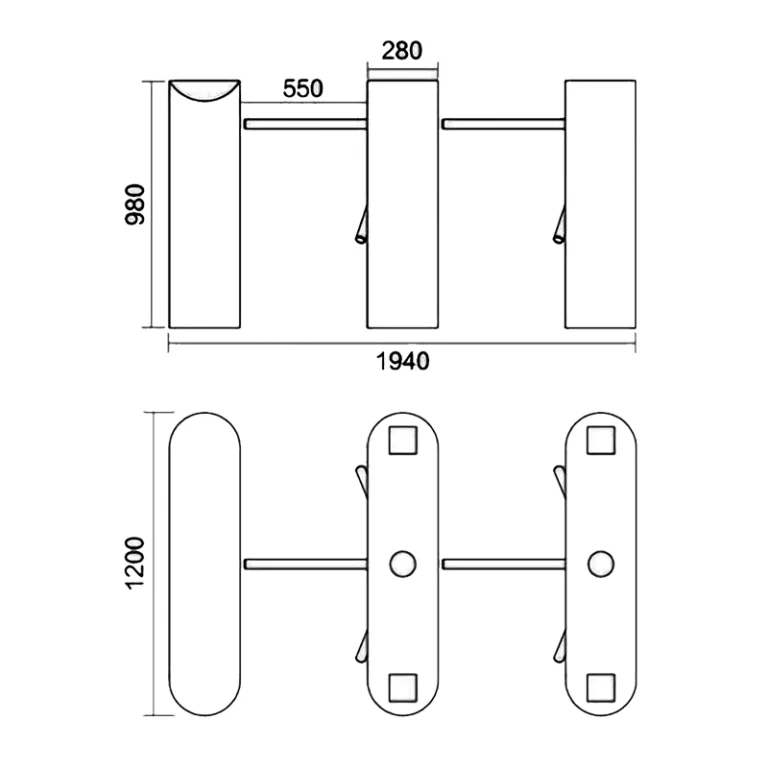

| Physical Dimensions(mm) | 1200*280*980 |
| Box material | 304 stainless steel, cover steel 1.2MM thickness / side body 1.0mm |
| Material thickness(mm) | 1.2 |
| Channel width(mm) | ≤550mm |
| Passing speed | ≥50 people/min (normally closed mode) |
| Application environment | Indoor |
| Working temperature | -30℃~60℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Average power consumption（W） | 60 |
Each tripod turnstile is carefully packaged to ensure it reaches its destination in perfect condition. The unit is securely wrapped in durable, scratch-resistant film to protect its surface and components from any potential damage during transit. Custom high-density foam inserts are used to stabilize the internal mechanisms and the tripod structure, minimizing movement and preventing impact or vibration. The packaging is designed for safe stacking, optimizing space and shipping efficiency, and includes lifting points for easy handling. This ensures the turnstile arrives safely, ready for installation and long-term operation.
