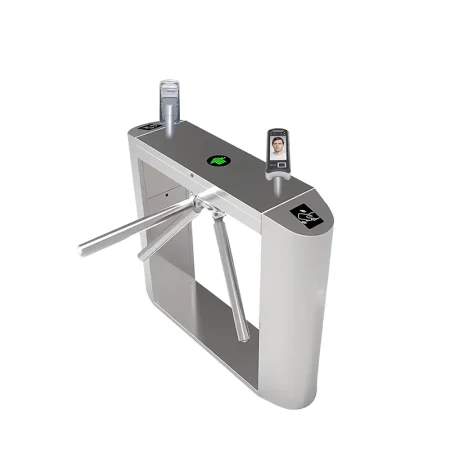

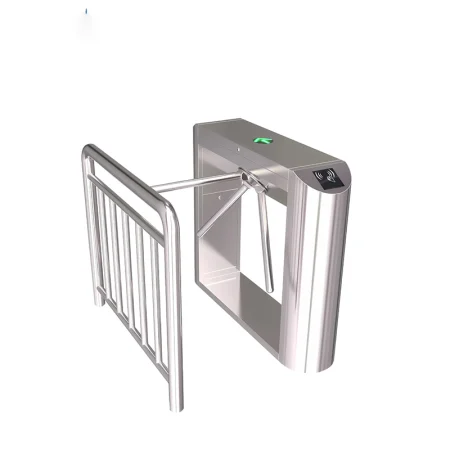

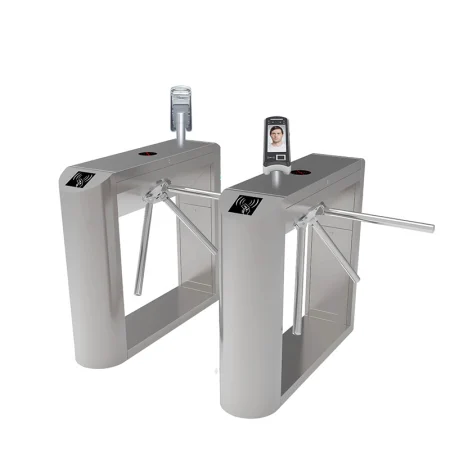

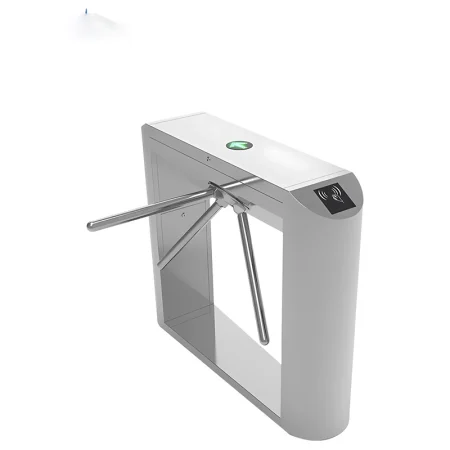

The Bridge Type Circular Arc Inclined Tripod Turnstile HF-TR02 is a durable and efficient access control solution for high-traffic areas. Its bridge design ensures stability, while the circular arc inclined structure allows smooth passage. Made from 304 stainless steel, it’s built to withstand heavy use. Equipped with safety sensors to detect obstacles, it provides secure and reliable operation. Ideal for office buildings, commercial complexes, and public spaces, the HF-TR02 offers seamless integration with access control systems and can be customized with OEM & ODM options.
Our Products
The Bridge Type Circular Arc Inclined Tripod Turnstile HF-TR02 features a unique bridge design combined with a circular arc inclined tripod structure, offering a blend of stability and smooth passage flow. The “bridge type” structure ensures solid support, while the “circular arc inclined” design provides a sleek, efficient turnstile solution for high-traffic environments. This turnstile is ideal for controlling access in busy public spaces, offices, and commercial areas.
| Working environment temperature | -40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Traffic speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485,232 protocol, standard communication distance of electrical appliances: <1200 meters |
| Chassis material | 304 stainless steel |
| Electrical control | Motor drive |
| Power-off gate opening function | After power off, the gate bar will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar rotates a certain angle, the strong reverse rotation of the gate bar will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |

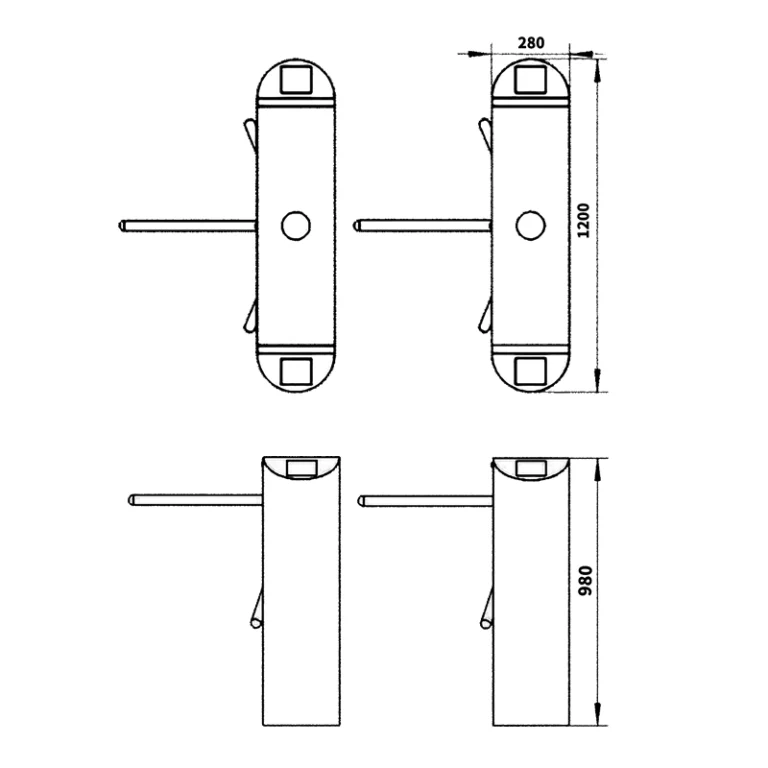

| Physical Dimensions(mm) | 1200*280*980 |
| Box material | 304 stainless steel, cover steel 1.2MM thickness / side body 1.0mm |
| Material thickness(mm) | 1.2 |
| Channel width(mm) | ≤550mm |
| Passing speed | ≥50 people/min (normally closed mode) |
| Application environment | Indoor |
| Working temperature | -30℃~60℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Average power consumption（W） | 60 |
Each of our products is carefully packaged to ensure it arrives in perfect condition, ready for seamless installation. The unit is first wrapped in durable, scratch-resistant film to protect the surface and sensitive components from damage during transport. Custom-designed, high-density foam inserts are used to secure the structure and internal mechanisms, preventing any movement and minimizing the risk of impact or vibration. This robust packaging allows for safe stacking, optimizing shipping efficiency, and includes integrated lifting points for easy handling and secure transport, ensuring our products arrive safely for smooth installation and long-term storage.
