The HF-TR05 offers a sophisticated and reliable access control solution for high-traffic environments. Featuring a unique bridge-type arc design, it combines aesthetic appeal with robust functionality, ensuring smooth and secure passage. Built with 304 stainless steel, this turnstile is durable and resistant to wear, making it ideal for both indoor and outdoor installations. With over 20 years of manufacturing experience, our company provides expert craftsmanship and tailored solutions. We offer OEM & ODM customization options to meet specific requirements, and the turnstile seamlessly integrates with our proprietary access control systems, providing a complete security solution for office buildings, commercial complexes, and public spaces.
Our Products

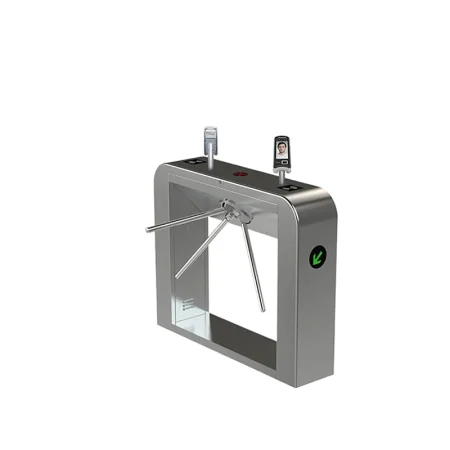

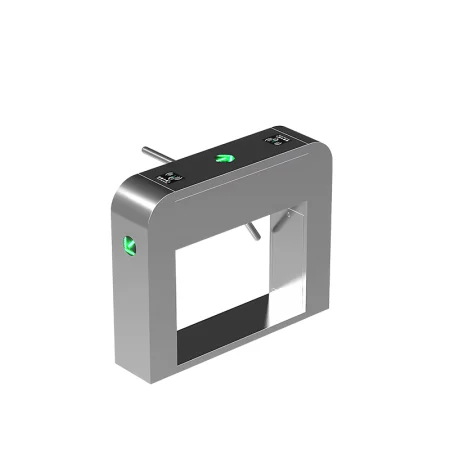

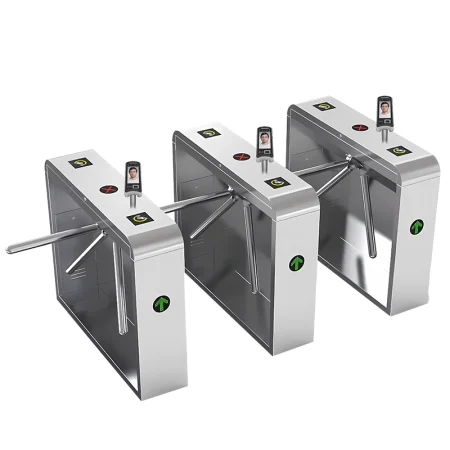

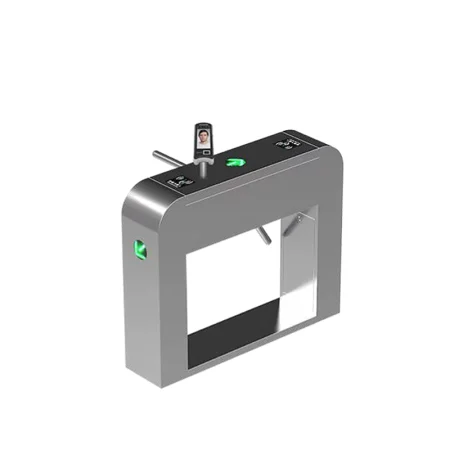

The Bridge Type Arc Tripod Turnstile HF-TR05 combines innovative design and reliable security functionality. Featuring a bridge-type arc structure, it ensures both stability and smooth passage, making it ideal for high-traffic environments. The tripod design enhances security while allowing for efficient control of foot traffic. Perfect for a variety of settings, including office buildings, commercial complexes, and public spaces, this turnstile is built to withstand heavy usage while maintaining a sleek, modern appearance.
| Working environment temperature | -40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Traffic speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485,232 protocol, standard communication distance of electrical appliances: <1200 meters |
| Chassis material | 304 stainless steel |
| Electrical control | Motor drive |
| Power-off gate opening function | After power off, the gate bar will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar rotates a certain angle, the strong reverse rotation of the gate bar will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from retrograde |

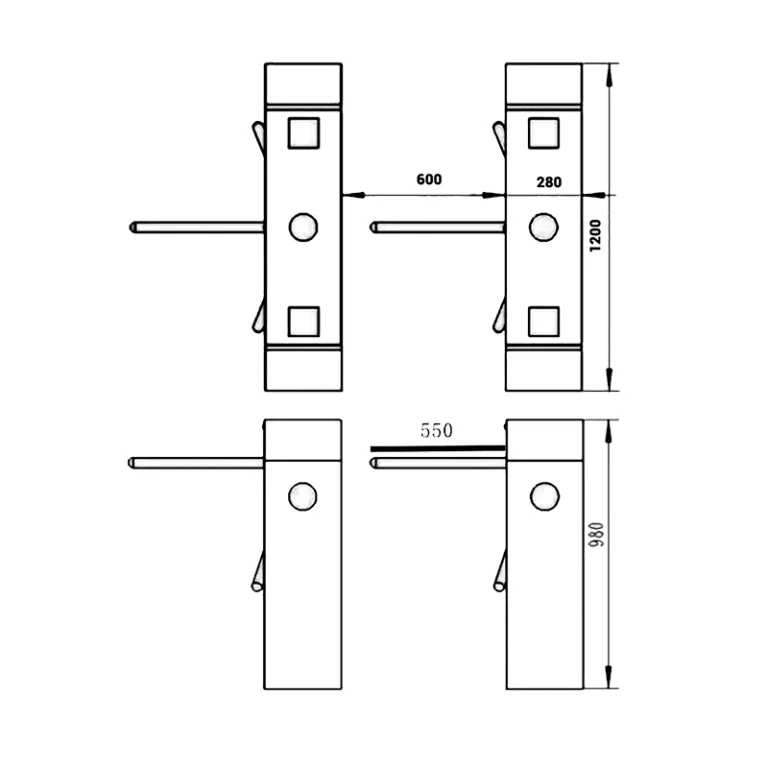

| Physical Dimensions(mm) | 1200*280*980 |
| Box material | 304 stainless steel, cover steel 1.2MM thickness / side body 1.0mm |
| Material thickness(mm) | 1.2 |
| Channel width(mm) | ≤550mm |
| Passing speed | ≥50 people/min (normally closed mode) |
| Application environment | Indoor |
| Working temperature | -30℃~60℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Average power consumption（W） | 60 |
Each tripod turnstile is carefully packaged to ensure safe delivery and hassle-free installation. The unit is first wrapped in durable, scratch-resistant film to protect its surface and sensitive components during transport. Custom high-density foam inserts are strategically placed to secure the internal mechanisms and tripod structure, preventing any movement or damage from impacts and vibrations. The packaging is designed for efficient stacking and optimized shipping, with integrated lifting points for easy handling. This ensures the turnstile arrives in perfect condition, ready for installation and long-term use.
