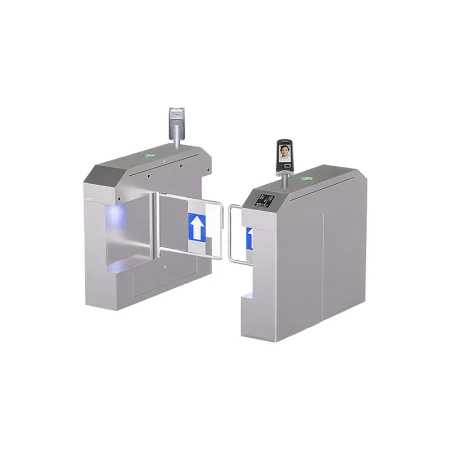

The Bridge Type Angled Swing Gate HF-SG07 is a durable, modern security solution for high-traffic or compact spaces. Its bridge design ensures stability, and the angled swing provides smooth passage. Made with 304 stainless steel, it’s built to last and handle heavy use. Equipped with advanced safety sensors to detect obstacles, it’s ideal for office buildings, commercial complexes, and public spaces. With over 20 years of manufacturing experience, we offer OEM & ODM customization, and our gates can integrate seamlessly with our access control systems.
Our Products
The Bridge Type Angled Swing Gate HF-SG07 is a durable, modern security solution for high-traffic or compact spaces. Its bridge design ensures stability, and the angled swing provides smooth passage. Made with 304 stainless steel, it’s built to last and handle heavy use. Equipped with advanced safety sensors to detect obstacles, it’s ideal for office buildings, commercial complexes, and public spaces. With over 20 years of manufacturing experience, we offer OEM & ODM customization, and our gates can integrate seamlessly with our access control systems.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | 304 stainless steel |
| Power-off gate opening function | after power failure, the gate lever will automatically unlock and become a free passage mode,which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

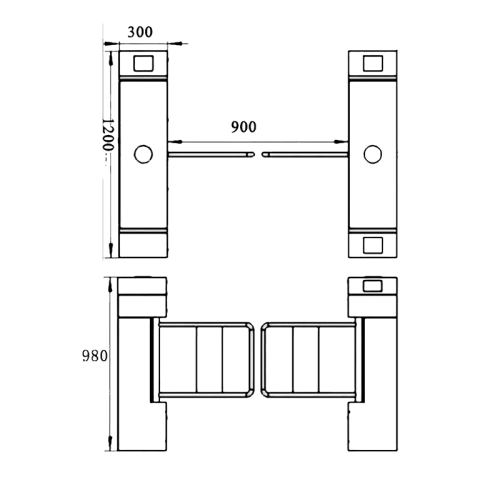

| Physical Dimensions(mm) | L1200*W300*H980 |
| Chassis material | 304 stainless steel |
| Channel width(mm） | ≤900 (standard) |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
Every gate undergoes a meticulous packaging process, guaranteeing its flawless arrival and readiness for installation, no matter the destination. Each unit is first individually wrapped in durable, scratch–resistant film to protect its chassis and sensitive components from abrasions and moisture. Next, custom-fit, high-density foam inserts strategically cradle the angled design and internal mechanisms, minimizing impact and vibration during transit.This sturdy construction allows for safe stacking and optimizes freight, with integrated lifting points ensuring easy and secure handling worldwide, preparing your gate for smooth delivery and long-term, protected storage.
Factory Showcase
