The HF-ST03 is a high-performance bridge square speed gate, specifically designed for fast, efficient, and secure pedestrian access in demanding, high-traffic environments. To ensure both durability and aesthetics, the chassis is crafted using an aluminum alloy oxidation process, delivering a lightweight yet sturdy structure with excellent corrosion resistance and a clean, modern appearance. In addition, it offers smooth, quiet, and responsive operation, which greatly enhances user flow and security control. Backed by over 20 years of manufacturing experience, we are committed to providing reliable, customizable solutions—supporting both OEM and ODM services to meet diverse project requirements. Furthermore, the HF-ST03 is fully compatible with advanced access control technologies, thereby making it a smart and dependable choice for modern security systems.
Our Products
The product is a robust and modern access control solution, specifically designed with a square-edge bridge structure for enhanced stability and visual symmetry. Constructed using an aluminum alloy oxidation process, it offers a strong yet lightweight frame with excellent corrosion resistance and a refined industrial finish. Moreover, its modular design ensures seamless integration with multiple authentication systems—including RFID, QR codes, and biometrics—while, at the same time, advanced anti-tailgating and safety detection features provide reliable pedestrian management.
| power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | Aluminum Alloy |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

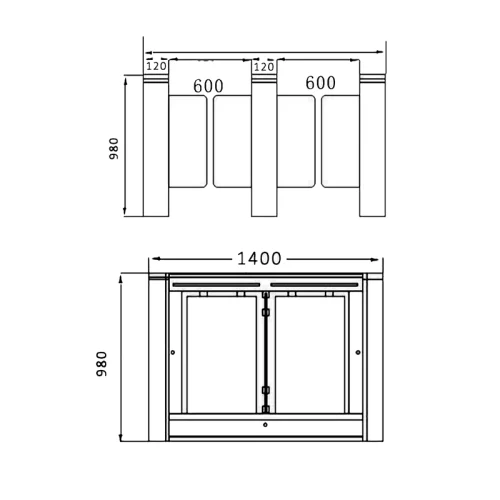

| Physical Dimensions(mm) | L1400*W120*H980mm |
| Box material: Chassis material | Chassis material: 304 stainless steel wire drawing process, cover steel 1.2MM thickness / side tube body 1.0mm |
| Swing arm length | 600-900mm |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | Indoor |
| Operating temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Communication interface | standard RS485 interface, distance ≤ 1200 meters |
To ensure the product arrives in perfect condition, we begin with secure and professional packaging. Each unit is carefully wrapped with protective materials and placed in reinforced export-grade wooden or carton boxes, which not only prevents damage during transit but also facilitates safe handling and storage. Furthermore, all packaging complies with international shipping standards, making it suitable for air, sea, and land transportation. Once packaged, the products are promptly dispatched through our reliable logistics partners, ensuring timely and efficient delivery to destinations worldwide. In addition, tracking information is provided for full shipment transparency and peace of mind.

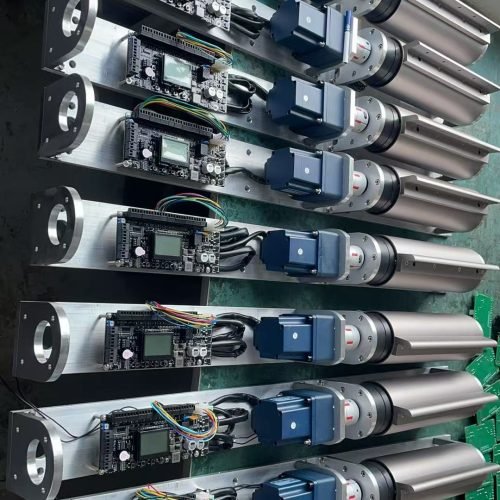

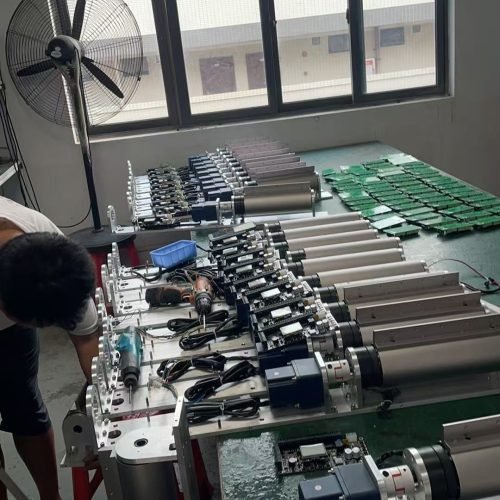

Factory Showcase
