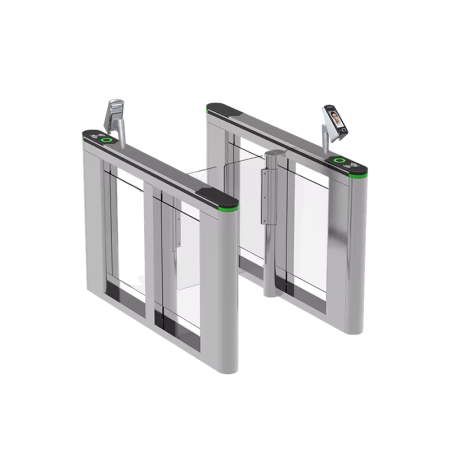

The HF-ST05 is a high-performance bridge arc speed gate. Its chassis is crafted using an aluminum alloy oxidation process, ensuring a lightweight yet durable frame with excellent corrosion resistance and a sleek, modern arc-shaped design. Ideal for applications such as office buildings, transportation hubs, and commercial facilities, the HF-ST05 delivers smooth, quiet, and rapid operation, optimizing both user experience and security management. With over 20 years of manufacturing expertise, we offer reliable and customizable solutions—supporting both OEM and ODM services to meet a wide range of project requirements.
Our Products

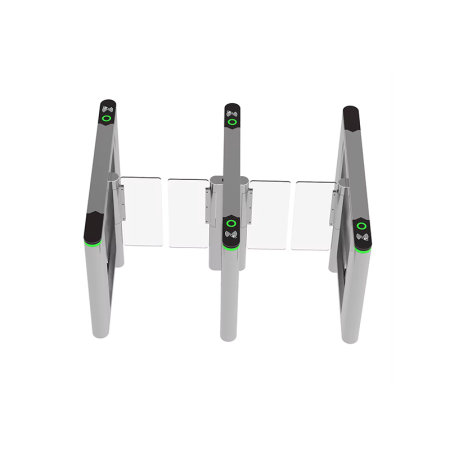

Bridge Arc Speed Gate HF-ST05 is a modern access control solution featuring a sleek arc-shaped bridge design that combines visual elegance with functional performance. Crafted through an aluminum alloy oxidation process, it offers a lightweight yet robust structure with excellent resistance to corrosion and wear.With high reliability and smooth operation, the HF-ST05 delivers a balance of security, speed, and aesthetic appeal for modern access control needs.
| power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | Aluminum Alloy |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

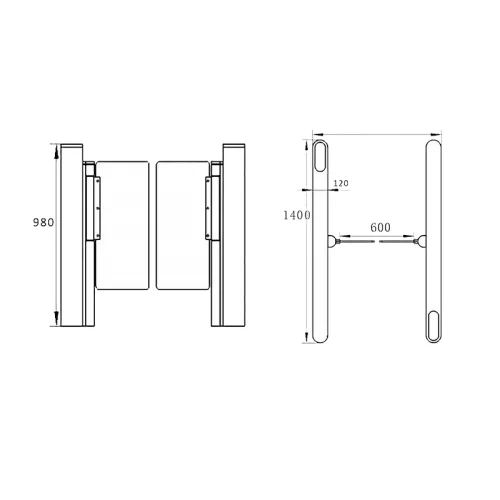

| Physical Dimensions(mm) | L1400*W120*H980mm |
| Box material: Chassis material | Chassis material:304 stainless steel,cover steel 1.2mm thick / side body 1 .0mm thick |
| Swing arm length | 600-900mm |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | Indoor |
| Operating temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Communication interface | standard RS485 interface, distance ≤ 1200 meters |
Each unit is securely packaged to ensure safe transport and easy on-site handling. Components are individually protected using shock-absorbing foam and anti-scratch film, then placed into moisture-resistant cartons. All items are packed within reinforced wooden crates that comply with international export standards, providing reliable protection against impact, vibration, and environmental factors during transit. Clear labeling and modular packing design facilitate quick identification and efficient installation. Logistics coordination is tailored to project timelines and destination requirements, ensuring smooth delivery to both domestic and international locations.

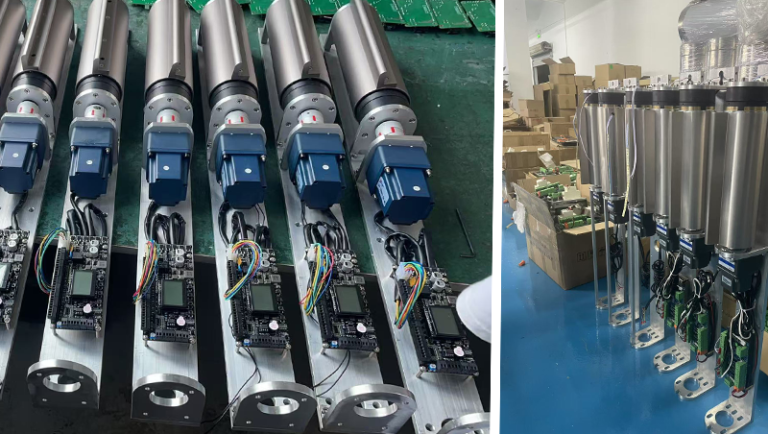

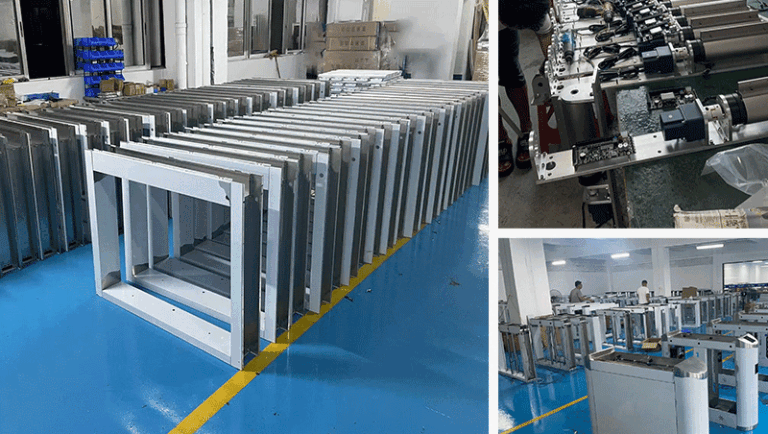

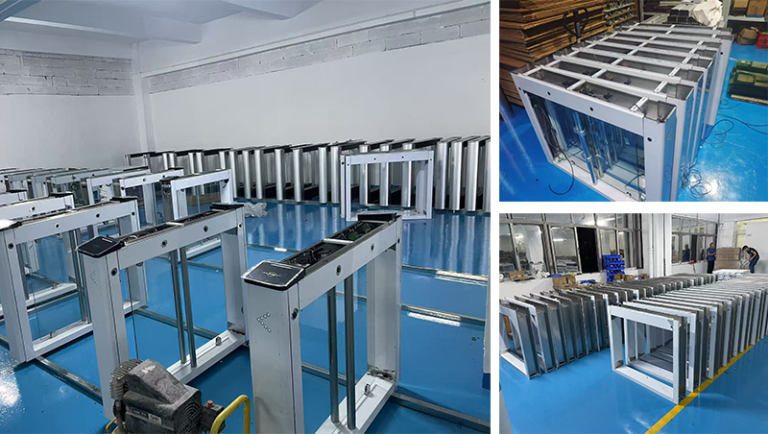

Factory Showcase
