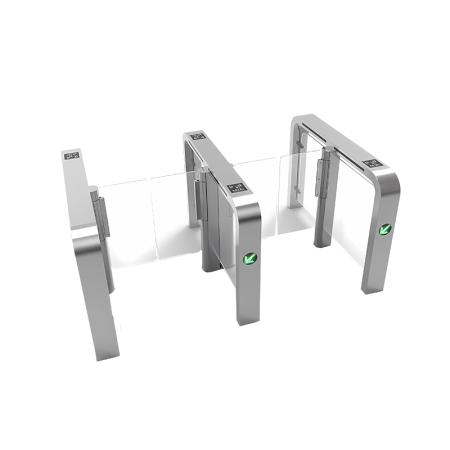

The HF-ST04 is a high-performance bridge arc angle speed gate, engineered for rapid, efficient, and secure pedestrian access in high-traffic environments. Its chassis is manufactured using an aluminum alloy oxidation process. Ideal for settings such as corporate offices, transportation hubs, and commercial complexes, the HF-ST04 offers smooth, quiet, and high-speed operation. Backed by over 20 years of manufacturing expertise, we provide customizable and dependable solutions—supporting both OEM and ODM services to meet diverse customer requirements. The HF-ST04 integrates effortlessly with various advanced access control systems, making it a smart, secure, and stylish choice for modern facility management.
Our Products
This product is a premium access control solution designed with a distinctive arc-angle structure that blends aesthetics with functionality. Its curved design not only enhances the overall appearance but also improves pedestrian guidance and comfort during passage. Engineered for high-traffic environments such as office buildings, metro stations, and secure facilities, which delivers fast, stable, and silent operation. It supports seamless integration with various authentication systems—RFID, QR code, facial recognition, and more—making it a versatile and elegant solution for secure, efficient, and intelligent access control.
| power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | Aluminum Alloy |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |
| Physical Dimensions(mm) | L1400*W120*H980mm |
| Box material: Chassis material | Chassis material: 304 stainless steel wire drawing process, cover steel 1.2MM thickness / side tube body 1.0mm thick |
| Swing arm length | 600-900mm |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | Indoor |
| Operating temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Communication interface | standard RS485 interface, distance ≤ 1200 meters |
Each unit is carefully packaged to ensure maximum protection during transportation. Components are individually wrapped with anti-scratch film and shock-absorbing materials, then placed into moisture-resistant cartons and secured within export-grade wooden crates. The packaging structure is designed to minimize movement and impact, reducing the risk of damage during handling and long-distance shipping. Clear labeling and modular packaging support quick identification and efficient on-site installation. Logistics arrangements are coordinated based on project timelines and destination requirements, ensuring timely and reliable delivery to both domestic and international sites.

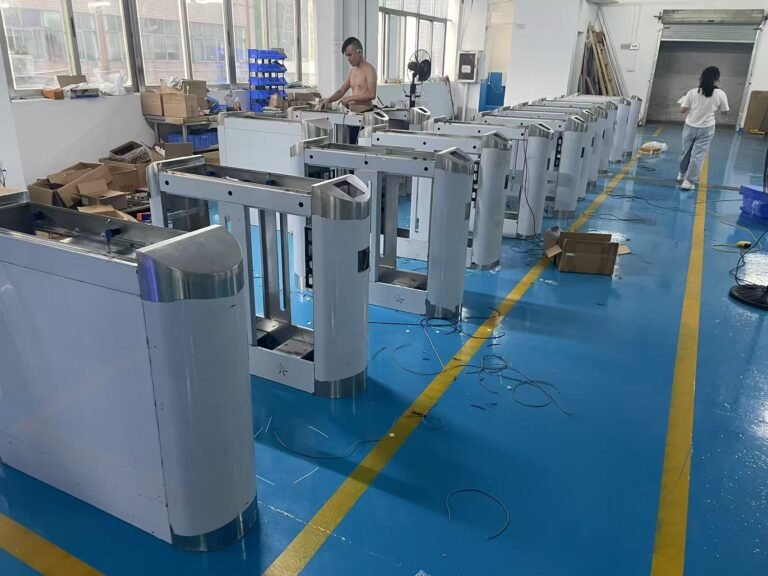

Factory Showcase
