The Box-Type Small Waist Swing Gate HF-SG08 offers a sleek and efficient access control solution, ideal for managing high-traffic areas. Crafted from premium 304 stainless steel, this durable gate ensures long-lasting performance while maintaining a modern, professional look. With 20 years of manufacturing experience, we provide tailored solutions (OEM & ODM) to suit specific needs. The HF-SG08 is fully compatible with our advanced access control systems, offering seamless integration for enhanced security and smooth passage management in any environment.
Our Products
The Box-Type Small Waist Swing Gate HF-SG08 is a compact, efficient, and stylish access control solution designed for high-traffic areas. Its space-saving, modern design seamlessly integrates into various environments, including offices, airports, and public buildings. This gate features smooth, bidirectional swing functionality, ensuring both secure and quick passage. Built with durability in mind, it operates quietly and reliably, offering enhanced security and easy integration with advanced security systems like RFID or biometric readers.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | 304 stainless steel |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode,which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

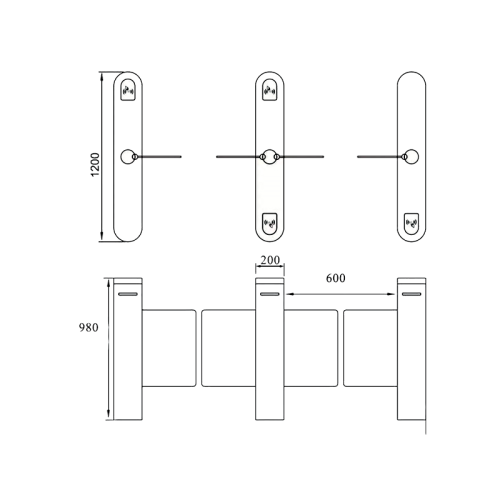

| Physical Dimensions(mm) | L1200*W200*H980 |
| Chassis material | 304 stainless steel |
| Channel width(mm) | ≤600（standard），600-900（Non standard） |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
Our turnstile gates are meticulously packaged to ensure safe and secure delivery to any location. Each unit is carefully wrapped with a protective layer to safeguard against dust, scratches, and light damage. To prevent impact during transit, we use high-quality foam or bubble wrap for additional cushioning. The turnstiles are then placed in sturdy, reinforced cardboard boxes that are optimized for secure stacking and easy handling. This thoughtful packaging not only protects the gates during shipping but also ensures they arrive in perfect condition, ready for quick installation and long-term use.

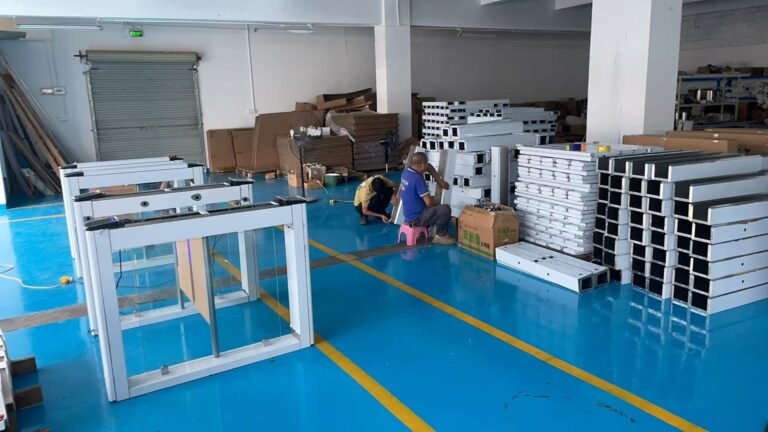

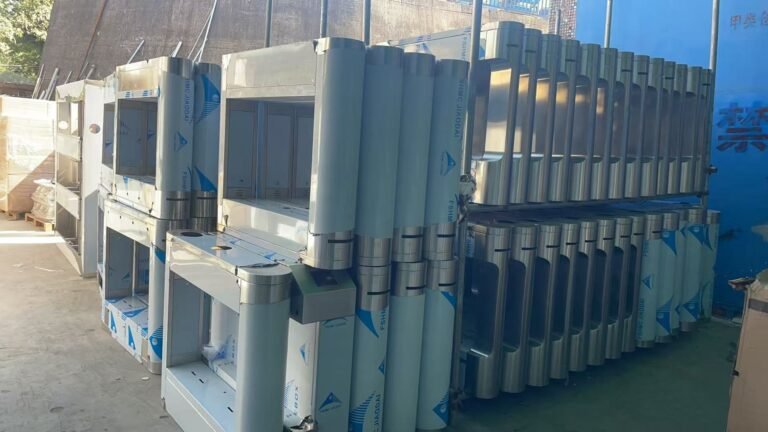

Factory Showcase
