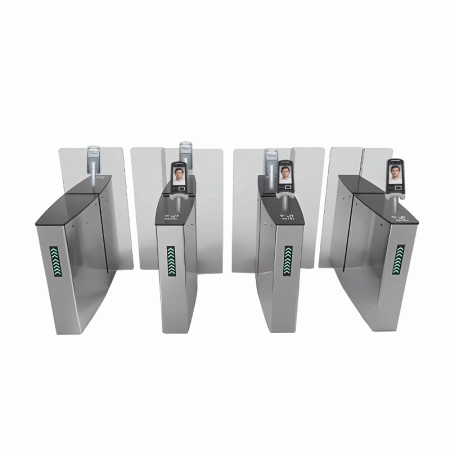

The HF-FI10 is a high-performance box luxury translation gate, crafted from premium 304 stainless steel for superior durability, corrosion resistance, and an elegant, high-end appearance. Designed to meet the demands of high-traffic access control environments, it delivers smooth, quiet, and secure pedestrian movement. With over 20 years of manufacturing expertise, we provide reliable, customizable solutions and support both OEM and ODM services to meet a variety of customer needs. The HF-FI10 is fully compatible with our advanced access control systems, making it an excellent choice for integrated security in commercial buildings, corporate offices, transportation hubs, and other premium public or private facilities.
Our Products
Featuring a modern box-style structure with a luxury finish, the HF-FI10 is made from high-quality 304 stainless steel, offering excellent durability, corrosion resistance, and an elegant visual presence. The gate operates with a smooth and silent linear translation mechanism, ensuring fast and secure passage in high-traffic areas. Ideal for upscale environments such as corporate headquarters, government buildings, airports, and VIP zones, it seamlessly integrates with various access control technologies including RFID, facial recognition, QR code, and fingerprint systems. The HF-FI10 not only enhances security but also elevates the image of any facility where appearance and performance are equally important.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

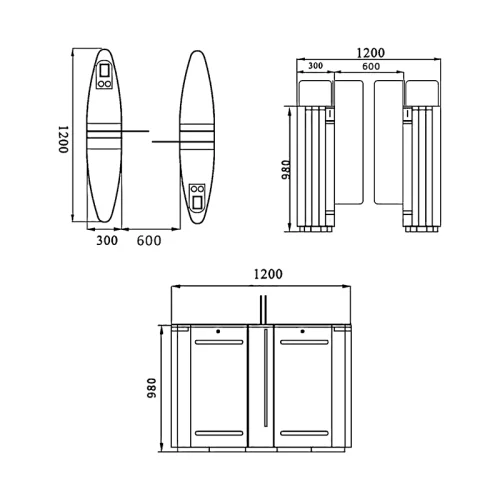

| Physical Dimensions(mm) | L1200*W300*H980 |
| Chassis material | 304 stainless steel technology |
| Channel width(mm) | 550-600 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
To match the premium quality of the product, each unit is meticulously packaged using multi-layer protection. Components are individually wrapped in shock-absorbing materials, then secured within reinforced export wooden crates to prevent impact, abrasion, or moisture damage during transit. We collaborate with reliable global logistics partners to ensure timely, safe delivery to your designated location, whether by sea, air, or land. Customized packing solutions and consolidated shipping options are also available to meet specific project or site requirements.
