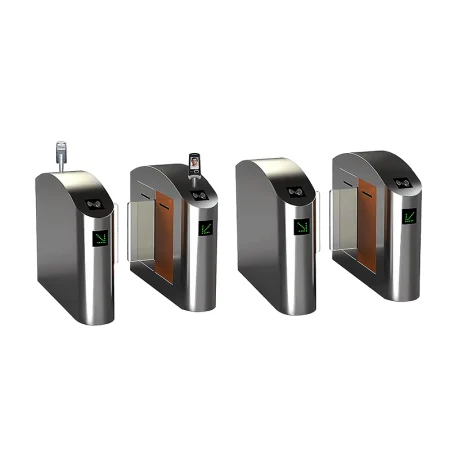

The HF-FI11 is a high-performance box arc top translation gate, constructed with premium 304 stainless steel to ensure exceptional durability, corrosion resistance, and a smooth, modern aesthetic. Designed for high-traffic access control environments, it delivers quiet, efficient, and secure pedestrian movement. With over 20 years of manufacturing expertise, we provide reliable and customizable solutions, supporting both OEM and ODM services to meet a wide range of customer needs. The HF-FI11 is fully compatible with our advanced access control systems, making it a dependable choice for integrated security in commercial, industrial, and public applications.
Our Products
The HF-FI11 is a premium access control solution featuring a sleek arc-top design and smooth sliding gate mechanism. Crafted from high-grade 304 stainless steel, it combines strength, corrosion resistance, and modern aesthetics, making it ideal for indoor and semi-outdoor use. The HF-FI11 is engineered for high-traffic environments such as office buildings, metro stations, airports, and government facilities. Its advanced control interface supports seamless integration with RFID, QR code, biometric, and other authentication systems. The product offers both functionality and visual appeal for modern security applications.
| Power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

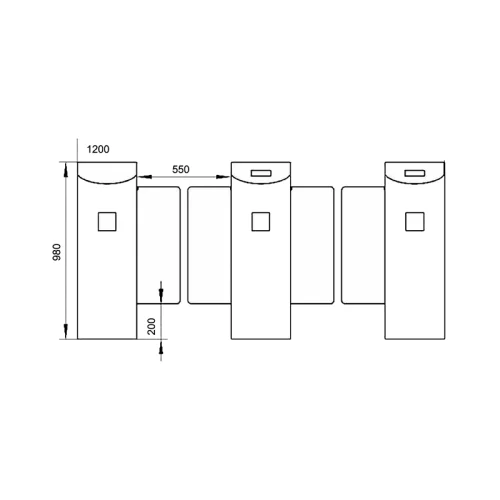

| Physical Dimensions(mm) | L1200*W300*H980 |
| Chassis material | 304 stainless steel technology |
| Channel width(mm) | 550-600 |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | indoor, outdoor (shade) -10℃～ 70℃ Relative humidity: ≤90%, no condensation |
| Working temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220±10%V 50±10%HZ |
| Average power consumption（W） | 100W |
The HF-FI10 is carefully packed to ensure safe delivery and easy installation upon arrival. Each gate unit is disassembled into major components, wrapped in protective foam and plastic film, and placed in heavy-duty wooden cases to prevent damage during long-distance transport. All packages are labeled with part numbers and handling instructions for straightforward identification. We offer flexible shipping solutions. Our experienced logistics team ensures accurate documentation and on-time dispatch to both domestic and international destinations.international destinations.
Factory Showcase
