Arc Tripod Turnstile HF-TR05
The Arc Tripod Turnstile HF-TR05 – a sleek and highly reliable access control solution designed to enhance security and streamline entry management. Perfect for high-traffic environments, this durable turnstile offers seamless control of pedestrian access, ensuring both efficiency and safety. Whether it’s for office buildings, commercial spaces, or transportation hubs, the Arc Tripod Turnstile HF-TR05 is the ideal choice for businesses looking to manage foot traffic with ease and precision.
Product Features:
Durable and Robust Design
The Arc Tripod Turnstile HF-TR05 is built with high-quality materials, ensuring durability and longevity even in high-traffic environments. Its robust design can withstand frequent use and harsh conditions, making it a reliable solution for long-term use.
Fast and Efficient Access
This turnstile ensures a smooth flow of people, reducing congestion at entrances and improving the overall efficiency of access control. It is designed to handle high volumes of foot traffic while maintaining security and order.
Space-Saving Design
The compact and efficient design of the Arc Tripod Turnstile HF-TR05 allows it to fit into tight spaces, making it ideal for locations with limited room. Its sleek, modern look is perfect for a wide range of indoor and outdoor applications.
High Security
With its tripod-style barrier system, the Arc Tripod Turnstile HF-TR05 provides a high level of security by preventing unauthorized entry. The turnstile only allows one person to pass at a time, ensuring strict access control and minimizing the risk of tailgating.
Easy Integration
The Arc Tripod Turnstile HF-TR05 is compatible with a wide range of access control systems, such as RFID, biometric scanners, and ticketing systems. This flexibility makes it easy to integrate with existing security infrastructure, enhancing overall access management.
factory video
Our Tripod Turnstile Gates lined up and ready for deployment! Our skilled workers are conducting thorough checks to ensure each unit meets the highest standards of quality, security, and durability. Watch as we ensure every gate is meticulously inspected and tested, ensuring top-notch performance for your access control needs. Trust our expertise for reliable, high-performance security solutions!
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |

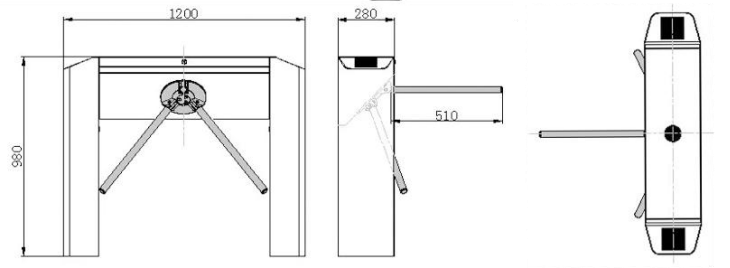

| Dimensions | 1200*280*980 |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Speedgate’s new multi-function self-test motherboard |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 21W |
| Torque | 100Nm |
| Swing arm | Acrylic |
| Material | Aluminum alloy |
| Thickness | 8-12mm |
| Length | 450-550mm |
We prioritize your satisfaction by packing our turnstile products in secure wooden crates. Efficient, reliable, and built to protect—your order is in good hands.
Our box-type tripod turnstile is made of high-quality 304 stainless steel, ensuring durability, corrosion resistance, and a sleek design. It seamlessly integrates with biometric authentication systems such as fingerprint, facial recognition, and RFID, providing high security and efficient access control. Ideal for corporate offices, metro stations, stadiums, and high-security areas, it guarantees smooth and reliable entry management.
Related products
FAQ Schema
The HF-TR05 supports a variety of authentication methods, including IC cards, QR codes, fingerprint scanning, and NFC, providing flexible access control options for different environments.
For details about TR05, please contact your exclusive consultant. If you are contacting us for the first time, you can directly ask for the price by email
Yes, the HF-TR05 is weather-resistant, making it suitable for both indoor and outdoor installations, providing reliable performance in various environments.
We can provide remote technical support and after sales
Delivery within 7 days. Our shipping place is Shenzhen. We can provide sea transportation, express delivery, and air transportation. At the same time, we use wooden boxes for packaging to reduce the impact of goods during transportation.
