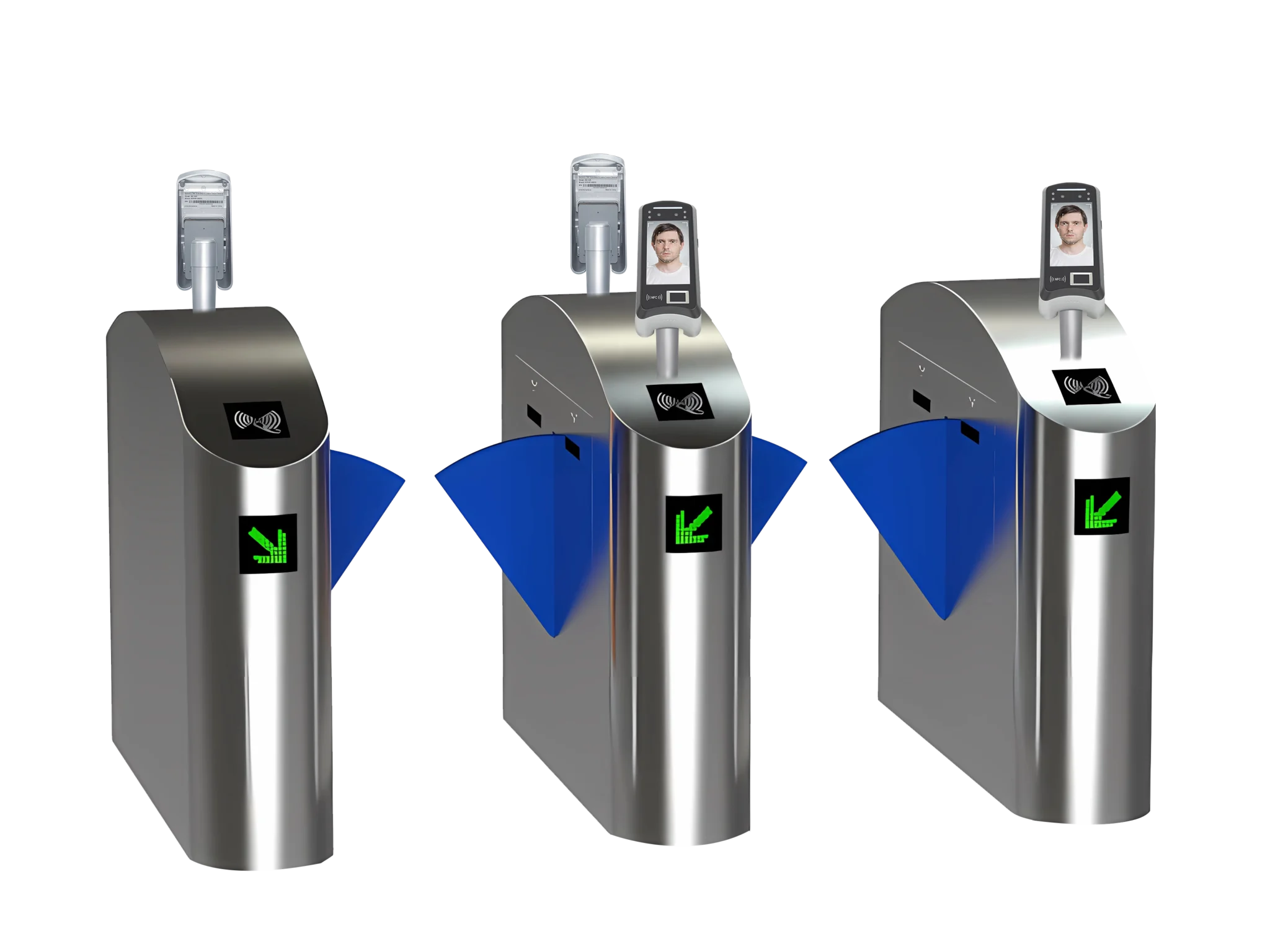

Arc Top Translation Gate HF-FI12
The Arc Top Translation Gate HF-FI12, a state-of-the-art access control solution designed to combine elegance with functionality. Built with premium 304 stainless steel, this gate offers unmatched durability and a sleek, modern design. Whether you’re managing access in a bustling office building, a busy transportation hub, or a secure residential complex, the HF-FI12 ensures reliable performance and seamless pedestrian flow.
Related video
Superior Durability: Constructed with 304 stainless steel, the HF-FI12 is highly resistant to corrosion and wear, ensuring long-term reliability even in harsh conditions. This makes it suitable for both indoor and outdoor installations.
Efficient Pedestrian Flow: With a rapid gate operation time of 0.8 to 1 second, the HF-FI12 ensures smooth and efficient movement of people, reducing wait times and enhancing user experience in high-traffic areas.
High-Capacity Performance: Capable of handling up to 30 people per minute, this gate is ideal for busy locations such as office buildings, transportation hubs, and event venues, ensuring quick and seamless access control.
Enhanced Safety Features: The gate includes a power-off release function, allowing it to unlock automatically during power outages. This feature ensures safe and easy evacuation in emergencies, making it a reliable choice for public safety.
Advanced Security: Equipped with an anti-reverse mechanism, the gate automatically locks if an attempt is made to forcefully reverse it. This prevents unauthorized access and enhances overall security.
Adaptability to Extreme Conditions: Designed to operate in a wide temperature range from -40°C to 70°C and withstand relative humidity up to 90%, the HF-FI12 is suitable for various climates and environments, ensuring consistent performance year-round.
Versatile Application: Whether installed in commercial complexes, transportation hubs, or public venues, the HF-FI12 offers a versatile solution for managing pedestrian flow efficiently and securely.
Energy Efficiency: With an average power consumption of just 100W, this gate is an energy-efficient choice, helping to reduce operational costs while maintaining high performance.
Aesthetic Appeal: The sleek and modern design of the HF-FI12 not only enhances the aesthetic appeal of any location but also ensures ease of use for both operators and pedestrians.
Low Maintenance: Thanks to its robust construction and high-quality materials, the HF-FI12 requires minimal maintenance, reducing long-term operational costs and downtime.
In summary, the Arc Top Translation Gate HF-FI12 combines durability, efficiency, and advanced security features to provide a reliable and aesthetically pleasing access control solution. Its adaptability to various environments and low maintenance requirements make it an excellent investment for any high-traffic location.
Related products
Product Application
Office Buildings: The HF-FI12 is ideal for managing access in corporate environments. It ensures secure entry for employees and visitors while maintaining a professional appearance. Its efficient operation helps streamline the flow of people during peak hours.
Transportation Hubs: Airports, train stations, and bus terminals require reliable access control to manage large volumes of passengers. The HF-FI12’s high-capacity performance and quick operation make it perfect for these settings, ensuring smooth and orderly movement.
Stadiums and Event Venues: During large events, controlling entry and exit points is crucial for security and crowd management. The HF-FI12’s robust design and advanced security features make it suitable for such high-demand environments.
Shopping Malls: Managing the flow of shoppers is essential for maintaining a pleasant shopping experience. The HF-FI12 helps regulate access, ensuring security while enhancing the overall ambiance with its sleek design.
Educational Institutions: Schools, colleges, and universities need reliable access control to ensure the safety of students and staff. The HF-FI12 provides a secure and efficient solution for managing access to campus buildings and facilities.
Hospitals and Healthcare Facilities: In healthcare settings, controlling access to sensitive areas is critical. The HF-FI12 helps manage the flow of patients, visitors, and staff, ensuring a secure and organized environment.
Residential Complexes: Gated communities and apartment buildings benefit from the HF-FI12’s secure access control. It enhances resident safety and privacy while providing a modern and aesthetically pleasing entrance.
Industrial Facilities: Factories and warehouses often have restricted areas that require controlled access. The HF-FI12 ensures that only authorized personnel can enter, enhancing security and operational efficiency.
Public Venues: Museums, libraries, and government buildings require reliable access control to manage visitor flow. The HF-FI12 offers a secure and efficient solution, ensuring a pleasant experience for all visitors.
Commercial Complexes: Mixed-use developments with offices, retail spaces, and recreational areas need versatile access control solutions. The HF-FI12’s adaptability and high performance make it suitable for such diverse environments.
The Flap Barrier Gate is a high-security access control solution designed for smooth and efficient pedestrian management. Made from 304 stainless steel, it offers exceptional durability and corrosion resistance, making it suitable for both indoor and outdoor use. Its anti-reverse function prevents unauthorized entry, ensuring a one-person-per-pass system for enhanced security. Additionally, the gate is equipped with multiple safety features, including anti-pinch sensors and emergency unlocking during power failure, ensuring reliability and user protection in high-traffic environments.
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |

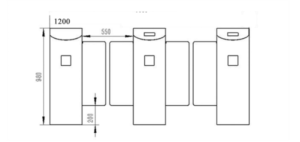

| Dimensions | L1200*W300*H980mm |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
Warranty and maintenance | We can provide warranty and maintenance for our products within a certain period of time. |
| Usage training | Provide user manuals and instructional videos, as well as online training. |
| Support technology development | our engineers to support during your development, and there is developing guide provided. |
| Customized services | Customized according to customer needs. |
| Office Buildings |
| Public Transportation Hubs |
| Commercial Complexes & Shopping Malls |
| Government & Institutional Facilities |
| Factories & Industrial Areas |
| Schools & Universities |
| Residential & Gated Communities |
| Stadiums & Event Venues |
| Hospitals & Medical Facilities |
| Data Centers & High-Security Zones |
In summary, the Arc Top Translation Gate HF-FI12 is well-suited for a wide range of applications, from high-traffic transportation hubs to secure residential complexes. Its combination of durability, efficiency, and advanced security features makes it an excellent choice for any environment requiring reliable access control.
FAQ Schema
Yes, wing gates are designed to be safe. They open and close smoothly, and sensors detect if someone is in the way to prevent accidents.
Most wing gates have a power-off release feature. If the power goes out, the gates unlock automatically for easy passage.
The FI12 is equipped with a power-off release function, allowing the barriers to open automatically in case of a power failure, ensuring safe and uninterrupted passage.
The FI12 supports a high-speed throughput of up to 30 people per minute, making it ideal for high-traffic areas like transit hubs and stadiums.
It’s quick! The wings usually open and close in about 0.8 to 1 second.
Yes, wing gates have anti-tailgating features. If someone tries to follow too closely, the gates will stop them.
