Arc Speed Gate HF-ST04
Best Quality Products
Our Product

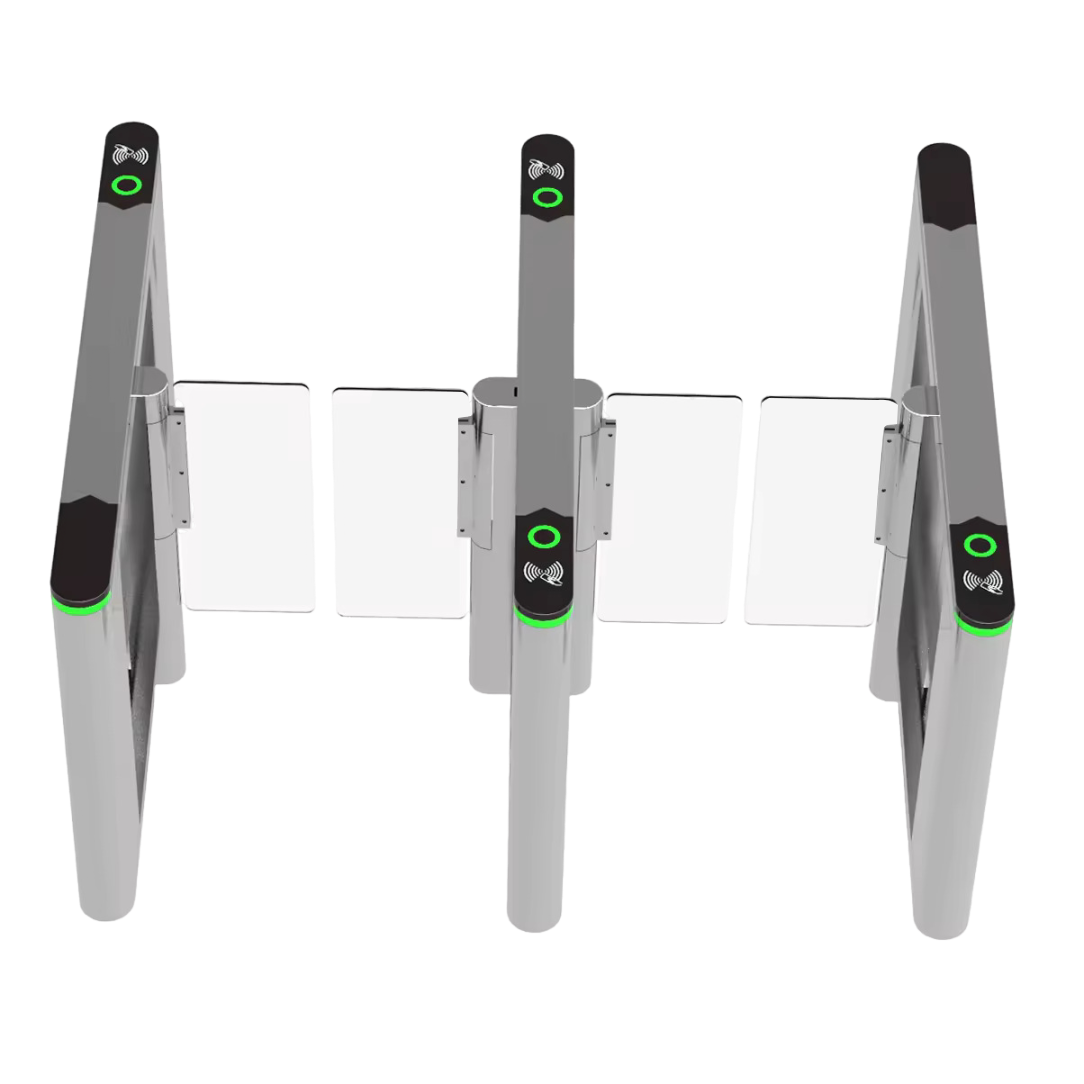

The Arc Speed Gate HF-ST04 is a premium speed gate designed for high-traffic indoor environments, offering a seamless blend of security, efficiency, and modern aesthetics. Engineered with advanced technology, this gate ensures smooth and controlled pedestrian flow while maintaining top-level security.
Product Features
Fast and Efficient Access
Passage speed: 30 people per minute (normally open), 25-30 people per minute (normally closed). Adjustable gate opening/closing time (0.8-1 second) for optimized flow management.
Advanced Security Mechanisms
Anti-tailgating and reverse rotation prevention: Once the gate rotates beyond a certain angle, any forced reverse movement locks the system, preventing unauthorized entry. Automatic unlock during power failure: Ensures a free passage mode for emergency evacuations.
Premium Build and Durability
High-quality aluminum alloy chassis with full oxidation treatment for enhanced durability and a sleek finish. Cover panel made of 3.0mm thick steel, with side frames of 2.0mm thickness, ensuring robustness and longevity.
Versatile and User-Friendly
Passage width adjustable between 600mm to 900mm, making it adaptable for different installation needs. Operates efficiently in extreme conditions with a working temperature range of -40°C to 125°C and humidity below 95% (non-condensing).
Seamless System Integration
Supports standard switch signal input for easy compatibility with existing access control solutions. Equipped with RS485 communication interface, with a standard transmission distance of up to 1200 meters.
Reliable Power Supply
Operates on AC220V ±20%, 50Hz, ensuring stable performance in various settings.
Product Application
Provides controlled access to employees and visitors, ensuring a secure and professional workplace environment. Integrates seamlessly with RFID, biometric, and facial recognition systems for automated entry management.
Office Buildings & Corporate Headquarters
High-security areas like banks, stock exchanges, and data centers require strict access control. Anti-tailgating and reverse rotation prevention features ensure that only authorized personnel can enter.
Financial Institutions & Data Centers
Offers smooth pedestrian flow management in high-traffic areas such as luxury malls, retail centers, and entertainment venues. Enhances security by allowing only validated visitors through integrated access systems.
Commercial Complexes & Shopping Malls
Hospitals and medical centers can use the Arc Speed Gate HF-ST04 to restrict access to sensitive areas, ensuring patient privacy and security. Laboratories and research institutes benefit from controlled access to prevent unauthorized personnel from entering restricted zones.
Healthcare Facilities & Research Institutes
Enhances security and efficiency in places with high passenger volume. Can be integrated with ticketing and access control systems for seamless entry management.
Airports, Metro Stations & Transportation Hubs
Ideal for courthouses, municipal offices, and other government institutions where strict security protocols are needed. Supports emergency mode activation, allowing safe and fast evacuation in critical situations.
Government & Administrative Buildings
product information
| Chassis material | Aluminum alloy |
| product type | speed gate |
| Working voltage | AC220±10%V 50±10%HZ |
| channel width | 600-900mm |
| Power consumption | 100W |
| Rotary rod transmission angle | 120° |
| Working environment | -40~125℃ |
| Gate opening and closing time | 0.8-1 second |
| adjustablePassing speed | 30 people/minute(normally open),25-30 people/minute(normally closed) |
| The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Control technology | Speedgate’s new multi-function self-test motherboard |
| Responding speed | 600RPM |
| Communication Interface | Standard RS485 interface, distance＜1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
| Use/storage temperature | 45°C/-20°C~55°C |
| Use/storage temperature | 40%~80%/0%~90% (no condensation) |
| Noise | ＜50DB |
| Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -20°C~50°C |
| Storage temperature | -20°C~50°C |
| Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
Speed gates offer a wide range of control system options, making them adaptable to various environments and existing access control setups. Whether you need biometric integration, card-based systems, or mobile solutions, speed gates provide the flexibility and security you need.
Fingerprint Scanners: Compatible with most fingerprint recognition systems for secure and personalized access.
Facial Recognition: Integrates with advanced facial recognition technology for touchless entry.
Iris Scanning: Supports high-security iris recognition systems for sensitive environments.
RFID Cards: Works with RFID technology for quick and contactless access.
NFC Cards: Compatible with NFC-enabled devices for modern, seamless entry.
QR Code Scanning: Allows access via QR codes scanned from smartphones or printed tickets.
Access Control Software: Compatible with most access control management software for centralized control.
Third-Party Systems: Easily integrates with existing biometric, card, or mobile-based systems.
Customizable APIs: Offers API support for seamless integration with custom or proprietary systems.
Mobile Apps: Integrates with mobile apps for virtual credentials and remote access control.
Anti-Tailgating Detection: Uses sensors to prevent unauthorized entry by detecting multiple people trying to pass with one credential.
Real-Time Monitoring: Provides real-time data and alerts for enhanced security and management.
Remote Control: Allows administrators to control the gates remotely via software or mobile apps.
Modular Design: Can be expanded or upgraded to support new technologies as needed.
Multi-Device Compatibility: Works with a wide range of biometric, card, and mobile systems for future-proof solutions.
Our turnstiles are securely packed in wooden crates, designed to withstand the rigors of transit. Efficient, reliable, and built to protect—your order is in safe hands.
Related Products
Frequently Asked Questions
What materials is the HF-ST04 Speed Gate made of?
The HF-ST04 Speed Gate is constructed with a durable aluminum alloy chassis and features an anodized finish, making it resistant to corrosion, scratches, and wear.
Can the speed gate be used in outdoor environments?
Yes, the HF-ST04 Speed Gate is weather-resistant, making it suitable for both indoor and outdoor installations.
Does it prevent unauthorized access?
Yes, the speed gate is equipped with anti-tailgating and anti-reverse features to ensure that only one person passes at a time, preventing unauthorized access.
What authentication methods does the speed gate support?
The HF-ST04 supports various authentication methods including facial recognition, fingerprint scanning, IC cards, QR codes, and NFC.
How fast is the operation of the HF-ST04 Speed Gate?
Quickly and smoothly, allowing for fast access and efficient movement of users, ideal for high-traffic areas.
How does the speed gate ensure safety?
The HF-ST04 has built-in sensors to detect obstacles and ensure safe passage, while the automatic reset function helps maintain security.
