Arc double door turnstile HF-FH09
The Arc Double Door Turnstile HF-FH09 is a state-of-the-art access control solution designed to deliver both security and efficiency in high-traffic environments. With its sleek, arc-shaped design and dual-door configuration, this turnstile ensures smooth pedestrian flow while maintaining robust security. Built with premium materials and advanced technology, the HF-FH09 is perfect for applications in office buildings, transportation hubs, stadiums, and public venues. Its anti-tailgating and anti-reverse features prevent unauthorized access, while the power-off release function ensures safe evacuation during emergencies. Combining durability, modern aesthetics, and high performance, the HF-FH09 is the ideal choice for managing access in demanding settings.
our factory
Take a look at our factory in action! Here’s a glimpse of our team carefully packaging theArc double door turnstile HF-FH09 , ensuring it arrives at your doorstep in perfect condition. From meticulous quality checks to secure packaging, every step reflects our commitment to delivering excellence.
Sophisticated Half Arc Design
- A stylish, space-efficient structure that enhances the modern look of any facility while maintaining high security.
Durable Stainless Steel Construction
- Built with 304 stainless steel, ensuring corrosion resistance, stability, and long-lasting durability for indoor and outdoor environments.
Fast & Adjustable Access Control
- Opening/closing speed adjustable (0.8-1 second) to manage pedestrian flow effectively.
- Supports up to 30 persons per minute, ensuring smooth entry for high-traffic locations.
Automatic Unlock in Power Failure
- Enhances safety and emergency evacuation by automatically unlocking during power outages.
Anti-Backflow Security Mechanism
- Prevents unauthorized reverse passage, ensuring one-way controlled access.
Seamless Integration with Smart Access Systems
- Compatible with RFID, fingerprint recognition, facial recognition, QR code scanning, and other security authentication methods.
Product display
product information
| Chassis material | SUS304 stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | 100W |

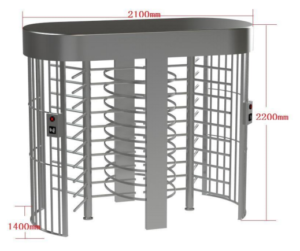

| Dimensions | L1400*W2100*H2200mm |
Rotary rod transmission angle | 120° |
Rotary rod direction | one-way or two-way |
| Working environment | -10℃～70℃ |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute(normally open),25-30 people/minute (normally closed) |
The time required to enter the pass state after powering on | 2 seconds |
| Normal service life | Continuous rotation more than 5 million times |
| Gate opening angle | 90±5 |
| Noise | <50DB |
| Communication interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Input interface | Relay switching signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
Control technology | Advanced motion drive algorithm technology |
Responding speed | 600RPM |
Communication Interface | Standard RS485 interface, 232 protocol, distance ≤1200 meters |
| Indication function | Red (alarm), green (work) indicator light |
Use/storage temperature | 45°C/-20°C~55°C |
Use/storage temperature | 40%~80%/0%~90% (no condensation) |
Noise | ＜50DB |
Vibration/impact resistance | 4.9m/s²/19.6m/s² |
| Altitude | ＜1000m |
| Atmospheric pressure | 86/106kpa |
| Voltage | DC5v±0.25 |
| Current consumption | 150mA |
| Responding speed | 600RPM |
| Output way | ZPulse |
| Operating temperature | -40°C~125°C |
| Storage temperature | -40°C~125°C |
Vibration resistant | 49m/s |
| Impact resistance | 980m/s |
| Operating Voltage | DC24V |
| Power | 100W |
| Torque | 100Nm |
| Swing arm | 304 Stainless Steel |
| Material | 304 Stainless Steel |
| Thickness | 8-12mm |
| Length | 1400mm |
| Double-Door Design | Enhances security and improves access control efficiency. |
| High Durability | Made from high-quality stainless steel for long-lasting performance. |
| Smooth & Fast Passage | Supports high traffic flow with a speed of 30 people per minute. |
| Anti-Tailgating System | Prevents unauthorized entry with intelligent detection. |
| Fail-Safe Mechanism | Automatically unlocks during power failure for emergency evacuation. |
| RS485 Communication Interface | Ensures seamless integration with access control systems. |
| Weather-Resistant | Designed for both indoor and outdoor use, operating in extreme temperatures (-40℃ to 70℃). |
| Adjustable Gate Speed | Opening/closing time can be customized (0.8-1 second). |
| Multiple Access Methods | Supports card, biometric, and remote control access. |
| Versatile Applications | Ideal for corporate buildings, transportation hubs, stadiums, and high-security areas. |
| Corporate Offices |
| Business Centers |
| Government Buildings |
| Airports |
| Transportation Hubs |
| Universities |
| Educational Institutions |
| Stadiums |
| Event Venues |
| Industrial Facilities |
| Warehouses |
| Residential |
| Commercial Complexes |
| Healthcare Facilities |
| Financial Institutions |
| High-Security Zones |
Warranty and maintenance | We can provide warranty and maintenance for our products within a certain period of time. |
| Usage training | Provide user manuals and instructional videos, as well as online training |
Support technology development | our engineers to support during your development, and there is developing guide provided |
| Customized services | Customized according to customer needs |
- Available in free passage, one-way, and two-way access modes.
- Constructed from brushed stainless steel, ensuring strength, rigidity, rust resistance, and durability.
- Features an automatic hydraulic buffer system for smooth, noise-free, and impact-free operation.
- Anti-tailgating design – allows only one person per access card.
- Compatible with various access control systems, including RFID cards, fingerprint recognition, facial recognition, and QR codes.
- Can be controlled via external buttons or remote controllers.
- High security – meets fire escape requirements and automatically unlocks during power failure.
- Suitable for both indoor and outdoor environments

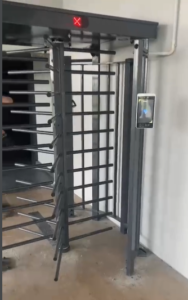

“Here’s a great example of our Full-Height Turnstile in use.
Shared by one of our valued customers! This installation provides a secure and efficient access control solution, ensuring only authorized individuals can pass while preventing unauthorized entry. With its durable stainless steel construction, anti-tailgating design, and seamless integration with RFID, fingerprint, facial recognition, and QR code systems, it delivers reliable performance in both indoor and outdoor environments. We appreciate our customer’s trust in our solutions and look forward to bringing enhanced security to more businesses worldwide!”
The Full-Height Turnstile is an ideal security solution for corporate offices, stadiums, government buildings, and high-risk areas, ensuring controlled access with maximum efficiency.
FAQ Schema
The HF-FH09 is designed for efficient pedestrian flow, supporting a high throughput to meet the demands of medium to high-traffic areas.
The HF-FH09 is equipped with a power-off release function, allowing the turnstile to open automatically for safe passage during emergencies or power failures.
Yes, the HF-FH09 is designed for quick and straightforward installation, minimizing downtime and ensuring a hassle-free setup process.
The HF-FH09 is ideal for a wide range of settings, including corporate offices, gyms, schools, public transportation hubs, and other medium to high-traffic areas.
Yes, the HF-FH09 is built with weather-resistant materials, making it durable and reliable for both indoor and outdoor environments.
Absolutely. The HF-FH09 is compatible with RFID, biometric systems (fingerprint, facial recognition), and card readers, offering seamless integration with your current setup.
Yes, its smooth 90-degree rotation and robust design ensure controlled access, effectively preventing tailgating and unauthorized entry.
Product display
