The HF-ST02 is a high-performance speed gate designed to provide fast, efficient, and secure pedestrian access in high-traffic environments. Its chassis is crafted using an aluminum alloy oxidation process. Perfectly suited for locations such as corporate offices, public transportation hubs, and commercial buildings. With over 20 years of manufacturing experience, we offer dependable and flexible access control solutions—supporting both OEM and ODM services to accommodate diverse project needs. The HF-ST02 integrates effortlessly with various advanced access control systems, making it a reliable and intelligent choice for modern facility management.
Our Products

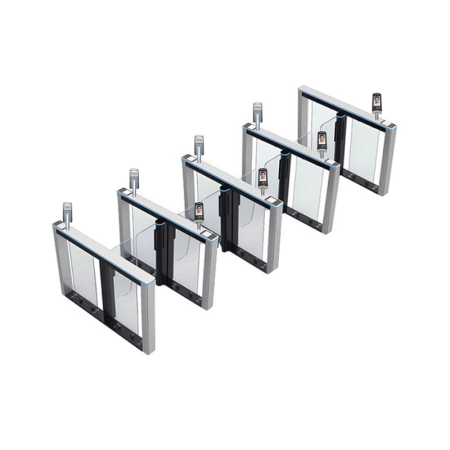

This product is a next-generation access control solution engineered for fast, secure, and seamless pedestrian flow. Featuring a refined design with a chassis crafted through an aluminum alloy oxidation process, it combines durability with a lightweight structure and modern aesthetics. With fast opening/closing speed, silent operation, and strong anti-tailgating capabilities, this gate ensures a smooth user experience while maintaining strict access control. It is fully compatible with a variety of authentication methods, including RFID, QR code, and biometric systems, making it a smart choice for integrated and customizable access management.
| power supply | AC220V±20%V，50Hz |
| Working temperature | – 40℃～70℃ |
| Relative humidity | less than 95%, no condensation |
| Passing speed | 30 people/minute (IC card) |
| Input interface | standard switch signal |
| Communication interface | RS485 electrical standard |
| Communication distance | <1200 meters |
| Chassis material | Aluminum Alloy |
| Power-off gate opening function | After power failure, the gate lever will automatically unlock and become a free passage mode, which is convenient for evacuating people |
| Anti-rotation function | After the gate bar is rotated to a certain angle, strong reverse rotation of the gate bar will be regarded as reverse driving, and the system will automatically lock to prevent pedestrians from reverse driving |

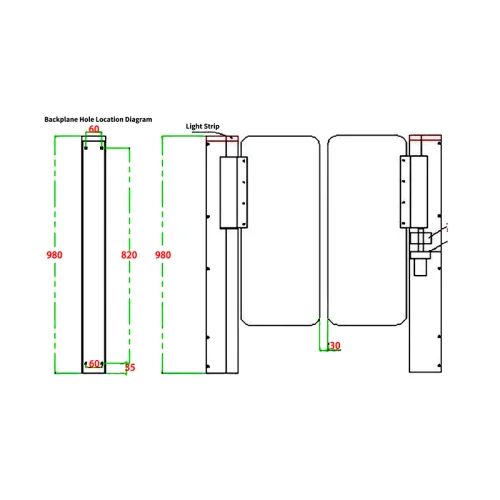

| Physical Dimensions(mm) | L1400*W120*H980mm |
| Box material: Chassis material | Chassis material:Aluminum alloy oxidation process, cover steel 3.0MM thick / side body 2.0mm thick |
| Swing arm length | 600-900mm |
| Gate opening and closing time | 0.8-1 second adjustable |
| Passing speed | 30 people/minute (normally open), 25-30 people/minute (normally closed) |
| Application environment | Indoor |
| Operating temperature | -40~125℃ |
| Working humidity | ≤90%, no condensation |
| Power supply | AC220V±， 50Hz |
| Communication interface | standard RS485 interface, distance ≤ 1200 meters |
To ensure product integrity during transportation, each HF-ST02 speed gate is packaged using a multi-layer protection system. The gate components are individually wrapped with shock-absorbing and moisture-resistant materials, then packed into sturdy, export-grade wooden crates. This minimizes the risk of damage from impact or environmental factors during long-distance shipping. Clear labeling and modular packing design simplify unloading and installation on site. Logistics arrangements are made based on project schedules and delivery locations, with coordinated shipping processes in place to ensure safe and timely arrival.
